2004-2009 Toyota Prius Door Mirror: Diagnosing Failures and Replacement Guide

Symptoms of a Failing Door Mirror

When the passenger-side mirror on a 2004-2009 Prius begins to fail, the symptoms are usually straightforward. Diagnosing the issue correctly can help you determine if you need a new assembly, or if the problem lies with a switch or fuse.

1. Power Adjustment Fails or Works Intermittently

The most common failure is related to the internal electric motor. You might experience one of the following:

• No response: When you operate the control switch, the mirror glass does not move at all, and you don't hear any sound from the mirror housing. This could point to a dead motor, a bad switch, or a blown fuse.
• Jerky or slow movement: The mirror moves in stuttering motions or is very slow to respond to the switch. This often indicates the motor is wearing out.
• Motor noise but no movement: You can hear the motor whirring or grinding inside the housing, but the glass doesn't adjust. This suggests a mechanical failure inside the assembly, such as a broken gear.

2. Heated Mirror Function Stops Working

The mirror for this Prius generation is equipped with a heating element to defrost the glass. If the passenger mirror remains foggy or icy while the driver's side clears, the heating element in the passenger mirror has likely failed. This typically requires replacing the entire mirror assembly.

3. Physical Damage or Loose Assembly

Physical damage is a clear reason for replacement. Look for:

• Cracked or broken mirror glass: This significantly reduces visibility and is a safety hazard.
• Cracked or damaged housing: The plastic casing can become brittle over time or break from an impact. This can allow water to enter and damage the internal electronics.
• Loose or vibrating mirror: If the entire assembly is loose where it mounts to the door, or if the glass vibrates excessively while driving, the mounting bolts may be loose or the internal structure could be damaged.

Known Issues, Recalls, and TSBs

As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Toyota or the National Highway Traffic Safety Administration (NHTSA) for the door mirrors on the 2004-2009 Toyota Prius. While major recalls were issued for this generation for the steering shaft and water pump, the mirrors have proven to be reliable. The most common issues are related to normal wear, electrical motor failure, or physical damage from impacts.

Buying a Used 2004-2009 Prius Door Mirror

A used OEM mirror is often a smart choice, offering better fit and quality than cheap aftermarket alternatives. However, you need to know what to look for to ensure you get a good part.

Inspection Checklist:

• Verify Compatibility: The passenger-side power, heated mirror assembly fits all 2004-2009 Toyota Prius models, from the base to the Touring trim. The key part numbers are 87910-47100 and the superseding number 87910-47101.
• Inspect the Mirror Glass: Check for any cracks, deep scratches, or browning/discoloration, which could indicate a faulty heating element.
• Check the Housing: Look for cracks, especially around the three mounting studs where the mirror attaches to the door. Stress cracks here are a major red flag.
• Examine the Painted Cover: The outer cover is a separate piece that is painted to match the car's body color. It's common for these to have cosmetic flaws like peeling clear coat or scratches. This is not a deal-breaker, as you can easily swap the cover from your old mirror onto the replacement.
• Test the Swivel: The mirror should fold towards the vehicle with firm resistance and hold its position. If it's loose and floppy, the internal pivot mechanism is worn out.
• Inspect the Electrical Connector: Look at the pins inside the electrical plug. They should be straight, clean, and free of any green or white corrosion.

Replacement Overview (DIY Difficulty: 2/5)

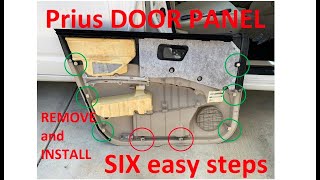

Replacing the passenger-side mirror is a straightforward job that most DIYers can complete in under an hour with basic tools. The process involves 🎬 See a detailed walkthrough of the door panel removal process. removing the interior door panel to access the mirror's connector and mounting nuts.

Required Tools:

• 10mm socket with ratchet
• Phillips head screwdriver
• Plastic trim removal tools

Step-by-Step Process:

1. Remove Interior Trim: Start by prying off the small triangular trim piece at the top corner of the door (the sail panel/tweeter speaker cover).
2. Remove Door Panel Screws: Locate and remove the Phillips head screws holding the door panel. There is one behind a small cover in the door handle cup and another in the armrest pull handle.
3. Pry the Door Panel Off: Use a trim tool to carefully pop the clips holding the perimeter of the door panel to the door frame. Start from the bottom and work your way around.
4. Lift and Disconnect: Lift the door panel up and off the window ledge. You don't have to remove it completely. Disconnect the mirror's main electrical connector, which will now be accessible.
5. Unbolt the Old Mirror: While holding the outside of the mirror to prevent it from falling, use a 10mm socket to remove the three nuts holding it to the door.
6. Install the New Mirror: Guide the new mirror's wiring through the hole and hand-tighten the three 10mm nuts. Ensure the foam gasket is properly seated to prevent water leaks. Torque the nuts down, but do not overtighten.
7. Reconnect and Test: Plug in the electrical connector and turn the car's power on to test the mirror's power adjustment and heat functions before reassembling the door.
8. Reassemble: Re-hang the door panel, press the clips back into place, reinstall the screws, and snap the corner trim piece back on.

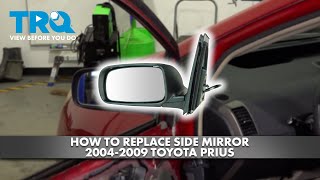

🎬 Follow this step-by-step video to replace the entire mirror assembly.

Cost Comparison

Prices for a replacement passenger-side mirror can vary significantly based on the source.

Frequently Asked Questions (FAQ)
