2006-2012 Toyota RAV4 Door Mirror: A Guide to Japan vs. North American Models and Common Failures

Variant Differences: The Most Common Point of Confusion

Before purchasing a replacement door mirror for a 2006-2012 Toyota RAV4, you must correctly identify your vehicle's specifications. Ordering the wrong part is a common and frustrating mistake. There are three main variables to consider:

1. Build Location: Japan vs. North America

Toyota produced this generation of RAV4 in different locations, and the mirror assemblies are not always interchangeable between them. The most important step is to determine if your RAV4 was built in Japan or North America (U.S. or Canada).

• If the VIN starts with 'J', your RAV4 was built in Japan.
• If the VIN starts with '2', your RAV4 was built in Canada.
• If the VIN starts with '4' or '5', your RAV4 was built in the United States.

Parts are often listed as fitting 'Japan-built' or 'North America-built' models. Be sure to order the one that matches your VIN.

2. Heated vs. Non-Heated Glass

Some RAV4 models came equipped with heated mirrors, which have a small heating element on the back of the glass to clear away frost and condensation. This feature was typically found on Limited trims or as part of a cold weather package. If your vehicle has heated mirrors, the replacement must also be a heated version to function correctly. A non-heated mirror will fit mechanically but the heating function will not work.

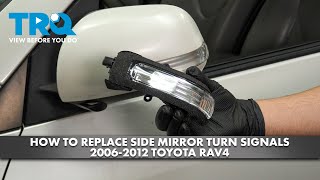

3. Integrated Turn Signal

Higher trim levels may feature a turn signal light built into the mirror housing. Mirrors with and without this feature use different wiring harnesses and are not directly interchangeable. If your original mirror has a turn signal, the replacement must have one as well. Conversely, you cannot easily add a signal mirror to a vehicle that was not originally equipped with them without significant custom wiring.

Symptoms of a Failing Door Mirror

Failures can be electrical, mechanical, or simple physical damage.

• Power Adjustment Fails: The most common failure is the internal electric motor. You may experience the mirror being slow to respond, moving in jerky motions, or not moving at all in one or more directions. Sometimes you can hear the motor running but the glass doesn't move, indicating a stripped gear inside the housing.
• No Response from Controls: If neither mirror moves and you don't hear any motor sounds, the problem could be the control switch on the driver's door panel or a blown fuse.
🎬 Watch this guide to diagnose mirror motors and switches.
• Heater Malfunction: If the mirror fails to clear frost or fog on a model equipped with heat, the internal heating element has likely burned out.
• Loose or Vibrating Mirror Glass: The adhesive holding the mirror glass to its backing plate can degrade over time, causing the glass to vibrate at speed or feel loose to the touch. While a Technical Service Bulletin (TSB T-SB-0079-20) exists for vibrating mirrors on newer RAV4s (2019-2020), it does not apply to the 2006-2012 generation.
• Physical Damage: Cracks in the housing or glass from impacts are a common reason for replacement. Damage to the housing can allow water to enter and damage the internal electronics.

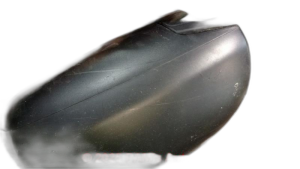

Buying a Used 2006-2012 RAV4 Door Mirror: What to Check

A used OEM mirror is often a better choice than a cheap aftermarket part, offering superior fit, plastic quality, and motor durability. Here’s what to inspect before buying.

1. Confirm Compatibility: This is the most important step. Use your VIN to determine if you need a Japan-built or North America-built part. Then, confirm the features (heated, non-heated, turn signal) match your original mirror exactly.
2. Inspect the Housing: Check the plastic housing for any cracks, deep scrapes, or signs of sun fading and brittleness. Pay close attention to the mounting points where the three bolts pass through.
3. Check the Glass: Ensure the mirror glass is free of cracks, chips, and discoloration. Gently press on the glass to make sure it isn't loose on its backing plate.
4. Examine the Electrical Connector: Look at the pins inside the electrical plug. They should be straight, clean, and free of any green or white corrosion, which would indicate water damage.
5. Ask the Seller: If possible, ask the salvage yard or seller if the mirror's power functions were tested before the vehicle was dismantled.

Known Issues, Recalls, and TSBs

There are no active recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) specifically for the door mirrors on the 2006-2012 Toyota RAV4. While several safety recalls exist for this vehicle generation concerning items like rear seatbelts and suspension, none pertain to the side mirrors.

Cost Comparison

Prices can vary based on features (heated, turn signal) and condition. The following are estimates to help you understand the value of a used part.

Replacement Guide (Difficulty: 2/5)

Replacing the door mirror on a 2006-2012 RAV4 is a straightforward job that most DIYers can complete in under an hour with basic tools. The process is the same for both driver and passenger sides.

Tools Required:

• Phillips Head Screwdriver
• Flat Blade Screwdriver or Trim Removal Tool
• 10mm Socket with Ratchet and Extension

Step-by-Step Walkthrough:

1. Remove Interior Trim: The mirror is bolted on from inside the door. You must first remove the interior door panel. This involves prying off small plastic covers behind the door handle and in the armrest pull-cup to access Phillips head screws.
2. Detach Door Panel: After removing the screws, use a trim tool to pop the clips holding the panel to the door frame, starting from the bottom. Once all clips are free, lift the panel up and off the window ledge. You may not need to fully remove the panel, but can often let it hang to gain access.
3. Disconnect Electrical Connector: Locate the mirror's wiring harness connector, press the release tab, and unplug it.
4. Unbolt the Mirror: The mirror is held on by three 10mm nuts. While supporting the mirror from the outside (having the window down helps), remove the three nuts. The mirror will now be free from the door.
5. Installation: Installation is the reverse of removal. Guide the new mirror's wiring through the door, seat the assembly, and hand-tighten the three 10mm nuts. Reconnect the electrical plug and test the mirror's functions before reinstalling the door panel. Do not overtighten the nuts, as the mirror base is plastic.
