1999-2005 Volkswagen Passat Door Mirror: A Guide to Variants, Failures, and Replacement
This guide details the common problems, key variations, and replacement costs for the B5 and B5.5 generation Volkswagen Passat door mirrors.
- Compatibility is critical. You must match the generation (B5 vs. B5.5) and features (heat, memory, power-fold, turn signal) for the mirror to fit and function correctly.
- Replacement requires removing the entire interior door panel, which is the most challenging part of the job.
- If both mirrors stop adjusting or act strangely, the problem is more likely the driver's door control switch, not the mirrors themselves.
- Replacing just the mirror glass is possible if the housing and motor are undamaged, offering a cheaper repair for broken glass.
Key Variants of the 1999-2005 Passat Door Mirror
Buying the correct mirror for a 1999-2005 Passat requires careful attention to detail, as several variations exist. The model range is split into two distinct generations: the B5 (1999-2001) and the B5.5 (2001.5-2005), which feature different mirror housing shapes and options.
- B5 (1999-2001): These models have a more rounded mirror housing. The passenger-side mirror is typically smaller than the driver-side mirror.
- B5.5 (2001.5-2005): This facelifted model introduced a more streamlined mirror housing, and many came with integrated turn signal repeaters in the lower part of the housing. The passenger-side mirror is full-sized, matching the driver's side.
Beyond the generation, you must match the specific features of the original mirror:
- Heated Glass: A common feature activated with the rear defrost, used to clear ice and fog.
- Power-Folding: An optional feature on higher trims that allows the mirrors to fold in electronically.
- Memory Function: Linked to the power seat memory, this feature automatically adjusts the mirror to a preset position for different drivers.
- Turn Signal Repeater: A light integrated into the mirror housing, primarily on B5.5 models.
- Auto-Dimming (Electrochromic): An optional feature that automatically darkens the mirror glass to reduce glare from headlights behind you.
Warning: The electrical connectors are different for mirrors with different features. A mirror with memory and power-folding will have a different plug and more pins than a basic power-adjustable, heated mirror. Always verify the connector matches before purchasing.
Common Symptoms of a Failing Door Mirror
Several signs can indicate a problem with your Passat's door mirror assembly.
- Broken or Cracked Glass: The most obvious symptom, usually caused by an impact. This severely impairs visibility and is a safety hazard.
- Mirror Won't Adjust: If the mirror doesn't respond to the control switch, it could be a failed adjustment motor, a bad switch, or a wiring issue.
- Heater Fails to Defrost: If the mirror won't clear frost or condensation when the feature is active, the internal heating element has likely failed.
- Loose or Wobbly Housing: The mirror assembly may feel loose or vibrate excessively while driving. This can be caused by a broken internal mounting point or a failure of the pivot mechanism.
- Turn Signal Not Working: On B5.5 models, the integrated turn signal may stop flashing due to a burnt-out bulb/LED or a wiring problem within the housing.
- Power-Folding Failure: The mirror may not fold or unfold electronically, pointing to a problem with the folding motor or the control module.
Buying a Used 1999-2005 Passat Door Mirror: What to Check
Purchasing a used OEM mirror is often a cost-effective solution, but careful inspection is key to getting a good part.
Verify Compatibility First
This is the most critical step. Before buying, confirm that the used mirror has the exact same features as your original. Check for power-folding, memory, heating, and integrated turn signals. Ask the seller for a photo of the electrical connector to compare the pin count and plug shape with your original part. An incorrect connector is a sure sign of incompatibility.
Physical Inspection Checklist
- Glass Condition: Inspect the mirror glass for any cracks, chips, or deep scratches. For auto-dimming mirrors, check for a 'bubbled' or discolored appearance, which indicates failure of the electrochromic fluid.
- Housing and Cap: Check the main housing for cracks or significant damage. The outer cap is often painted to match the car; check for deep scratches or damage.
- Pivot Joint: Manually fold and unfold the mirror. It should move smoothly but hold its position firmly. A loose, floppy mirror will not stay adjusted while driving.
- Turn Signal Lens (B5.5): On models with integrated signals, inspect the lens for cracks or moisture intrusion, which can damage the electronics inside. 🎬 Watch: How to swap out the integrated turn signal lights.
- Wiring and Connector: Examine the wiring harness for any cuts, frays, or damaged pins on the connector.
Cost Comparison: New vs. Used Passat Mirrors
Prices can vary significantly based on the mirror's features and condition.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $250 - $450+ |
| New Aftermarket | $50 - $150 |
| Used OEM | $40 - $120 |
| Shop Labor | $100 - $180 |
Door Mirror Replacement Overview
Replacing the door mirror on a B5/B5.5 Passat is a moderately difficult task for a DIYer, primarily because it requires removing the interior door panel.
- Remove Door Panel: This involves removing screws from the door pull handle and under the bottom edge of the panel, then carefully prying the panel off its clips.
- Disconnect Wiring: The door panel has several electrical connections for the window switch, speaker, and courtesy light that must be disconnected. The mirror's main electrical connector is located behind the small speaker in the upper corner of the door.
- Unbolt the Mirror: With the panel off and connector unplugged, remove the single T45 Torx bolt that holds the mirror assembly to the door frame. Be sure to support the mirror from the outside as you remove the bolt to prevent it from falling. 🎬 Watch this step-by-step guide on replacing the mirror assembly.
- Installation: Installation is the reverse of removal. Feed the new mirror's wiring through the door, tighten the mounting bolt, reconnect the electrical plug, and reinstall the door panel.
Pro Tip: When removing the door panel, the interior door handle release cable must be unhooked. Pay close attention to how it attaches, as re-installing it correctly is crucial for the door to open from the inside.
Known Issues, Recalls, and Service Bulletins
While there are no specific recalls for the door mirrors themselves, the 1999-2005 Passat was subject to a major recall (NHTSA Campaign ID 08V156000) for issues related to underbody heat shields and potential fuel leaks. There are no Technical Service Bulletins (TSBs) directly related to widespread door mirror failure. Most issues are isolated cases of component failure due to age or damage. However, forum discussions frequently mention failure of the master window switch on the driver's door, which can sometimes be mistaken for a mirror motor problem. If neither mirror adjusts, the switch is a likely culprit.
Frequently Asked Questions (FAQ)
Can I replace just the broken mirror glass?

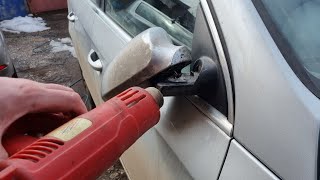

Yes, if only the glass is broken and the housing and motor are fine, you can often replace just the glass. The glass is attached to a plastic backing plate that snaps into the motor assembly. You can carefully pry the old glass off and snap a new one in place, making sure to reconnect the two small wires for the heating element if equipped.
🎬 See how to quickly replace just the mirror glass.My mirror moves when I adjust the opposite side. Is it broken?
This can be a sign of a failing adjustment switch on the driver's door. The switch may be internally shorting, sending power to both mirrors when only one is selected. Replacing the switch assembly often resolves this issue.
Why is my passenger mirror smaller than my driver's side mirror?
This is normal for the B5 generation Passat (1999-2001). For the North American market, these models were designed with a smaller, stubbier passenger-side mirror. The B5.5 facelift (2001.5-2005) models have two full-size mirrors.
Do I need to get the mirror programmed after installation?
No. For the 1999-2005 Passat, the door mirrors are not programmed to the vehicle. As long as you install a mirror with the correct features and connector, it should work immediately after being plugged in. The memory function is controlled by the seat control module, not the mirror itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3B0857538B 3B1857507AA01C 3B1857507L01C 3B1857507M 3B1857507T01C 3B1857508 3B185750801C 3B1857508AT 3B1857508AT01C 3B1857522 3B1857522C 3B1857538BGRU 6N1857522C 3B1857508BA01C
Held in place by a single T45 Torx bolt. Electrical connector pin count varies by features (e.g., 9-pin, 12-pin).
