2004-2010 VW Passat Door Mirror: Navigating B5.5 vs. B6 Generations and Options
Don't buy the wrong mirror; this guide explains the critical differences between the 2004-2005 (B5.5) and 2006-2010 (B6) Volkswagen Passat mirrors and their complex options.
- The single most important factor is identifying your car: 2004-2005 (B5.5) and 2006-2010 (B6) mirrors are NOT interchangeable.
- You must match all features (heat, memory, power-folding, turn signal) exactly for the replacement mirror to function correctly.
- Buying a used OEM mirror is the most cost-effective option, providing factory quality for a much lower price than a new dealer part.
- Common failures include broken glass, non-working power adjust motors, and failed LED turn signals on B6 models.
Critical Alert: B5.5 vs. B6 Generation Difference
Warning: The 2004-2010 year range for the Volkswagen Passat covers two completely different vehicle generations that do not share parts. The mirrors are NOT interchangeable between them. Ordering the wrong generation will result in a part that does not fit physically or electrically.
- 2004-2005 Passat (B5.5 Generation): These mirrors have a more rounded shape and do not have an integrated turn signal in the housing. Part numbers for this generation typically start with '3B'. 🎬 Watch: Step-by-step mirror replacement for the B5.5 generation.
- 2006-2010 Passat (B6 Generation): This is a full redesign. These mirrors have a more angular shape and feature a prominent turn signal repeater light built into the housing. Part numbers for this generation typically start with '3C'.
Always confirm your vehicle's generation before purchasing a mirror.
Symptoms of a Failing Door Mirror
A bad door mirror can present several symptoms, ranging from minor annoyances to serious safety concerns.
- Cracked or Broken Mirror Glass: The most common failure is physical damage to the glass itself, which distorts the view and can be a safety hazard.
- Power Adjustment Failure: The mirror may not respond to the control switch, move erratically, or get stuck in one position. This can be caused by a failed motor, a bad switch in the door, or damaged wiring.
- Wobbly or Vibrating Mirror: The mirror glass may vibrate excessively at speed, making it difficult to see. This is often caused by the glass separating from its plastic backing plate or a loose internal mechanism.
- Heated Mirror Inoperative: The heating element on the back of the glass fails, preventing it from clearing frost or condensation. You can test this by feeling the mirror surface for warmth after activating the rear defrost.
- Turn Signal Failure (B6 Models): The integrated LED turn signal in the mirror housing may stop working. This is a common issue and can be caused by failed LEDs or water intrusion.
- Power-Folding Failure: On models equipped with this feature, the mirror may not fold or unfold when commanded, often due to a failed motor or internal damage.
- Loose Mirror Housing: The entire assembly may feel loose or wobble where it mounts to the door, usually due to impact damage or a loose mounting bolt.
Buying a Used 2004-2010 Passat Door Mirror
Purchasing a used OEM mirror is often the best value, providing factory fit and quality at a fraction of the price of a new dealer part. However, due to the high number of variations, careful selection is crucial.
Step 1: Confirm Your Passat Generation
As stated above, this is the most important step. A 2005 B5.5 mirror will not fit a 2006 B6 Passat. Visually confirm your vehicle's body style and mirror shape before searching for parts.
Step 2: Match the Features Exactly
A mirror that looks correct but has the wrong features will not work properly. The electrical connector is keyed to the functions it supports. You must match your original mirror's features:
- Side: Left (Driver) or Right (Passenger).
- Heated Glass: Most North American models are heated. The glass will have a small heating symbol.
- Memory Function: This is linked to vehicles with memory seats. If your car doesn't have memory seats, a memory mirror may not function correctly, and vice-versa.
- Power Folding: A less common, premium feature. If your mirror doesn't fold with the push of a button, you don't have this option.
- Turn Signal Repeater: Standard on B6 (2006-2010) models. Not present on B5.5 models.
- Puddle Lamp: A small light on the bottom of the mirror housing that illuminates the ground. Part of an optional lighting package.
- Auto-Dimming (Electrochromic Glass): The glass will have a slight blue tint and a visible border around the edge. This was an option on higher trims.
Pro Tip: The best way to ensure compatibility is to compare the electrical connector on the used part with your original. Count the number of pins and check the connector's shape. Ask the seller for a clear photo of the connector if you are buying online.
Step 3: What to Inspect on a Used Mirror
- Housing and Cap: Check for cracks in the main black plastic housing. The painted cap can be swapped from your old mirror, but check it for deep scratches or broken tabs.
- Glass: Ensure the glass is not cracked, discolored, or separating from the black plastic backing plate.
- Wiring and Connector: Look for any cut wires, corrosion, or damage to the connector pins.
- Pivot Point: If possible, check that the mirror pivot is not overly loose or seized.
Known Issues, Recalls, and TSBs
No Recalls: As of early 2026, there are no specific NHTSA safety recalls for the door mirror assemblies on 2004-2010 Volkswagen Passats. However, there were other recalls for these vehicles, so it is always wise to check your VIN for any open campaigns. B6 Turn Signal Failure: The LED turn signal strip in the 2006-2010 B6 mirrors is a known failure point. Water can get inside and corrode the circuit board, causing the light to stop working. Replacement requires disassembling the mirror housing. 🎬 See how to replace the B6 mirror turn signal LED. Glass Separation: On both generations, the adhesive holding the mirror glass to the plastic backing plate can fail over time, causing the glass to vibrate or even fall off completely. If caught early, it can be re-glued, but often a new mirror glass piece is the best solution.
Installation Guide
Replacing the door mirror is a manageable DIY project for those with basic tools.
Difficulty: 2.5 out of 5
Estimated Time: 1-1.5 hours per side.
Tools Required: Plastic trim removal tools, Torx bit set (T20, T25, T45), flathead screwdriver.
General Steps:

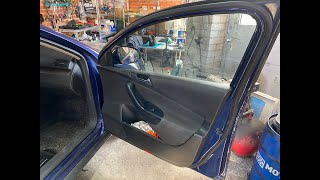

- Remove the interior door panel. 🎬 Watch this guide to safely removing the front door panel. This typically involves prying off the door handle trim, removing several Torx screws (under the handle and at the bottom of the panel), and then carefully popping the panel's clips loose from the door frame.
- Once the panel is loose, disconnect the inner door handle cable and various electrical connectors for the window switch, speaker, and courtesy light.
- Peel back the foam or plastic weather barrier to access the mirror's electrical connector and mounting bolt.
- Disconnect the mirror's wiring harness.
- While supporting the mirror from the outside to prevent it from falling, remove the single large T45 Torx bolt holding it to the door.
- Installation is the reverse of removal. Be careful to reconnect all electrical connectors before re-installing the door panel.
Pro Tip: Before fully reassembling the door panel, plug in the new mirror and test all its functions (adjustment, heat, signal, etc.) to ensure it works correctly.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $950 - $1150 |
| New Aftermarket | $70 - $230 |
| Used OEM | $60 - $175 |
| Shop Labor | $120 - $180 |
Frequently Asked Questions (FAQ)
Can I just replace the mirror glass instead of the whole assembly?
Yes. If only the glass is broken or the heating element has failed, you can often replace just the glass piece. The glass is held onto the motor assembly by clips. You carefully pry the old one off and snap the new one on. This is much cheaper than replacing the entire unit.
My Passat doesn't have power-folding mirrors. Can I install them?
This is a complex upgrade. In addition to the mirrors themselves, you would need the correct door control modules and the power-folding mirror switch. It may also require coding changes to the vehicle's computer. It is not a simple plug-and-play swap.
Do I need to get the mirror painted?
The mirror assembly consists of the main black housing and a separate painted cap. You can usually transfer the painted cap from your old mirror to the new one, provided it is not damaged. The cap is held on by several clips. If your old cap is damaged, you will need to have the new one painted to match your vehicle's color.
Why does my new (used) mirror move when I adjust the other side?
This can sometimes happen if a mirror from a different market (like Europe) is installed, as they can have a feature that tilts both mirrors together. More commonly, it's a sign of a failing mirror control switch in the driver's door, which is shorting the circuits.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3B1857507AA01C 3B1857507L01C 3B1857507M 3B1857507T01C 3B1857508 3B185750801C 3B1857508AT 3B1857508AT01C-PFM 3B1857522 3B1857522C 3B0857538B 3B1857538B 3B1857538BGRU 3C1857507DP9B9-PFM 3C1857508CK9B9
Required Tools: Plastic trim removal tools, T20, T25, T45 Torx bits.
