2004-2016 BMW 5-Series, 6-Series Axle Shafts: Decoding Diameters and Drivetrains

Symptoms of a Failing Drive Axle Shaft

A failing axle shaft provides several distinct warnings. Ignoring these can lead to a complete failure, where the vehicle will lose power to the wheels and be left stranded.

1. Clicking or Popping Noise When Turning

This is the most common symptom of a worn outer CV joint. The noise is most noticeable during sharp, low-speed turns, such as in a parking lot. It sounds like a rhythmic clicking or popping that corresponds with wheel speed. Generally, if you hear the noise when turning left, the right-side axle is the culprit, and vice-versa, as the outer wheel travels a greater distance and puts more stress on the joint.

2. Vibration While Driving, Especially Under Acceleration

A vibration or shudder that is most prominent during acceleration is a classic sign of a failing inner CV joint. This vibration can often be felt through the floor or seats. Unlike a tire imbalance that may be felt at all times or only at specific highway speeds, a bad inner CV joint vibration is directly related to engine load and torque.

3. Clunking or Knocking Sound

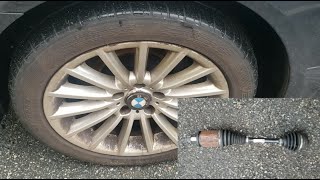

A clunking or knocking sound when you accelerate, decelerate, or shift between drive and reverse 🎬 Watch this step-by-step BMW 535i xDrive axle replacement can indicate excessive play in the CV joints. This sound is caused by the worn internal components of the joint slamming together as the rotational force changes direction.

4. Grease on the Inner Edge of the Wheel or Undercarriage

The CV joints are protected by rubber boots filled with grease. If a boot tears or cracks, this grease will be slung out by the rotating axle. You may notice a splatter pattern of dark, heavy grease on the inside of your wheel, on suspension components, or on the underbody of the car. Once the grease is gone, dirt and moisture can enter the joint, rapidly accelerating wear.

Vehicle-Specific Information and Known Issues

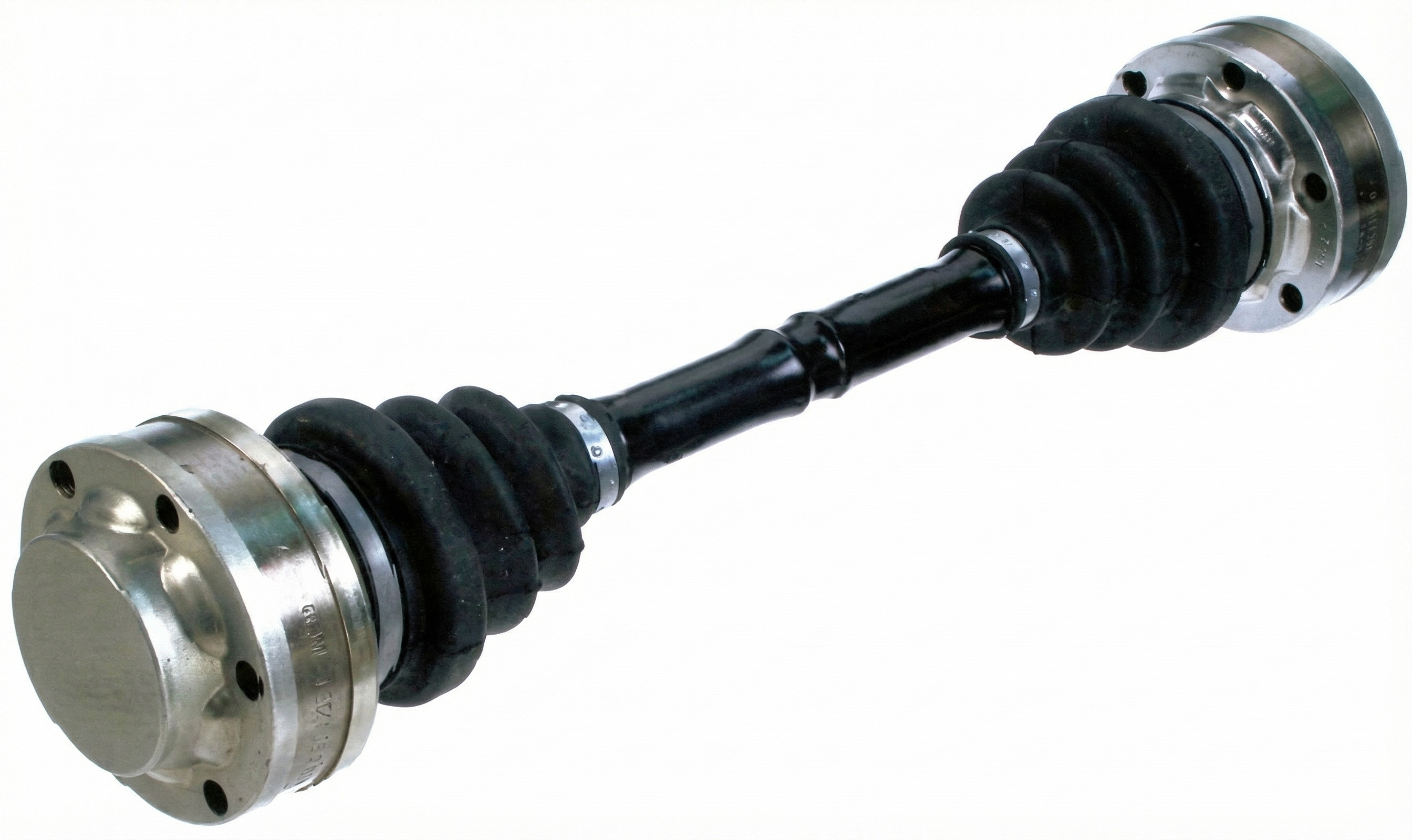

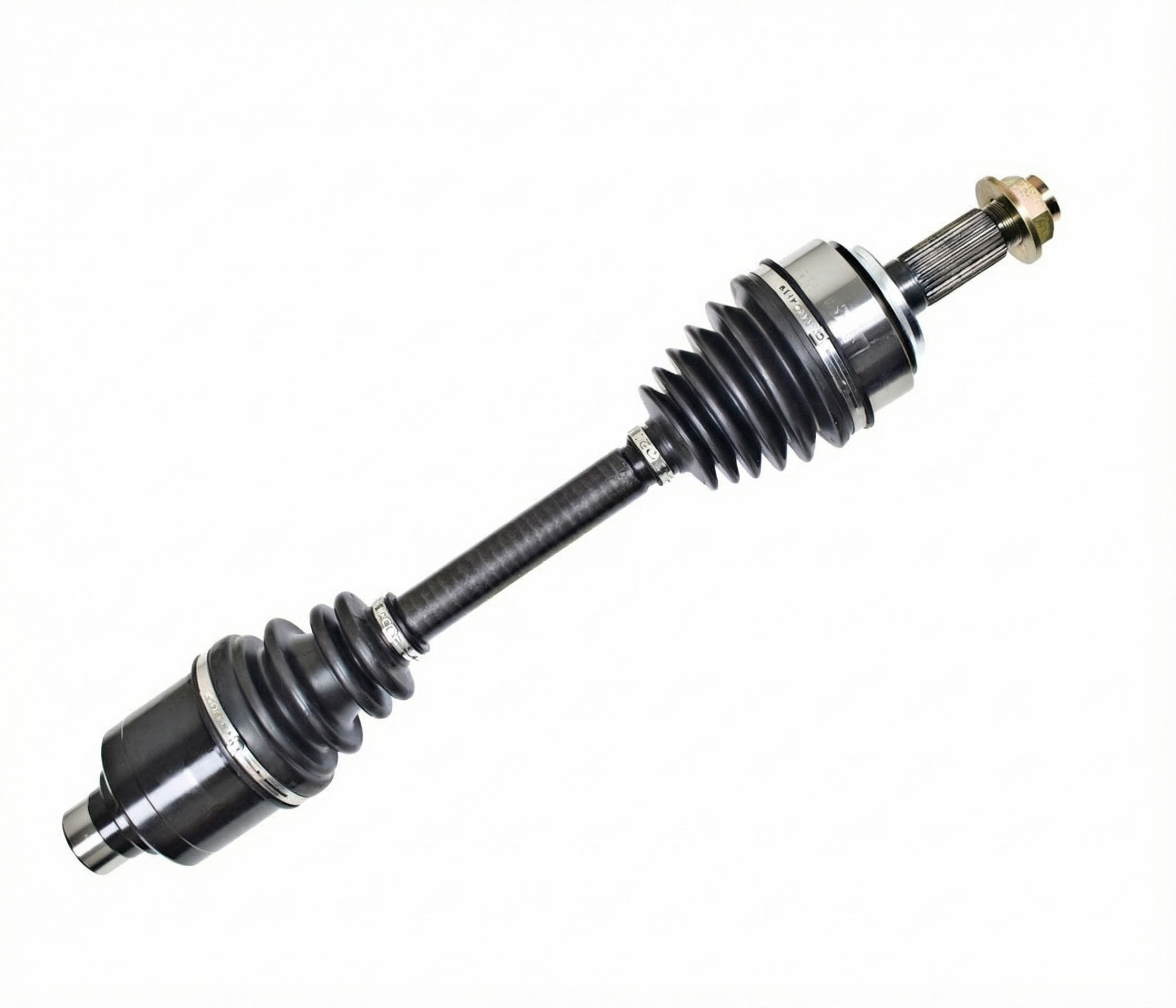

This drive axle shaft fits a range of BMWs, including the 2004-2007 BMW 525i, 2006-2007 BMW 525xi, 2004-2007 BMW 530i, 2008-2016 BMW 528i, 2008-2016 BMW 535i, 2014-2016 BMW 535d, and the 2014 BMW 640i. While the failure symptoms are similar, there are some platform-specific considerations.

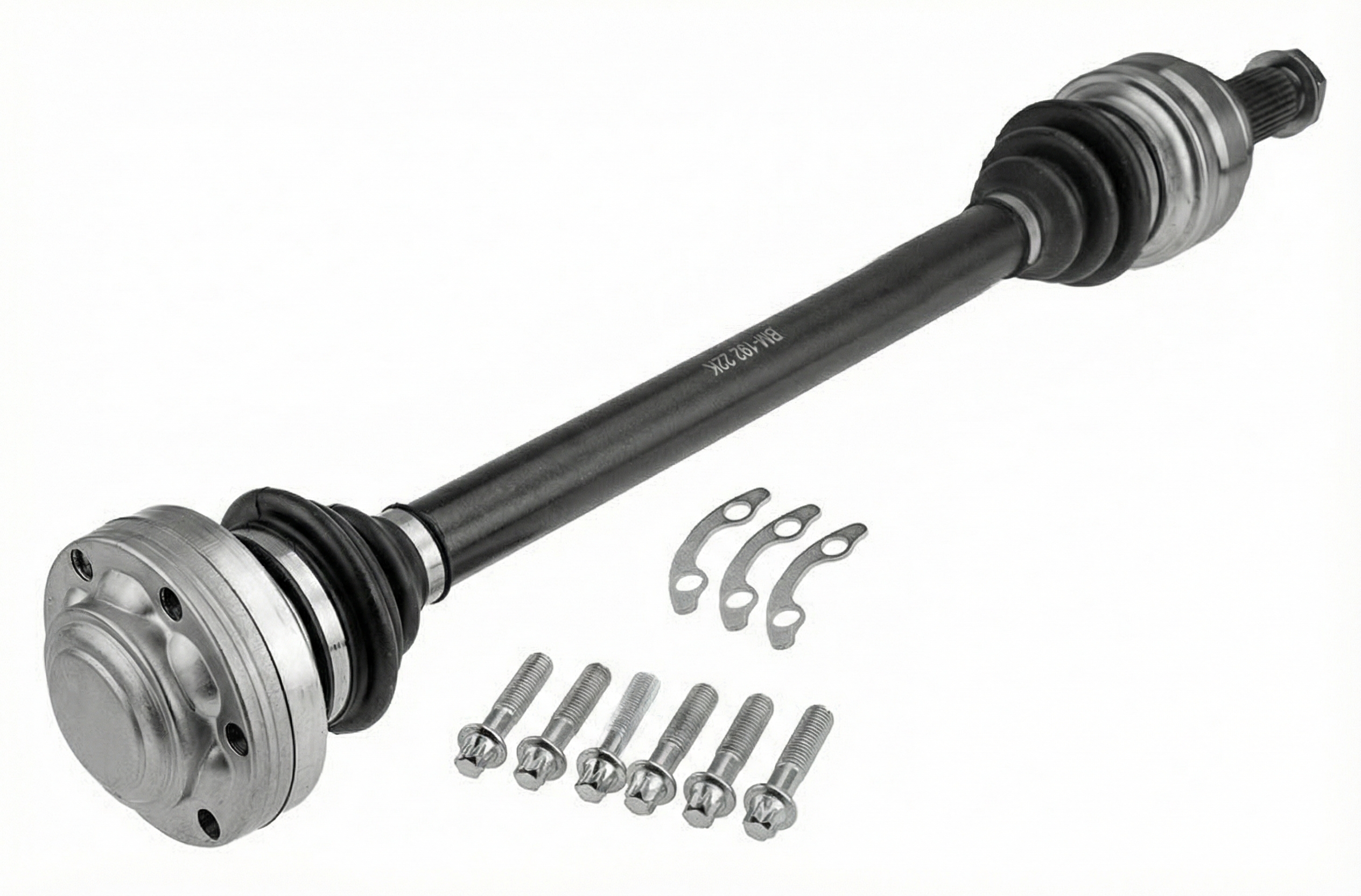

E60 Generation (2004-2007 5-Series)

For the 525i and 530i (RWD models), rear axle failure is typically due to age, mileage, and torn boots. For the 525xi (AWD model), the front axles are also a common wear item, exhibiting the same clicking and vibration symptoms. Problems with the transfer case can sometimes be misdiagnosed as an axle issue, so proper diagnosis is key.

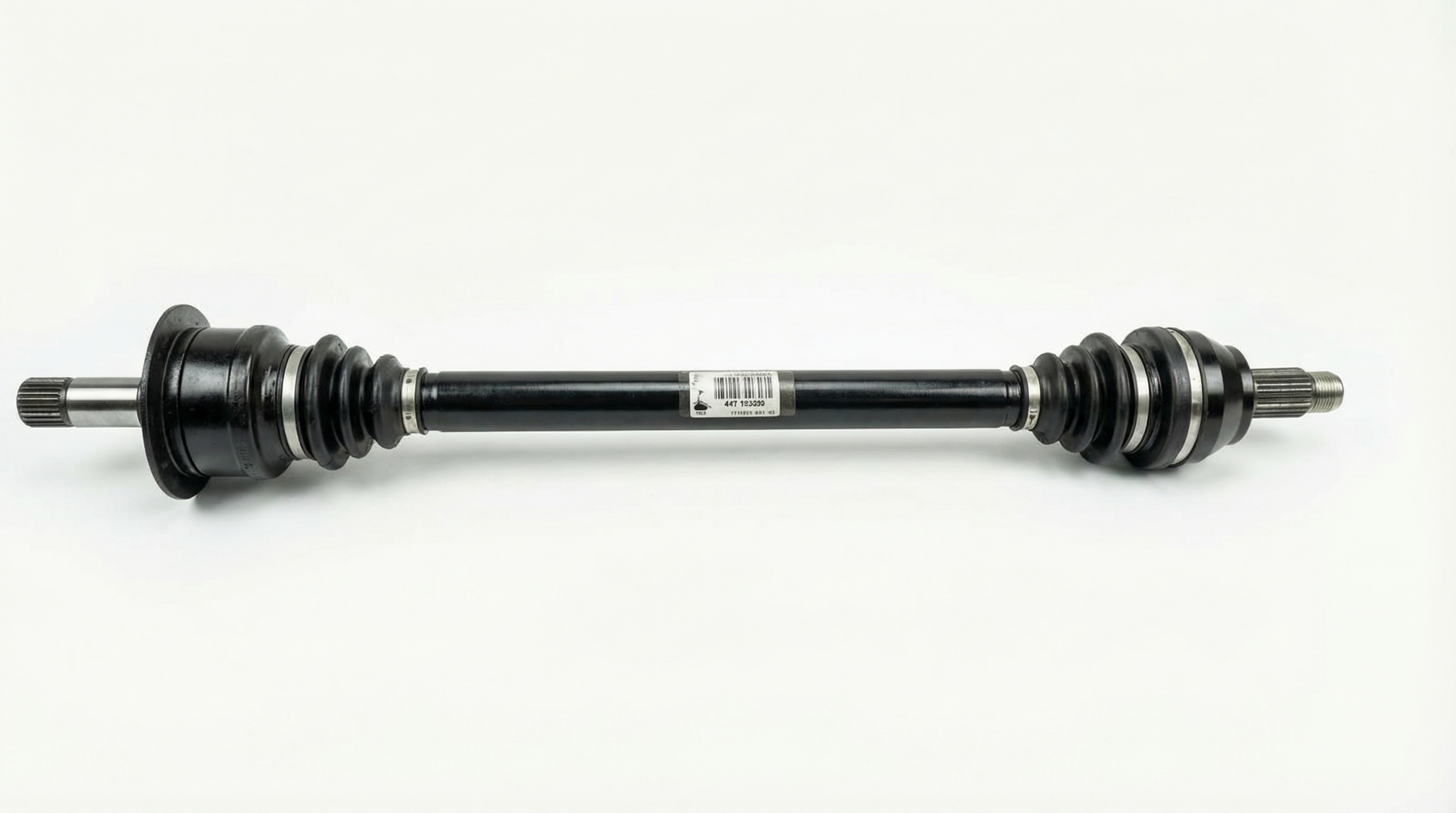

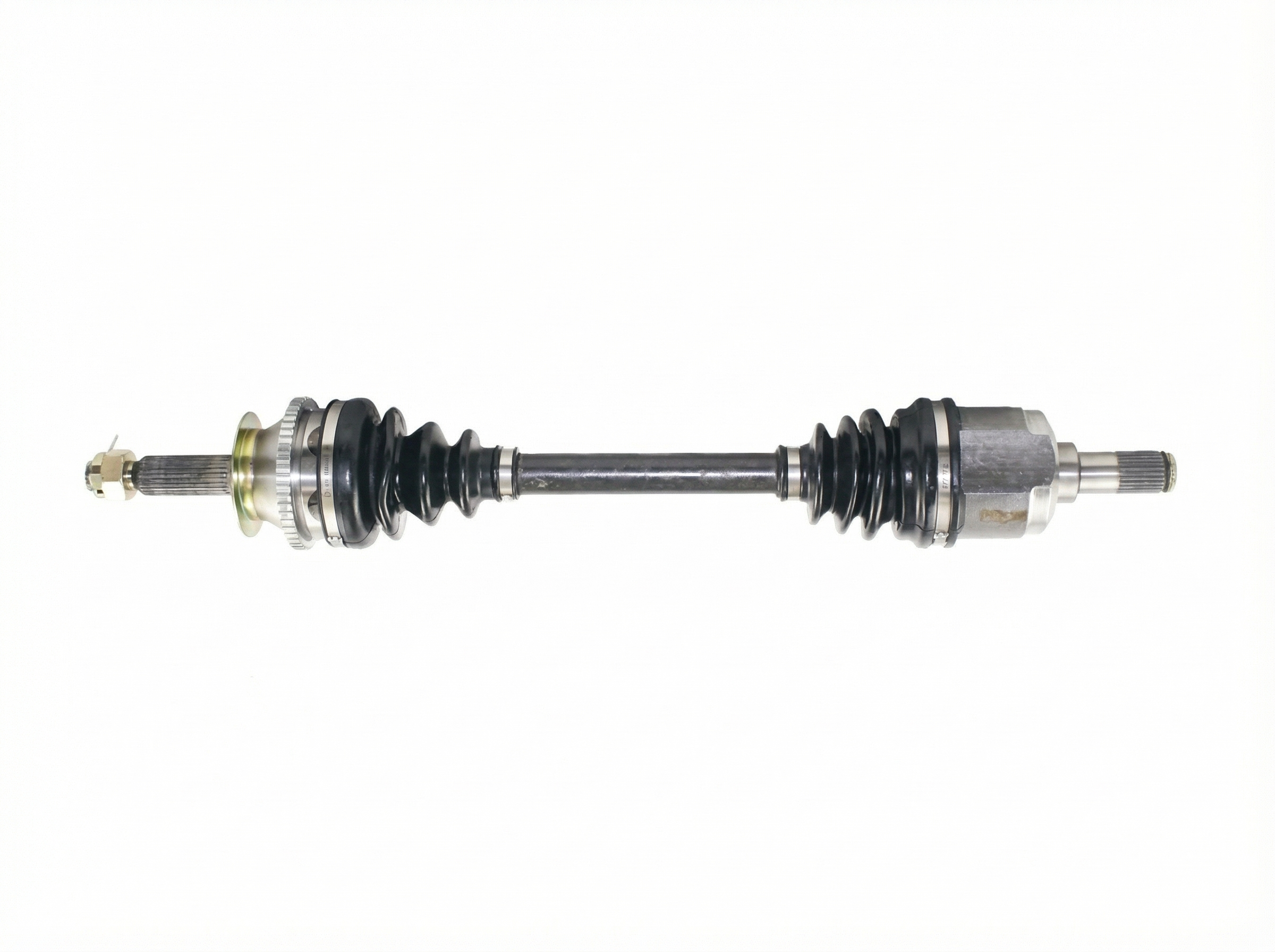

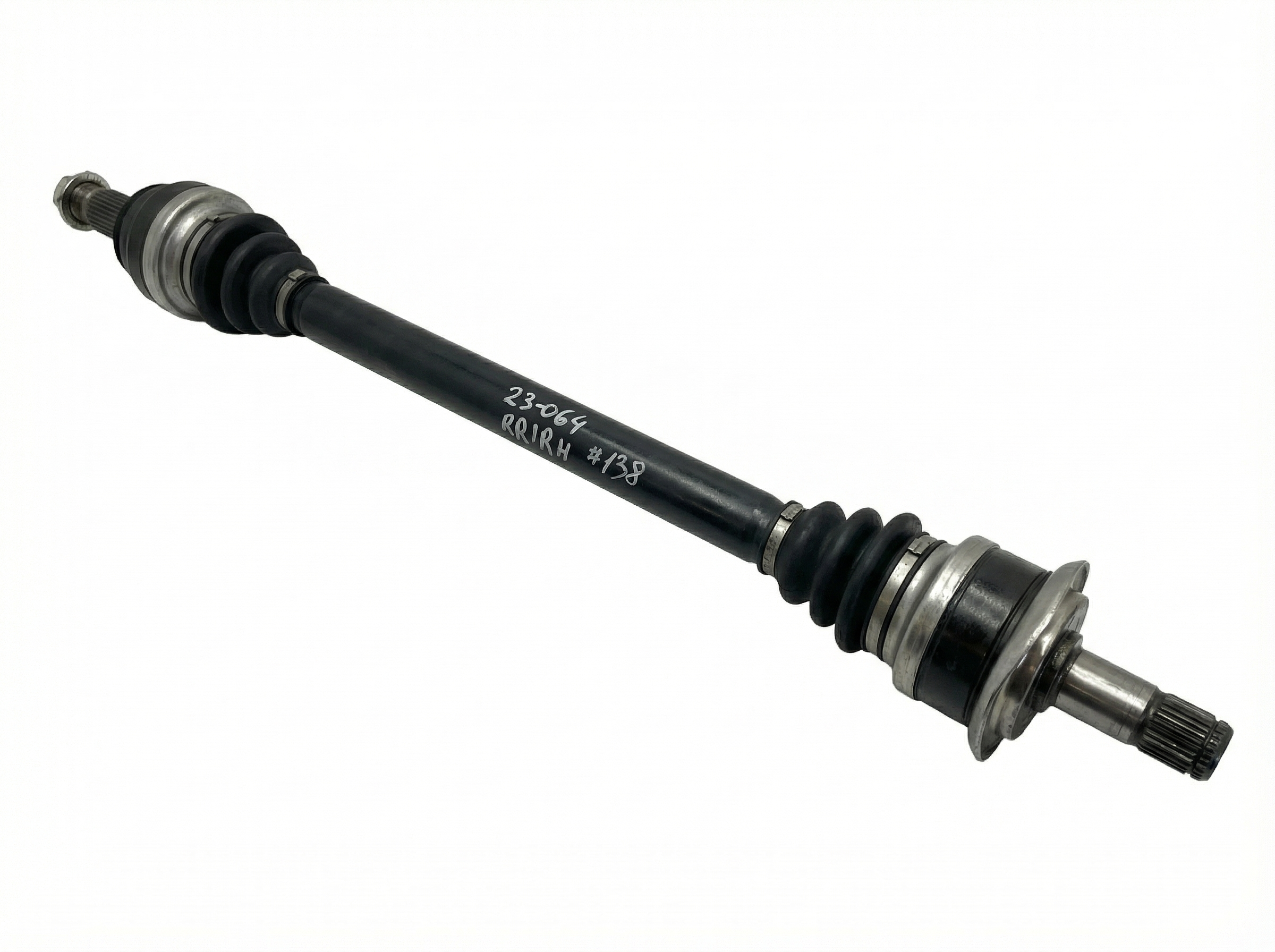

F10/F12 Generation (2008-2016 5-Series, 2014 6-Series)

This generation, including the 528i, 535i, 535d, and 640i, is where the axle diameter variations are most critical. Fitment can depend on whether the vehicle is RWD or AWD (xDrive). For example, certain axles may fit both RWD and AWD versions of the 528i, but only the AWD (xDrive) versions of the 535i and 640i. It is absolutely essential to confirm your vehicle's exact specifications and, if possible, measure the diameter of the existing axle shaft before purchasing a replacement.

Recalls and Technical Service Bulletins (TSBs)

While searches did not reveal widespread recalls specifically for the drive axle shafts on most of these models, BMW has issued recalls for related drivetrain components. For example, recall 16V-311 was issued for the front driveshaft (not axle shaft) on some 2011 X5 and X6 models due to universal joint issues. Another recall (21V-046) was issued for a small number of 2020-2021 models due to improper heat treatment of the output shafts, which could lead to breakage. Always check the NHTSA website or with a BMW dealer using your VIN to see if any open recalls apply to your specific vehicle.

Buying a Used Drive Axle Shaft

A high-quality, low-mileage used OEM axle shaft can be a smart alternative to expensive new OEM parts or unreliable new aftermarket parts. Here’s what to look for.

1. Confirm Compatibility First: Before anything else, know your vehicle's year, model, drivetrain (RWD or xDrive), and transmission type. Most importantly, if you are working on an F10/F12 generation vehicle, you must confirm the diameter of your existing axle shaft. Use a pair of calipers to measure the center of the shaft. Do not order a part without this information.
2. Inspect the CV Boots: The rubber boots are the most critical inspection point. Carefully check the entire surface of both the inner and outer boots for any cracks, splits, or pinholes. Squeeze the boots to reveal hidden cracks. If a boot is damaged, the joint has been contaminated and should be avoided.
3. Check the Joints for Play: Hold the shaft and try to move the joints. They should move smoothly through their range of motion without binding or gritty feelings. There should be minimal excessive play or clunking when you try to push and pull on the joint.
4. Examine the Splines and Threads: Check the splines on both ends of the axle for any signs of twisting, stripping, or damage. Ensure the threads on the outer end for the axle nut are clean and undamaged.
5. Consider Mileage: CV joints are wear items. An axle from a lower-mileage vehicle (ideally under 100,000 miles) is always preferable. While they can last much longer, failure rates increase with mileage.
6. Why Used OEM is Often Better Than New Aftermarket: Genuine BMW axles are made from high-quality steel and are precision-balanced to prevent vibration. Many cheap aftermarket axles are not built to the same tolerances and can cause vibrations right out of the box. Forum users frequently report that aftermarket boots are made of a harder, more plastic-like material that fails much sooner than the pliable rubber of OEM boots. A good used OEM part is often more reliable than a brand new, cheap aftermarket alternative.
🎬 See why rebuilt OEM axles beat cheap replacements

Cost Comparison

Prices can vary significantly based on brand, supplier, and your vehicle's specific configuration.

Replacement Overview

Replacing a drive axle is a moderately difficult job that can be done by an experienced DIY mechanic. It requires safely lifting and supporting the vehicle and having the right tools.

Key Steps & Considerations:

• Axle Nut Removal: The central axle nut is torqued very tightly. It must be loosened while the car is on the ground with the wheel on and the center cap removed. You will need a long breaker bar or a powerful impact wrench.
• Disassembly: To create enough room to remove the axle, you will typically need to disconnect suspension components like control arms, sway bar links, or the shock absorber from the steering knuckle.
• Removing from Differential: The inner end of the axle is held into the differential by a C-clip. It can usually be popped out by using a pry bar between the inner joint and the differential housing. Be careful not to damage the differential output seal during removal and installation.
• Torque Specs: Proper torque specs are critical, especially for the axle nut. This is often a multi-stage process involving a high initial torque value followed by an additional angle of rotation (e.g., 210 Nm + 90 degrees). Always consult the correct repair manual for your specific vehicle's specifications.

Related Parts to Replace

• Axle Nut: As mentioned, this is a mandatory replacement item.
• Differential Output Seal: If you see any signs of fluid leakage where the axle enters the differential, this is the perfect time to replace the seal. A leaking seal can lead to differential damage from low fluid levels.
