2012-2018 Toyota Prius V Drive Axle Shaft: Clicking Noises, VIN Checks, and Replacement

Symptoms of a Failing Drive Axle Shaft

A failing drive axle shaft typically provides clear audible warnings. The most common symptom is a distinct clicking or popping sound that occurs when turning. This noise is caused by wear in the outer CV joint, and it will be most noticeable during sharp, low-speed turns like those made in a parking lot. If the clicking happens on a left turn, the right-side axle is often the culprit, and vice-versa.

Vibrations During Acceleration

Wear in the inner CV joint, which connects to the transaxle, can cause a vibration or shudder that is felt throughout the car during acceleration. This vibration may lessen or disappear when you are cruising at a steady speed or coasting. In some cases, this can be a subtle shake, while in others it can be a significant shudder that is easily felt.

Visible Damage and Grease Leaks

The CV joints are protected by flexible rubber or plastic boots filled with grease. If a boot tears, this grease will be flung out onto the inside of the wheel, the suspension components, and the undercarriage. Once the grease is gone, dirt and moisture get into the joint, causing rapid wear and leading to the clicking and vibration symptoms. A visual inspection for torn boots and fresh grease splatter is a key part of diagnosis.

Buying a Used Drive Axle Shaft

For many owners, a quality used OEM drive axle is a smart choice, offering the same fit and material quality as a new dealer part at a significant discount. However, careful inspection is crucial.

• Inspect the CV Boots: This is the most important check. The rubber boots on both ends of the axle must be in perfect condition. There should be no cracks, splits, or pinholes. Squeeze the boots to ensure they are pliable and not dry-rotted. A torn boot means the joint is contaminated and should be rejected.
• Check for Joint Play: Hold the shaft and try to move the joints. While holding the shaft steady, try to push, pull, and twist the outer joint. There should be very little to no clunking or excessive play. A small amount of in-and-out plunge on the inner joint is normal, but side-to-side looseness is a red flag.
• Look for the OEM Damper: Many original Toyota axles have a thick, rubber harmonic damper mounted in the middle of the shaft. This is used to quell vibrations. Many cheap aftermarket axles omit this feature. The presence of this damper is a good indicator that you are looking at a genuine OEM part.
• Mileage vs. Condition: While lower mileage is generally better, the condition of the CV boots is a more important factor. An axle from a 150,000-mile car with perfect boots is a better bet than one from a 50,000-mile car with a torn boot. Failures are almost always caused by boot damage, not simple wear from mileage alone.

Known Issues, TSBs, and Recalls

As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Toyota or the NHTSA directly concerning drive axle shaft failure on the 2012-2018 Prius V. Failures are typically age- and wear-related, most often initiated by a damaged CV boot.

Replacement Cost Breakdown

The cost to replace a Prius V drive axle can vary significantly based on the parts you choose and who performs the labor. The job typically takes 1.5 to 2 hours for a professional mechanic.

Replacement Overview & Torque Specs

Replacing the drive axle is a feasible DIY project for those with mechanical experience and the right tools. The basic process involves lifting the vehicle, removing the wheel, and detaching suspension components to gain access to the axle.

Key Steps:

1. Safely lift and support the vehicle and remove the front wheel.
2. Using a 30mm 12-point socket, unstake and remove the large axle nut.
3. Separate the lower control arm from the steering knuckle to allow the knuckle to swing out.
4. Tap the end of the axle to push it out of the wheel hub.
5. Using a pry bar, carefully pop the inner end of the axle out of the transaxle. Be prepared for a small amount of transaxle fluid to leak out.

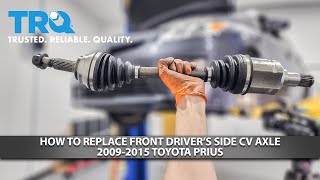

6. Installation is the reverse of removal. 🎬 Watch this step-by-step walkthrough of the axle replacement process. Always use a new axle nut.

Critical Torque Specifications:

• Axle Nut (30mm 12-point): 159 ft-lbs (216 Nm). After torquing, the nut must be staked into the groove on the axle shaft to prevent it from loosening.
• Lower Control Arm to Knuckle Bolts/Nuts: 66 ft-lbs (89 Nm).
• Wheel Lug Nuts: 76 ft-lbs.

Related Parts

When replacing a drive axle, it's wise to inspect and consider replacing a few related parts, especially on a higher-mileage vehicle.

• Axle Nut: This is a one-time-use part and must be replaced. New axles often come with one, but verify this when purchasing.
• Transaxle Seal: This seal prevents fluid from leaking out where the axle enters the transaxle. It's inexpensive and can be damaged during axle removal, so replacing it is cheap insurance against future leaks.
• Wheel Bearing: While the hub is apart, check the wheel bearing for any roughness or play. A failing bearing can cause humming or grinding noises.
