2005 Acura TL Engine Control Module: A Guide to Programming, Replacement, and Costs

Symptoms of a Failing 2005 Acura TL ECM

Diagnosing a faulty ECM can be tricky, as its symptoms often mimic other problems. Always rule out simpler issues like a weak battery, bad ground connections, or faulty sensors before condemning the ECM. Be aware of recalls for the fuel pump relay and fuse box, which can cause similar stalling and no-start issues.

• Check Engine Light: An illuminated Check Engine Light is a common symptom. Codes specifically pointing to an internal processor failure include P0601, P0604, P0606, and P0607. The ECM may also incorrectly set codes for other sensors.
• Engine Stalling or Misfiring: The engine may stall unexpectedly while driving or at idle. You might also experience rough running, hesitation, or engine misfires.
• No-Start or Intermittent Start: The engine may crank but fail to start, or start unreliably. A blinking green key-shaped light on the dashboard indicates an immobilizer issue, which is directly linked to the ECM.
• Poor Performance and Fuel Economy: A noticeable drop in gas mileage or a general lack of power can be caused by the ECM failing to properly manage the engine.
• Automatic Transmission Problems: Since the ECM controls the automatic transmission, you might experience harsh, erratic, or delayed shifting.
• No Communication with Scan Tool: In some cases of complete failure, a diagnostic scan tool may not be able to communicate with the ECM at all.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no specific recalls for the ECM itself, several recalls and TSBs for the 2005 Acura TL can cause symptoms that are easily mistaken for ECM failure. It is critical to check if these have been performed on your vehicle before replacing the ECM.

• NHTSA Recall 07V-097 (Fuel Pump Relay): A faulty fuel pump relay can cause the engine to lose power and stall while driving or fail to start. This is a very common issue that directly mimics a bad ECM.
• NHTSA Recall 05V-132 (Fuse Box): A loose terminal in the main fuse box can also cut power to the fuel pump, leading to stalling or a no-start condition.
• Acura TSB 05-017 (July 2005): Addresses issues where the engine won't start at all or starts intermittently. This could be related to various components in the starting and fuel systems.

The #1 Challenge: ECM Programming and Immobilizer Syncing

The programming process involves two key steps that must be performed with a compatible diagnostic tool:

1. VIN Programming: The vehicle's 17-digit Vehicle Identification Number (VIN) must be written to the replacement ECM. Failure to do this will set a DTC P0630 (VIN Not Programmed or Mismatch) code.
2. Immobilizer Rewriting: The ECM must be synced with the car's immobilizer control unit and your existing keys. Until this is done, the immobilizer system will prevent the engine from starting, and you will see a flashing green key icon on the dash.

Who Can Program a 2005 Acura TL ECM?

• Acura/Honda Dealership: This is the most reliable option. They use the proprietary Honda Diagnostic System (HDS) to perform the 'Replace ECM/PCM' function correctly.
• Independent Repair Shops: Many independent shops now own advanced aftermarket scan tools (like Autel or Snap-on) that have the capability to perform VIN writing and immobilizer relearn procedures 🎬 See how to program the ECU using an Autel tool on Honda/Acura vehicles.
• Automotive Locksmiths: Locksmiths specializing in modern car keys often have the same advanced tools as independent shops and can program the immobilizer system to accept the new ECM.
• Mail-In Cloning Services: Several online vendors offer a service where you mail them your original ECM and the replacement unit. They clone the VIN and immobilizer data from your old module to the new one, making the replacement unit a 'plug-and-play' install 🎬 Watch: How an Acura TL ECU is cloned that requires no further programming.

Buying a Used 2005 Acura TL ECM

A used OEM ECM is a great value, but you must buy wisely. Given the mandatory programming, the cost of a used part plus programming is often far less than a new OEM unit.

• Match the Part Number Exactly: This ECM is for 2005 Acura TL models with a 3.2L V6 and an automatic transmission only. The correct OEM part numbers are 37820-RDA-A61 or the superseding number 37820-RDA-A62. Do not use an ECM from a manual transmission model.
• Inspect for Damage: Check the casing for any signs of being pried open. Inspect the connector pins for corrosion, which can indicate water damage.
• Factor in Programming Costs: Remember that the price of the used part is not the final cost. You must add the cost of towing (if the car is not drivable) and the fee for programming by a dealer, shop, or locksmith.
• Consider a Cloning Service: If you are a DIYer, buying a used ECM and sending it with your original to a mail-in cloning service can be the easiest and most cost-effective path. This eliminates the need for a tow and a separate programming appointment.

Replacement Cost Comparison

The total cost of replacement involves the part itself and the labor/programming fee. Prices can vary significantly based on your choice.

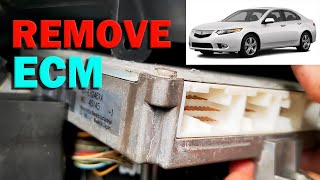

ECM Location and Replacement Walkthrough

The ECM is located in the center of the vehicle, behind the console area and mounted to the floor. Accessing it requires removing trim from both the driver and passenger footwells.

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on electrical components.
2. Access the Module: Remove the plastic kick panels and pull back the carpet in the passenger and driver side footwells to expose the ECM. You may also need to remove plastic air ducts.
3. Disconnect Connectors: Carefully press the tabs and unplug the multiple electrical connectors from the ECM. There are connectors on both sides.
4. Unbolt the ECM: Remove the two 10mm bolts that secure the ECM bracket to the vehicle floor.
5. Install New ECM: Install the replacement ECM and secure it with the bolts. Reconnect all electrical connectors, ensuring they click into place.
6. Reassemble and Program: Re-install the trim panels and reconnect the battery. The vehicle must now be programmed using one of the methods described above before it will start.
