2022 Audi Q3 ECM: A Guide to Component Protection, Programming, and Replacement
This guide explains the critical programming requirements, failure symptoms, and replacement costs for the 2022 Audi Q3 Engine Control Module (ECM).
- Programming is NOT optional. Any replacement ECM, new or used, must be programmed to the vehicle by a dealer or specialist due to Audi's 'Component Protection' anti-theft system.
- A dealer may refuse to program a used part. You must find an independent specialist or a mail-in cloning service if you buy a used ECM.
- Part numbers must match exactly. The primary OEM part number for the 2022 Audi Q3 ECM is 83A906259D.
- Failure symptoms include a no-start condition, poor engine performance, and a check engine light with internal processor fault codes.
Symptoms of a Failing 2022 Audi Q3 ECM
A faulty ECM can cause a wide range of confusing symptoms, often mimicking other component failures. Diagnosis can be a process of elimination, but here are the most common signs that the ECM itself may be the culprit.
🎬 Watch: 11 common symptoms of a failing engine control module- Check Engine Light: This is the most common symptom. The light may be on with codes pointing to an internal processor fault (like P0601-P0606) or multiple, unrelated sensor or circuit codes that defy logic.
- Engine Performance Issues: You may experience random stalling, engine misfires, a rough idle, hesitation when accelerating, or a general loss of power.
- No-Start or Crank-No-Start: The engine may turn over but fail to start, or it may not crank at all. This happens when the ECM fails to properly command the fuel injectors or spark plugs, or if it cannot communicate with the immobilizer system.
- Poor Fuel Economy: A sudden, unexplained drop in gas mileage can indicate the ECM is not managing the air-fuel mixture correctly.

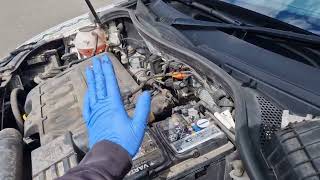

- Communication Failure: A key sign of a dead ECM is when a diagnostic scan tool cannot establish communication with the engine control module at all, while still being able to talk to other modules in the car. 🎬 See how to diagnose an Audi Q3 with no ECU communication
- Water Intrusion: While not a symptom, it's a common cause of failure. The ECM is a sealed electronic unit, but if the seals fail or if the vehicle has been exposed to flooding, water can get inside and corrode the circuit board, leading to failure.
Known Issues, Recalls, and TSBs
As of early 2026, there are no active recalls issued by the National Highway Traffic Safety Administration (NHTSA) specifically for Engine Control Module failure on the 2022 Audi Q3.
Existing recalls for this model year concern other components:
- NHTSA Recall 22V064000 (Audi Code 91DF): A software error that may prevent the rearview camera image from displaying. This involves an update to the infotainment control unit, not the ECM.
- Other Recalls: Additional recalls relate to a potentially damaged fuel tank vent pipe and a rear window manufacturing error.
There are no widespread Technical Service Bulletins (TSBs) indicating a common pattern of ECM failure for this specific model year.
CRITICAL: Component Protection and Programming
This is the single most important factor when replacing the ECM in a 2022 Audi Q3. These vehicles are equipped with an anti-theft system called Component Protection (CP). This system links the ECM to your vehicle's unique Vehicle Identification Number (VIN) and the factory's central security database.
Any replacement ECM—whether brand new or used—will not work until it is programmed to your vehicle. After physical installation, the car will not start and will display a "Component Protection Active" message on a diagnostic tool. The ECM must be adapted online by a facility with the proper tools and security credentials.
Who Can Program a Replacement Audi ECM?
- Audi Dealerships: Dealers have the factory ODIS diagnostic tool and a GEKO online subscription required to connect to Audi's servers and remove Component Protection. This is the official method. However, be aware that many dealerships may refuse to program a used ECM that you provide.
- Specialized Independent Shops: Some independent shops that focus on German or VAG (Volkswagen/Audi Group) vehicles have invested in the same licensed ODIS tools or high-end aftermarket systems (like Autel MaxiIM) and security subscriptions to perform this programming. You must call ahead and confirm they can specifically handle "Audi Component Protection adaptation."

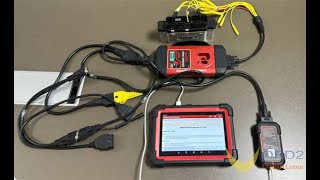

- Mail-In Cloning Services: Several companies offer a mail-in service where you send them your original (faulty) ECM and your replacement (used) ECM. They will "clone" the critical VIN, immobilizer, and security data from your original module to the replacement. The returned module is then plug-and-play, requiring no further programming. This is an excellent option if your original module is still able to be read on a benchtop tool. 🎬 Watch: How to clone an Audi engine computer for plug-and-play installation
Buying a Used 2022 Audi Q3 ECM
Purchasing a used OEM ECM is a cost-effective option, but you must be extremely careful due to the programming requirements. A used ECM is essentially a paperweight until it is properly adapted to your vehicle.
- Match Part Numbers Exactly: You MUST match the OEM part number on your original ECM to the used one you are buying. For the 2022 Q3, the primary part number is 83A906259D. Do not deviate from this.
- Budget for Programming: The price of the used part is only one part of the total cost. You must factor in the cost of programming, which can range from $150 to $500 or more, depending on who performs the service. Always secure a quote for programming *before* you buy the part.
- Physical Inspection: When you receive the used ECM, inspect it carefully. Look for any signs of corrosion on the pins of the electrical connectors. Check for any pry marks or broken seals on the case, which could indicate it was opened improperly or has hidden damage. Avoid any units that show signs of water damage.
- Communicate with Your Installer: Before buying, talk to the dealership or independent shop that will be doing the work. Confirm they are willing and able to program a customer-supplied used ECM. Getting this confirmation in writing is a good idea.
Cost Breakdown for Replacement
Costs can vary significantly based on your location and the type of part you choose. Labor costs below reflect the physical swap; programming is a separate charge.
| Part or Service | Estimated Cost |
|---|---|
| New OEM Part (from dealer) | $1,550 - $2,000 |
| Used OEM Part | $250 - $500 |
| Remanufactured / Mail-in Repair | $400 - $600 |
| Shop Labor (Physical Swap) | $100 - $200 |
| Programming / Adaptation (Required) | $200 - $500+ |
Pro Tip: Given the high cost of a new ECM and the complexities of programming, a mail-in cloning service often provides the best balance of cost and convenience for a DIY-capable owner. You can remove the ECM yourself, send both units out for cloning, and then reinstall the now plug-and-play module, avoiding dealer programming entirely.
Frequently Asked Questions (FAQ)
Can I just swap in a used ECM from another 2022 Q3?
No. Due to Audi's Component Protection system, a used ECM from another vehicle is locked to that vehicle's VIN. It must be professionally reprogrammed to work in your car. The car will not start until this is done.
What is Component Protection?
Component Protection is an anti-theft feature used by Audi and Volkswagen. It electronically links major control modules (like the ECM, infotainment system, and instrument cluster) to the car's unique identity. If a module is swapped, the system assumes it might be stolen and disables its core functions until it's officially adapted online by an authorized party.
My mechanic says the dealer won't program a used ECM. Is that true?
This is often true. Many dealerships have a policy against installing or programming used parts that they did not source themselves, partly for liability reasons and partly to sell new parts. You will need to find an independent specialist or use a mail-in cloning service if you want to use a recycled ECM.
Will a locksmith be able to program my new ECM?
Generally, no. While automotive locksmiths are experts at programming keys and immobilizers, removing Component Protection on an ECM requires different, more specialized tools and online server access that most locksmiths do not have.
Helpful Videos
Technical Specifications
OEM Part Numbers: 83A906259D 83A906259DF30
This module is linked to the vehicle via Audi's Component Protection system and requires online programming (ODIS/GEKO) for adaptation.
