2022-2025 BMW 230i Engine Control Module: A Guide to Replacement, Programming, and Immobilizer Issues
This in-depth guide explains why you can't just swap the Engine Control Module (ECM/DME) in your 2022-2025 BMW 230i and what you need to know about cloning and programming.
- This ECM cannot be swapped from another vehicle without special procedures due to the built-in immobilizer.
- The most cost-effective solution is to buy a used ECM with a matching part number and have a specialist 'clone' your original ECM's data onto it.
- A brand new ECM from a dealer is very expensive and requires programming, costing upwards of $2,500 total.
- Symptoms of failure include the engine cranking but not starting, a 'Drivetrain Malfunction' warning, or a complete lack of communication with diagnostic tools.
Symptoms of a Failing Engine Control Module (ECM/DME)
A failing ECM in a BMW 230i can cause confusing symptoms that often mimic other component failures. A key indicator of a potential ECM issue is the presence of multiple, seemingly unrelated error codes. Always perform a full diagnostic scan before condemning the module.

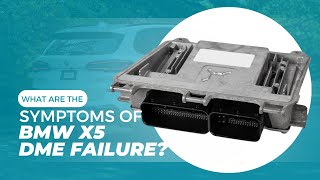

🎬 Watch: Common symptoms of a failing BMW engine computer.- Engine Cranks But Will Not Start: This is one of the most common symptoms. The starter will turn the engine over, but the ECM is not commanding the fuel pump or ignition coils to fire. This often happens because the immobilizer system does not recognize the ECM.
- "Drivetrain Malfunction" Warning: A generic but serious warning on the iDrive screen that can be triggered by an internal ECM fault.
- No Check Engine Light on Ignition: When you turn the key to the 'on' position (without starting the engine), the Check Engine Light should briefly illuminate as part of a system self-test. If it does not light up at all, it often means the ECM is not powering on or communicating.
- Random Misfires and Rough Idle: The ECM may fail to properly control one or more ignition coils or fuel injectors, leading to a rough-running engine.
- No Communication with Diagnostic Scanner: If a professional scan tool cannot establish a connection with the engine computer, it's a strong sign the module itself has failed or is not receiving power.
- Poor Fuel Economy and Performance: If the ECM is failing, it may not be able to properly calculate the air-fuel mixture, leading to a noticeable drop in power and efficiency.
Common Fault Codes
While many codes can indicate an ECM problem, codes specifically pointing to internal processor faults are a strong sign of failure. Look for codes such as:
- P0601, P0603, P0604, P0605, P0606: These codes relate to internal control module memory or processor errors.
- 102A01, 10B101, 135808: In some cases, multiple simultaneous electrical fault codes for different sensors (like mass air flow, temperature sensor, and Valvetronic motor) can be caused by a single failing DME rather than multiple separate sensor failures.
Pro Tip: Before replacing the ECM, always check its power and ground connections. A corroded ground wire or a blown fuse in the power distribution box can mimic the symptoms of a completely dead module.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
As of early 2026, there are no widespread recalls specifically for Engine Control Module failure on the 2022-2025 BMW 230i. However, several related recalls have been issued for this vehicle generation that owners should be aware of.
| Recall Number | Affected Years | Summary |
|---|---|---|
| NHTSA 25V-636 / 26V-056 | 2022 | The engine starter relay may corrode, leading to a short circuit and an increased risk of fire. The remedy involves replacing the engine starter. |
| NHTSA 23V-099 | 2023 | An ECU software issue (not the main engine DME) may allow the power windows and sunroof to close without the key present, posing an injury risk. The fix is a dealer-installed software update. |
| NHTSA 23V-770 | 2024 | The steering gear may not have been properly tightened at the factory, which could cause it to loosen and lead to a loss of vehicle control. |
| NHTSA 23V-039 | 2023 | The second-row seat backrest cover panels for the side airbags may break during deployment, potentially causing the airbag to deploy improperly. |
You can check if your specific vehicle is affected by entering your VIN on the NHTSA website.
Buying a Used Engine Control Module (ECM)
Buying a used ECM for a modern BMW is more complex than for many other vehicles due to the advanced anti-theft system. You cannot simply install a used module and expect it to work.
The Immobilizer and Individual Serial Number (ISN)
The most critical concept to understand is the link between the ECM/DME and the car's immobilizer module (known as CAS, FEM, or BDC). These two modules are paired at the factory with a unique code called the Individual Serial Number (ISN). If you install a used ECM with a different ISN, the immobilizer will prevent the engine from starting as a theft-prevention measure. This is why a simple swap will result in a "crank, no-start" condition.
Cloning: The Best Solution for Used Modules
The preferred method when using a recycled ECM is cloning. This is a bench service where a specialist technician uses dedicated equipment to read all the data from your original, faulty ECM and write it directly onto the replacement (used) ECM. This data includes:
- The vehicle's VIN
- The critical ISN security code
- Engine-specific software and coding
- Performance and transmission adaptations
A successfully cloned ECM is a true plug-and-play solution. The car will not know the physical module has been changed, eliminating the need for a costly trip to the dealer for programming.

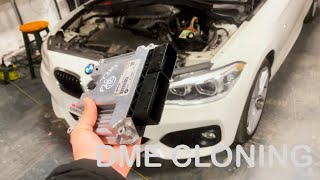

🎬 Watch a specialist technician clone a BMW DME using professional tools.Compatibility and Part Numbers
Warning: This ECM is for 2022-2025 BMW 230i Coupe models with the 2.0L turbocharged B48 engine and Rear-Wheel Drive (RWD). It is not compatible with All-Wheel Drive (xDrive) models, which use a different module.
When sourcing a used module for cloning, you must match the part number exactly. There are two key numbers to be aware of:
- Official BMW Part Number: 12145A8F928
- Number Printed on the Unit: 5A8F92801
The number printed directly on the metal case of the ECM (5A8F92801) is the most important one to match. While other part numbers may look similar, internal hardware differences can make them incompatible.
Cost Breakdown
Replacing the ECM can be expensive, especially at the dealership. Opting for a used module with a cloning service offers significant savings.
| Service / Part | Estimated Cost |
|---|---|
| New OEM ECM from Dealer (Part Only) | $1,500 - $3,000+ |
| Used OEM ECM | $250 - $600 |
| ECM Cloning Service (Mail-in) | $200 - $500 |
| Shop Labor (Removal & Installation) | $100 - $250 |
| Dealer Replacement (New Part & Programming) | $2,500 - $4,000+ |
Frequently Asked Questions (FAQ)
Does a replacement ECM for a BMW 230i have to be programmed?
Yes, absolutely. A new ECM must be programmed to your car's VIN and have its security code (ISN) aligned with the immobilizer. A used ECM must be cloned from your original unit to transfer this critical security data. You cannot simply swap it in.
What is the difference between ECM cloning and programming?
Cloning is the process of making an exact copy of your original ECM's data and writing it onto a compatible used unit. The result is a plug-and-play module that requires no further steps. Programming is the process of configuring a new, 'virgin' ECM from scratch to match your vehicle's options and security system. This is typically done by a dealer or a highly specialized independent shop using manufacturer tools.
Can an independent mechanic or locksmith program this ECM?
Most standard mechanic shops and locksmiths cannot program a new BMW ECM. However, many specialized independent shops and mail-in services have the tools to clone your existing ECM onto a used one, which is often the most cost-effective solution. Programming a brand new unit often requires a dealer visit.
Where is the ECM located on the 2022-2025 BMW 230i?
The ECM (DME) is located in the engine bay on the passenger side. It is housed inside a white or black plastic electronics box, typically situated underneath the cabin air filter housing. You must remove the cabin air filter assembly to gain access to the box, and always disconnect the vehicle's battery before unplugging the module.
🎬 See this walkthrough on how to remove and reinstall your DME.Helpful Videos
Technical Specifications

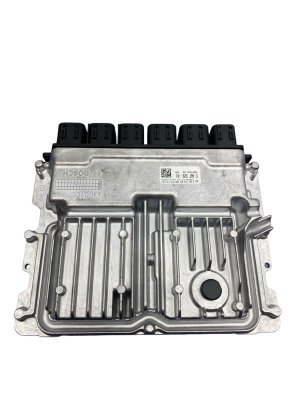

OEM Part Numbers: 12145A8F928 5A8F92801
Fits 2022-2025 BMW 230i Coupe with 2.0L Turbocharged B48 engine and Rear-Wheel Drive (RWD). Does not fit xDrive models.
