2001-2003 BMW 330i, 330xi & 330Ci Engine Control Module (DME): Failure, Programming, and Replacement

Symptoms of a Failing DME

A failing DME in a 2001-2003 BMW 330i, 330xi, or 330Ci can cause a wide range of issues, from subtle drivability problems to a complete no-start condition. Because the DME is the engine's brain, its failure can mimic other problems like bad sensors or fuel pumps, making diagnosis tricky.

• Persistent Engine Misfires: One of the most common failures for the Siemens MS43 DME is the burnout of internal driver circuits that control the ignition coils. This results in misfires on one or more cylinders that cannot be fixed by replacing spark plugs, ignition coils, or injectors.
• Crank, No Start: The engine will turn over but will not fire up. This happens because the failing DME is not sending the necessary signals to the fuel pump or ignition system.
• Engine Stalling: The engine may stall unexpectedly while driving and may or may not restart immediately. This can be caused by heat-related failures of internal components.
• No Communication with OBD-II Scanner: If you plug in a diagnostic scanner and it cannot communicate with the engine computer, it's a strong sign the DME is dead or its main fuse has blown.
• Multiple, Unrelated Fault Codes: A failing DME can generate a flood of seemingly random error codes for various sensors at once. This happens because the DME can no longer correctly interpret the signals it receives.
• Specific Internal Fault Codes: Certain diagnostic trouble codes point directly to an internal DME failure. These include codes like 30BA, 30BB (DME Digital Motor Electronics, Internal Failure), P0601 (Internal Control Module Memory Check Sum Error), P0604 (Internal Control Module RAM Error), and P0605 (Internal Control Module ROM Error).

Known Issues and Common Failure Modes

The Siemens MS43 DME in these E46 models is generally robust, but has a few known vulnerabilities.

Ignition Driver Failure

As mentioned, the most frequent hardware issue is the failure of the internal transistors (MOSFETs) that fire the ignition coils. This leads to persistent misfires that don't respond to typical tune-up parts. Repair services can often replace these specific failed components on the circuit board.

Software Corruption

The DME's software can become corrupted or "bricked" during a failed software update or performance tuning attempt, especially if battery voltage is low. This will prevent the car from starting and may block all communication with the module.

Oil Contamination

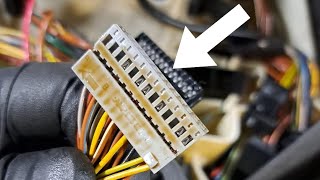

A less obvious but critical issue is oil contamination. Oil from a leaking camshaft position sensor or VANOS solenoid can travel up the wiring harness through capillary action and seep into the DME's connectors. 🎬 Watch: How oil contamination causes unsolvable misfires and codes. This oil contaminates the pins, causing short circuits and erratic behavior that can be very difficult to diagnose. Always inspect the DME connectors for any signs of oil if you are experiencing strange electrical issues.

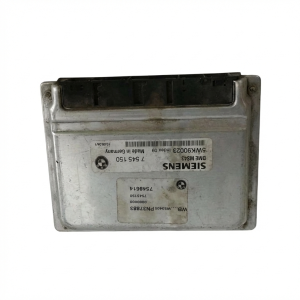

Buying a Used Engine Control Module (ECM)

Purchasing a used OEM DME is a cost-effective way to replace a failed unit, but you must follow specific steps to ensure it will work in your car. The most critical part of the process is dealing with the programming.

• Match the Part Number: Ensure the used DME is a Siemens MS43 from a compatible vehicle. While there are several part numbers, they are largely interchangeable for cloning purposes as long as they are MS43 units.
• KEEP YOUR ORIGINAL DME: Do not turn in your original DME as a core or discard it. The data from your original DME is required to program the replacement used unit. The easiest and most common method is "cloning."
• What is Cloning? Cloning is a service where a specialist uses dedicated equipment to read all the data from your original DME—including the VIN, immobilizer security code (ISN), software, and vehicle-specific coding—and writes it directly onto the used replacement DME. The result is a plug-and-play module that your car recognizes as its own.
• Physical Inspection: When buying a used DME, check the housing for any signs of physical damage or water intrusion. Ask the seller to show pictures of the connector pins to ensure they are clean and free of corrosion or oil.
• Find a Cloning Service: Many independent shops and mail-in services specialize in BMW DME cloning. This is often the most affordable and reliable option. You will need to send them both your original DME and the used replacement unit.

Replacement and Programming Options

Because of the anti-theft system, you have three main paths for replacing the DME in your 330i, 330xi, or 330Ci.

1. DME Cloning (Recommended for Used Parts): As described above, this involves copying the identity of your old DME to a used one. This makes the replacement plug-and-play, requires no dealer visit, and retains all your car's original keys and settings.
2. EWS Alignment: A technician with advanced BMW diagnostic tools (like ISTA or Autel) can perform a procedure to align the used DME with your car's existing EWS module. This involves extracting the unique Individual Serial Number (ISN) from the DME and programming the EWS to accept it. This is more complex than cloning and is typically done by a knowledgeable independent BMW specialist.
3. New DME from a Dealer: This is the most expensive option. A dealer will order a brand new, unprogrammed DME and code it to your vehicle's VIN and EWS system. While it comes with a warranty, the cost can often exceed the value of the car.

Cost Comparison

Prices can vary significantly based on your chosen solution. 🎬 Watch: A guide to ECM failure signs and replacement costs. Labor for diagnosis and programming is a major factor.

Recalls and Technical Service Bulletins (TSBs)

As of early 2026, there are no specific NHTSA recalls for the Engine Control Module (DME) on the 2001-2003 BMW 330i, 330xi, or 330Ci. However, these vehicles were subject to other major recalls, including those for defective Takata airbags and faulty rear taillight electrical contacts. It is recommended to check your vehicle's VIN on the NHTSA website to ensure all applicable safety recalls have been performed.
