2003-2006 Trailblazer, Envoy & More 4.2L ECM: The Critical Programming and Security Relearn You Can't Skip

Symptoms of a Failing ECM

A failing Engine Control Module can cause a wide range of confusing and intermittent problems. Because the ECM controls so many different functions, symptoms can often be mistaken for other issues. The most definitive sign of an internal ECM failure is a specific diagnostic trouble code (DTC).

• Check Engine Light: This is the most common symptom. Specific codes pointing to internal failure are the strongest evidence.
• Engine Stalling or Misfiring: The engine may stall unexpectedly at stops, hesitate during acceleration, or run rough.
• No-Start Condition: The engine will crank over but will not start. This is often because the ECM is not commanding the fuel injectors or spark plugs to fire.
• Poor Performance and Fuel Economy: You may notice a sudden drop in power, sluggish acceleration, or a significant decrease in gas mileage as the ECM can no longer manage the air-fuel mixture correctly.
• Erratic Transmission Shifting: The ECM communicates with the transmission controller. A fault can cause harsh, delayed, or incorrect gear shifts.

Common Diagnostic Trouble Codes (DTCs)

While many codes can be related to a faulty ECM, the following are strong indicators that the module itself has an internal failure:

• P0601 - Internal Control Module Memory Check Sum Error: This code means the ECM's internal memory is corrupt, and it has failed a self-check. This is a direct condemnation of the module.
🎬 Watch: How to diagnose and solve a P0601 internal memory error.
• P0606 - ECM/PCM Processor Fault: This indicates a major failure of the ECM's central processor.
• P0602 - Control Module Programming Error: This code may appear if the ECM's software is missing or incorrect.

CRITICAL: ECM Programming and Anti-Theft Relearn

You cannot simply swap the ECM in these vehicles. The replacement module, whether it is new, used, or remanufactured, will not work until it is properly integrated with your specific vehicle. This involves two distinct procedures: VIN programming and the security relearn.

1. VIN Programming (Requires a Scan Tool)

The ECM must be programmed with your vehicle's 17-digit Vehicle Identification Number (VIN). This process loads the correct software and calibration files for your vehicle's specific engine, transmission, and emissions equipment. Without the correct VIN, the ECM cannot communicate properly with the other modules in the vehicle.

• Who can do this? A GM dealership or an independent repair shop with a GM Tech 2 scan tool or an equivalent J2534 pass-thru device and a subscription to GM's Service Programming System (SPS).
• Can I do this myself? Not without the specialized tools and software subscriptions, which are very expensive. Many online sellers offer pre-programming services where you provide your VIN when you order the part.

2. Passlock Security Relearn (DIY Procedure)

After the ECM is programmed with your VIN, the vehicle will likely crank but not start because of the GM Passlock anti-theft system. The new ECM needs to learn the unique code from your ignition lock cylinder. You can perform this procedure yourself without any tools. It takes about 30 minutes.

1. Insert the key and turn the ignition to the "ON" position (do not start the engine).
2. Attempt to start the engine. It will crank for a moment and then die. The "Security" light on the dashboard will be on or flashing.
3. Leave the key in the "ON" position. Wait for approximately 10 minutes until the "Security" light turns off.
4. Turn the ignition to "OFF" and wait for 10 seconds.
5. Repeat steps 2-4 two more times, for a total of three 10-minute cycles.
6. After the third cycle, the vehicle has learned the new ECM. Turn the key to "OFF", wait 10 seconds, and then start the engine. It should now run normally.

3. Crankshaft Variation (CASE) Relearn (May Require a Scan Tool)

After the engine is running, the check engine light may come on with a code P0315 (Crankshaft Position System Variation Not Learned). This means the new ECM needs to learn the minor imperfections of the crankshaft reluctor wheel to accurately detect misfires. This procedure must be done with a scan tool capable of performing the CASE relearn. 🎬 Watch: How to perform a CASE relearn using a scan tool. Many independent shops can perform this service.

Buying a Used Engine Control Module: What to Know

A used OEM Engine Control Module is an excellent, cost-effective alternative to a new or remanufactured unit, provided you understand the process. The factory units are robust, and a used module that has been properly programmed can provide many more years of service.

• Programming is Not Optional: The single most important factor is that a used ECM is not a plug-and-play part. It MUST be programmed with your VIN. Factor the cost of programming (either by a local shop or a mail-in service) into the total price.
• Verify the Part Number: While many part numbers are interchangeable for the 4.2L engine, it's always best to match the part number from your original module to the used one if possible. This ensures the hardware is a perfect match.
• Inspect the Connectors: When you receive the used ECM, carefully inspect the pins in the electrical connectors. Look for any signs of corrosion (green or white powder) or bent pins. Do not install a module with damaged pins.
• Why Used OEM is a Good Choice: A used original GM module has been proven to work with the vehicle's complex systems. Cheap aftermarket units can sometimes have software glitches or use lower-quality components that may not last as long.

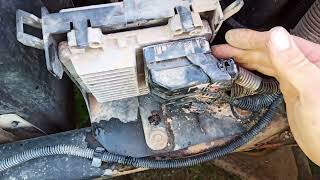

ECM Location and Replacement

On all of these GMT360 platform vehicles, the ECM is located in the engine compartment on the driver's side, near the air filter box and firewall. The physical replacement is a simple, straightforward process.

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on any electronic components.
2. Unplug Wiring Harnesses: Carefully release the locking tabs on the large wiring connectors and unplug them from the ECM.
3. Unbolt the Module: Remove the bolts holding the ECM to its mounting bracket.
4. Install the New Module: Bolt the replacement ECM into place, reconnect the wiring harnesses securely, and then reconnect the negative battery terminal.
5. Proceed to Programming: The vehicle will not start until the programming and relearn procedures described above are completed.

Known Issues, TSBs, and Recalls

Technical Service Bulletin PIP3330D: For 2004-2005 Chevrolet Trailblazer, GMC Envoy, Buick Rainier, and 2004 Oldsmobile Bravada, GM released a bulletin regarding a P0171 (System Too Lean) trouble code. If no vacuum leaks or other mechanical faults are found, the recommended fix is to reprogram the PCM/ECM with updated software calibrations to improve diagnostics for this code.

Recall 05044 (Unrelated Part): While not related to the ECM, owners should be aware of a safety recall for the flasher relay module on some 2003-2004 models. This could cause the turn signals to operate incorrectly. This highlights the importance of correctly diagnosing electrical issues on these vehicles.

Cost of Replacement

The total cost will be a combination of the part itself and the necessary programming. Prices can vary significantly based on your choice of part and service provider.
