2006 Chrysler Sebring & Dodge Stratus 2.4L ECM: A Guide to No-Starts, Stalling, and Programming

Symptoms of a Failing ECM

A failing ECM in a 2006 Chrysler Sebring or Dodge Stratus can cause a wide range of confusing and frustrating issues. Because the ECM controls so many different functions, symptoms can vary, but here are the most common signs to watch for:

• No-Start or Crank-No-Start: This is one of the most definitive symptoms. The engine may crank over but will not fire up because the ECM isn't commanding the fuel injectors or ignition coils to work.
• Engine Stalling or Misfiring: The vehicle may stall unexpectedly while driving or at an idle. This can be intermittent and may happen more frequently as the engine warms up.
• Check Engine Light: An illuminated Check Engine Light is a common indicator. Specific trouble codes related to internal ECM failure are a strong sign the module is at fault.
• Poor Engine Performance: You might notice a sudden decrease in fuel economy, a lack of acceleration, or rough idling as the ECM struggles to manage the engine correctly.
• Erratic Shifting: In some cases, a failing ECM can interfere with the signals sent to the transmission, causing harsh or unpredictable shifting.
• No Communication with Scan Tool: If a diagnostic scan tool cannot communicate with the vehicle's computer, it often points to a complete failure of the ECM.

Common Diagnostic Trouble Codes (DTCs)

When the ECM detects an internal fault, it will often store a specific trouble code. If you see any of the following codes, it is highly likely the ECM needs to be replaced:

• P0601: Internal Control Module Memory Check Sum Error. This is the most common and definitive code for a failed ECM in these vehicles. It means the ECM's internal memory is corrupted and it cannot be repaired.
🎬 Watch: Understanding the P0601 checksum error and how to fix it.
• P0605 or P0606: These codes also point to internal processor or memory faults within the ECM.
• U-Series Codes (e.g., U0100): These codes indicate a loss of communication with the ECM, which can mean the module has failed completely.

Critical Programming and Immobilizer Information

Replacing the ECM in a 2006 Sebring or Stratus is not a simple plug-and-play procedure. This is the single most important thing to understand before buying a replacement.

These vehicles are equipped with a Sentry Key Immobilizer (SKIM) system. The ECM, SKIM module, and your ignition keys are all electronically linked. If you install a replacement ECM without programming, the anti-theft system will activate, and the engine will not start.

The replacement ECM MUST be programmed with your vehicle's unique 17-digit Vehicle Identification Number (VIN). This programming syncs the new module to your car's existing systems and keys.

Many online retailers offer pre-programming services where you provide your VIN at the time of purchase. The module then arrives ready for installation, often described as "plug and play." If you purchase a used ECM that has not been pre-programmed, you will need to have it programmed by a dealership or a qualified automotive locksmith with the proper tools.

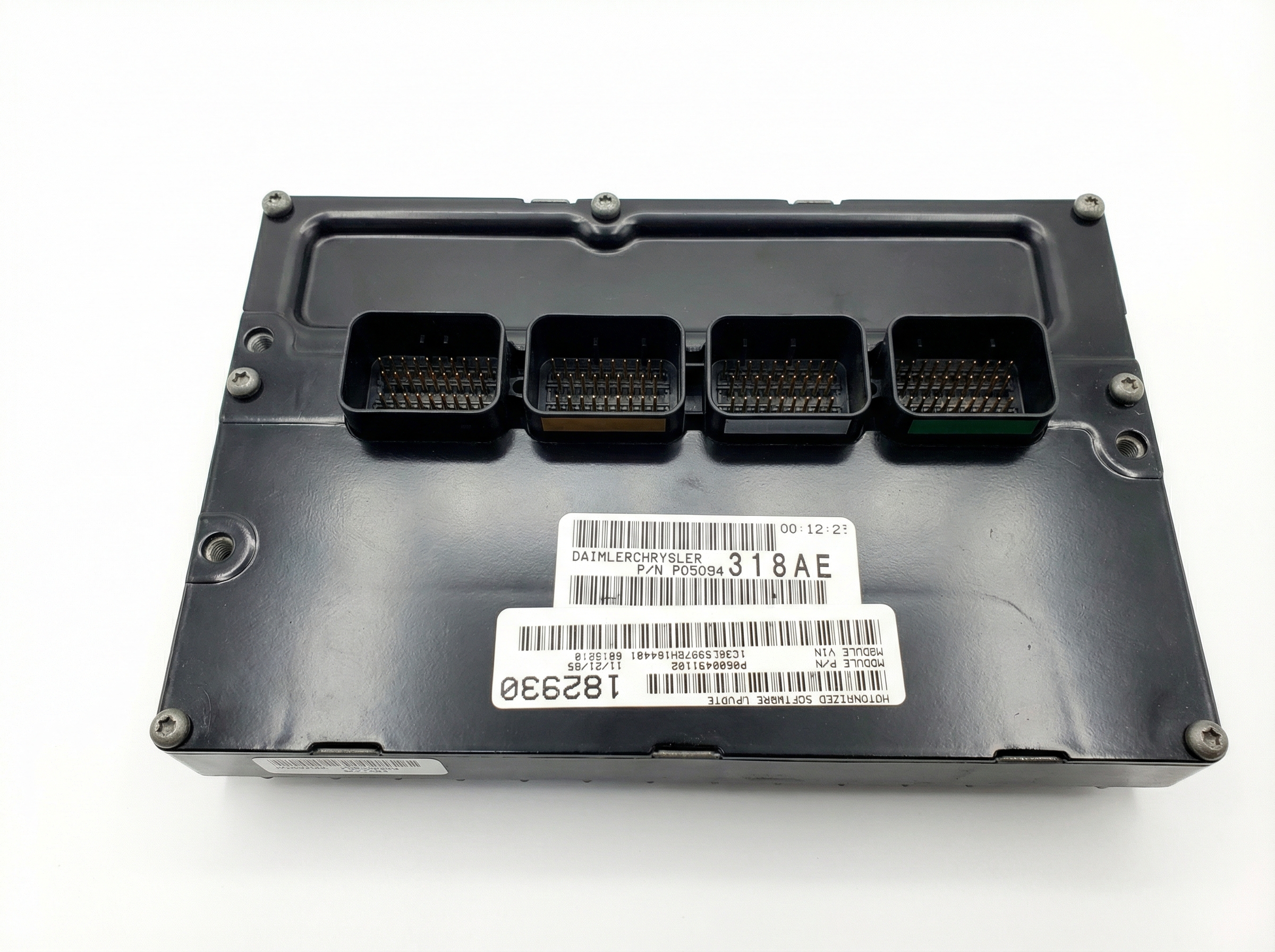

Buying a Used Engine Control Module

A used OEM ECM is often a reliable and cost-effective solution. Because these modules are electronic and not subject to mechanical wear, a unit from a lower-mileage vehicle can provide years of service. Here’s what to look for:

• Verify the Part Number: Match the part number on your original ECM to the replacement unit. While several part numbers are interchangeable for these vehicles, an exact match is the safest bet.
• Confirm the Engine Size: This ECM is only for vehicles equipped with the 2.4L 4-cylinder engine. It will not work on the 2.7L V6 models.
• Inspect for Physical Damage: Check the casing for any signs of being pried open. Look closely at the electrical connector pins to ensure they are straight, clean, and free of corrosion. Water damage is a common cause of failure, so avoid any units with signs of moisture intrusion.
• Choose a Pre-Programmed Unit: To save time and hassle, it is highly recommended to purchase a used ECM from a seller who offers VIN programming. This makes the installation process much simpler and avoids a separate trip for programming.
• Factor in Programming Costs: If you buy a non-programmed module, be sure to budget for the additional cost of having it programmed by a professional, which can range from $100 to $250.

Replacement Cost Comparison

The cost of replacing the ECM can vary significantly based on the source of the part and labor rates. Here is a general breakdown:

Known Issues, TSBs, and Recalls

While there are no widespread recalls specifically for ECM failure on the 2006 Sebring and Stratus, some related powertrain software issues have been noted. A recall (NHTSA ID: 06V341000, Mopar F43) was issued for some 2007 model year Chrysler vehicles (built in 2006) for a software issue in the Powertrain Control Module that could cause the transmission to shift improperly. While this doesn't directly apply to the 2006 model year, it highlights the importance of having the latest software updates, which are typically included when a module is reprogrammed.
