2015-2017 Jeep Renegade & Fiat 500X ECM: Programming, Problems, and Replacement

Symptoms of a Failing ECM

A failing Engine Control Module in your Jeep Renegade or Fiat 500X can cause a wide range of problems, from minor annoyances to critical failures that can leave you stranded. Recognizing the early signs can help you diagnose the issue before it gets worse.

Common Symptoms

• Check Engine Light: This is the most common indicator. The ECM will store trouble codes that can be read with an OBD-II scanner to help pinpoint the problem.
• Engine Stalling or Misfiring: The engine may shut off unexpectedly while driving or run rough. This can be due to incorrect fuel and air mixture calculations by the failing module.
• Car Won't Start: A dead ECM can prevent the engine from starting at all, even if the battery and starter are good. The engine may crank but fail to ignite.
• Poor Performance and Fuel Economy: You might notice a sudden drop in gas mileage or a lack of acceleration power. This happens when the ECM can no longer efficiently manage the engine's parameters.
• Erratic Shifting: The ECM communicates with the Transmission Control Module (TCM). A faulty ECM can send incorrect data, leading to harsh or improper gear shifts.
• Flashing Odometer: On these Fiat/Chrysler platform vehicles, a flashing odometer is a classic sign that a module is not communicating correctly with the rest of the vehicle's network. This often points to a need for a "Proxy Alignment" procedure.

Associated OBD-II Trouble Codes

While many codes can indicate an ECM-related issue, some are more directly linked to internal module failures. Look for codes in the P06xx range, which are specific to computer and output circuit faults. Other related codes may include:

• P0101 - Mass Air Flow Sensor "A" Circuit Performance: Can be triggered by a faulty ECM misinterpreting sensor data.
• P0335 - Crankshaft Position Sensor Circuit: A common code that can sometimes be caused by the ECM itself rather than the sensor.
• P1607 - PCM Internal Shutdown Timer Rationality: This code points directly to an internal logic failure within the Powertrain Control Module.
• U0401 - Implausible Data Received From ECM-PCM: This indicates a communication breakdown between the ECM and other modules.

Programming and Installation Requirements

Replacing the ECM in a 2015-2017 Jeep Renegade or 2016-2017 Fiat 500X is not a simple plug-and-play job. The replacement module must be programmed to your specific vehicle to function correctly and communicate with the other electronic modules.

VIN Programming

The replacement ECM must be programmed with your vehicle's 17-digit Vehicle Identification Number (VIN). This ensures the module has the correct software and calibration for your vehicle's specific options and emissions equipment. Without VIN programming, the vehicle will not start and run correctly.

Proxy Alignment

These vehicles use a CAN bus network where all the electronic modules (ECM, TCM, BCM, etc.) are linked and expect to see each other. When a new module is installed, a "Proxy Alignment" procedure must be performed. This procedure introduces the new ECM to the network, allowing all modules to communicate properly. Failure to perform a proxy alignment will result in a flashing odometer 🎬 Watch: How to perform a proxy alignment on a Renegade and may cause various features to not work. This procedure requires a compatible high-level scan tool, such as the dealership's wiTECH software or some advanced aftermarket tools.

Who Can Program the ECM?

• Dealerships: FCA (Fiat Chrysler Automobiles) dealerships have the proprietary wiTECH scan tool and software to perform both VIN programming and the proxy alignment.
• Qualified Independent Shops: Many independent auto repair shops that specialize in FCA vehicles invest in the necessary tools and subscriptions (like TechConnect) to perform these programming functions.
• Online Sellers: Some online retailers of used or remanufactured ECMs offer a pre-programming service where they will flash the module with your VIN before shipping it to you. This can make the installation process easier, but a proxy alignment will likely still be required after installation.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Several software updates and a few recalls have been issued for the powertrain systems in these vehicles. It's important to ensure the ECM has the latest software installed.

• NHTSA Recall 18V-332 (FCA U63): This safety recall involves reprogramming the Powertrain Control Module to address a defect that could cause the vehicle to stall.
• NHTSA Recall 16V-529 (FCA S55): This recall addresses an issue with the 9-speed transaxle wire harness that could cause the transmission to unexpectedly shift to neutral. While not a direct ECM fault, the diagnostic system is involved.
• TSB 18-063-16 REV. A: This TSB for the 2015 Jeep Renegade involves a PCM software update to address a long list of potential diagnostic trouble codes, rough idle, and RPM flares at cold start.
• TSB 08-010-16 REV. D: For the 2016 Fiat 500X, this bulletin calls for updating the software on the BCM, PCM, and TCM to improve diagnostics and system performance.
• TSB 08-110-17: This bulletin applies to both the Renegade and 500X and involves a software flash for the Drivetrain Control Module (DTCM), which may also require a proxy alignment.

Buying a Used Engine Control Module (ECM)

A used OEM ECM can be a cost-effective solution, but there are important factors to consider to ensure you get a good, compatible part.

1. Match the Part Number: The most critical step is to match the OEM part number exactly. The primary part numbers for these vehicles are 05150911AD and 5150911AE. The part number 5150911AE is a newer version that supersedes 5150911AD. Always verify the number on your original module before purchasing a replacement.
2. Physical Inspection: When you receive the used module, inspect it carefully. Look for any signs of corrosion on the casing or pins, which could indicate water damage. Ensure none of the connector pins are bent or broken.
3. Source Matters: Purchase from a reputable seller that offers a warranty. This gives you protection in case the module is defective.
4. Programming is Required: Remember that a used ECM will be programmed to the donor vehicle. It absolutely must be reprogrammed for your vehicle's VIN and then have a proxy alignment performed. Factor the cost of programming into the total replacement cost.
5. Why Used OEM is a Good Choice: Used original equipment (OEM) modules are often more reliable than new aftermarket units. They were built to the manufacturer's original specifications and use the correct factory software, which is crucial for the complex systems in these vehicles.

Replacement Cost Breakdown

The cost to replace the ECM can vary significantly based on the part source and labor rates. Programming is a mandatory additional cost.

Replacement Procedure Overview

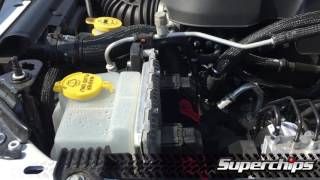

The ECM is located in the engine compartment, typically mounted to the firewall or inner fender. On the Fiat 500X, it's on the rear bulkhead below the windshield. On the Jeep Renegade, it's next to the air cleaner assembly.

1. Disconnect the negative battery cable.
2. Locate the ECM in the engine bay.
3. Carefully release the locking tabs and unplug the large electrical connectors from the module.
4. Remove the mounting bolts (typically three) that secure the ECM to its bracket.
5. Remove the old ECM from the vehicle.
6. Installation is the reverse of removal. Ensure the mounting bolts are tightened correctly (spec is around 4 Nm or 35 in. lbs.).
7. Reconnect the electrical connectors and the battery.
8. The vehicle must then be taken to a dealer or qualified shop for VIN programming and proxy alignment.
