2007-2008 Ford Expedition ECM: Programming, PATS Keys, and Failure Diagnosis

Symptoms of a Failing ECM

An ECM failure can cause a wide range of confusing symptoms. Because the ECM controls so many systems, it's important to properly diagnose the issue before condemning the module. 🎬 Watch: How to test the ECM before buying a replacement. ECM failure is relatively uncommon, and symptoms can often be caused by simpler issues like bad wiring, faulty sensors, or blown fuses.

• Engine No-Start or Stalling: The engine may crank but refuse to start, or it may stall intermittently while driving. This can happen if the ECM is not properly commanding the fuel injectors or ignition coils.

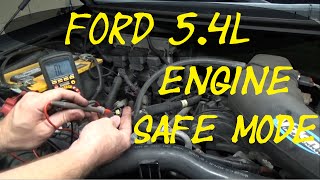

• Check Engine Light: A malfunctioning ECM will often trigger a Check Engine Light. Specific codes related to internal module failure include P0600 through P0605. You may also see a flood of seemingly unrelated sensor codes, 🎬 See a real-time walkthrough of troubleshooting multiple failsafe codes. which can point to a shared power or ground issue originating from the ECM.
• No Communication with Scan Tool: One of the most definitive signs of a dead ECM is when a diagnostic scan tool cannot communicate with the module at all. This indicates a total failure of the unit or a loss of its main power or ground connection.
• Erratic Engine Behavior: This can include rough idling, misfires on one or more cylinders, poor acceleration, and decreased fuel economy.
• Immobilizer (PATS) Light Flashing: If the anti-theft light on the dashboard is flashing rapidly when you try to start the vehicle, it indicates the ECM is not recognizing the key, a common issue after an incorrect ECM replacement.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no specific recalls for the ECM itself on the 2007-2008 Expedition, several related service actions are worth noting.

• NHTSA Recall 07V363000: Affects some 2007 models with the 5.4L engine. A fuel rail cross-over hose could crack and leak fuel, which is a fire hazard.
• NHTSA Recall 08V391000: Affects 2007-2008 models. The interior door handle spring mechanism could fail.
• TSB SSM 46085: Ford issued revised diagnostic procedures for the electronic throttle body (ETB), noting that certain data PIDs should not be used for diagnosis.
• TSB SSM 47331: Notes that 5.4L 3-valve engines may exhibit upper end noise, rough running, or misfires due to issues with valvetrain components. These symptoms can sometimes be misdiagnosed as an ECM problem.

Buying a Used 2007-2008 Expedition ECM

Purchasing a used OEM ECM is a cost-effective option, but careful attention to detail is required to ensure compatibility and a successful repair. A used module must be correctly programmed to your vehicle to function.

1. Match the Part Number Exactly

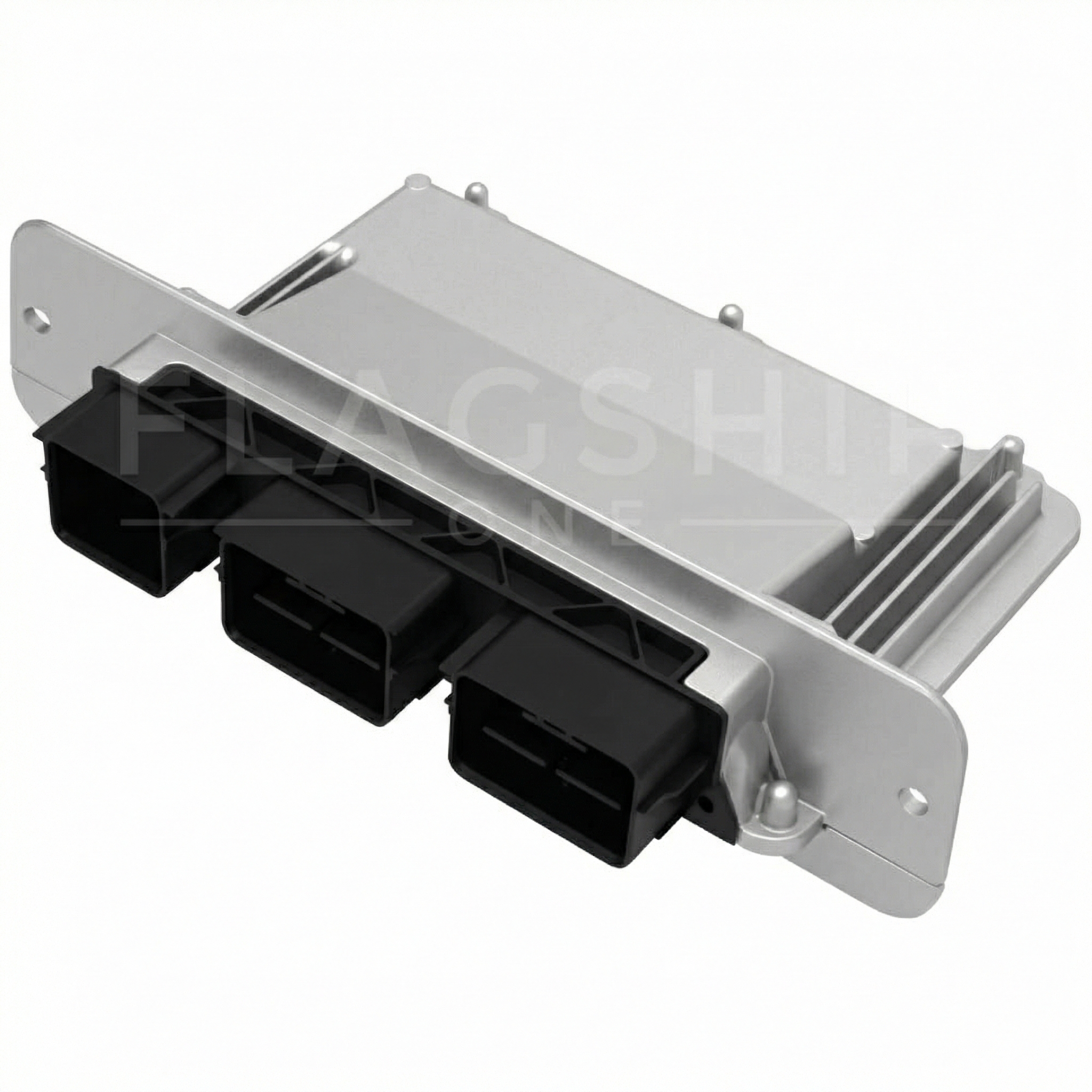

The most critical step is to match the OEM part number from your original module. The part number is printed on a sticker on the ECM's case. For this generation of Expedition, you are looking for numbers like 7L1A-12A650-ABD or 7L1A-12A650-ABE. Even a small difference in the suffix (the last letters) can mean a different calibration for another engine, transmission, or emissions package, which will not work correctly.

2. Verify Vehicle Specifications

These specific ECMs are for a 2007-2008 Ford Expedition with a 5.4L V8 engine and Federal emissions. Ensure the donor vehicle had the same configuration. Using an ECM from a vehicle with different options can cause compatibility issues.

3. Physical Inspection

When you receive the used ECM, inspect it carefully. Look for:

• Corrosion: Check the connector pins for any green or white corrosion, which indicates water damage.
• Case Damage: Look for signs that the case has been pried open or physically damaged.
• Burnt Smell: A strong electronic burning smell is a red flag for internal failure.

ECM Programming and Immobilizer (PATS) Requirements

This is the most important part of the replacement process. You cannot simply install a used ECM and start the truck. The vehicle will not start until the module is programmed.

What is PATS?

PATS is Ford's immobilizer system. The ignition keys contain a transponder chip that communicates with the ECM. If the key's code doesn't match the code stored in the ECM, the system disables the fuel and ignition, preventing the engine from starting. When you swap the ECM, the new module has the key data from its donor vehicle, not yours.

Who Can Program the ECM?

Programming requires specialized tools and software. You have a few options:

• Ford Dealership: They have the factory tools (IDS) and can guarantee a successful program. This is often the most reliable, but also the most expensive, option.
• Automotive Locksmith: Many mobile locksmiths have advanced scan tools (like Autel or Snap-on) and subscriptions that allow them to perform a "parameter reset" and program new keys to the replacement ECM.
• Independent Repair Shop: A well-equipped independent shop that services Ford vehicles will likely have the necessary J2534 pass-thru device and a subscription to Ford's software to perform the programming.

The process, often called a "parameter reset," involves connecting a diagnostic tool, gaining security access (which can involve a 10-minute wait), and instructing the new ECM to learn your vehicle's existing keys. A minimum of two keys is required to complete the programming process.

Cost Comparison

The cost of replacing an ECM can vary significantly based on the part source and labor for programming.
