2012 Ford Fusion ECM: Understanding Part Number AE5A-ERE and Mandatory Programming
This guide explains why matching the engine control module (ECM) part number and performing a mandatory PATS security relearn are critical for a successful replacement.
- Programming is mandatory. A replacement ECM will not start the car until it is programmed to your VIN and the PATS security system is reset by a dealer, locksmith, or qualified shop.
- The part number must be an exact match. The engineering number on the sticker (e.g., AE5A-ERE) must match your original module.
- Different engines use different ECMs. The part number for a 2.5L engine is not the same as the one for a 3.0L or 3.5L V6 engine.
- On V6 models, a failed ignition coil can destroy the ECM. If you have P035x codes, you must replace all coils and plugs with the ECM.
Symptoms of a Failing 2012 Fusion ECM
ECM failure is uncommon, and it's important to rule out simpler issues like bad sensors, wiring problems, or a weak battery before condemning the module. However, a faulty ECM can cause significant and often confusing problems. Look for these signs:
- Check Engine Light: An illuminated Check Engine Light is a common symptom. Codes related to internal module failure, such as P0606, P060A, or P060C, are strong indicators of an ECM problem. You may also see a flood of seemingly unrelated sensor codes.
- No-Start or Intermittent Starting: The engine may crank but fail to start, or start unreliably. This happens because the ECM is not correctly commanding the fuel injectors or ignition coils to fire.
- Engine Stalling or Misfiring: The engine may stall unexpectedly, run rough, or misfire. This can be caused by the ECM failing to provide the correct fuel and spark commands.
- Poor Engine Performance and Fuel Economy: A noticeable drop in power, acceleration, and gas mileage can occur if the ECM is not managing the engine efficiently.
- Harsh or Erratic Transmission Shifting: The ECM communicates with the transmission control module (TCM). Faulty signals from the ECM can lead to harsh, delayed, or incorrect gear shifts. This is a widely reported issue on this generation of Fusion.
Known Issues and Technical Service Bulletins (TSBs)
While there are no specific recalls for the ECM on the 2012 Ford Fusion, there are related issues and service bulletins to be aware of:
- Ignition Coil Failure (V6 Engines): On 2010-2012 Fusions with the 3.0L or 3.5L V6 engines, a very common point of failure is a shorted ignition coil sending a voltage spike back to the ECM, damaging the internal driver circuit for that coil. This will typically set a diagnostic trouble code between P0351 and P0356 (Ignition Coil Primary/Secondary Circuit). If you have one of these codes, it is critical to replace all ignition coils and spark plugs when you replace the ECM to prevent immediate damage to the new unit. 🎬 See how melted ignition coils can destroy your ECM
- TSB 12-1-18: Ford issued this bulletin for some vehicles that may exhibit a 'Stop Safely Now' message or a no-start condition, which can be related to powertrain control issues.
- Harsh Shifting: Many owners report issues with harsh or delayed automatic transmission shifting, which has been linked to problems with the powertrain control module's software or hardware.
Pro Tip: Before replacing the ECM for a no-start condition, always check the basics first. Ensure the battery is fully charged and the terminals are clean. Check fuses and relays related to the starter and PCM. A simple issue can often mimic complex computer problems.
Buying a Used 2012 Ford Fusion ECM
Purchasing a used ECM can be a cost-effective solution, but it requires careful attention to detail. This is not a simple plug-and-play part.
1. Match the Part Number EXACTLY
This is the most important rule. The engineering part number printed on the label of your original ECM must match the one you are buying. For the 2012 Fusion, this number will typically look like AE5A-12A650-ERE. The 'AE5A' prefix and 'ERE' suffix are critical hardware and software identifiers.
- The part number AE5A-ERE (and its longer forms AE5A-12A650-ERE or AE5Z-12A650-ERE) is typically for the 2.5L 4-cylinder engine.
- V6 models (3.0L and 3.5L) use different part numbers, such as AE5A-12A650-EVE or AE5A-12A650-FSB.
Installing an ECM with the wrong part number will result in a no-start condition or severe drivability problems, even after programming.
2. Programming is NOT Optional
A used ECM will not start your car after installation. It must be professionally programmed to your vehicle. This process involves two key steps:
- VIN Programming: The module's software must be configured for your car's specific Vehicle Identification Number (VIN) and options.

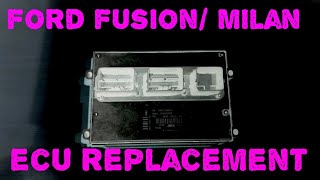

- PATS Parameter Reset: The ECM is a core component of Ford's Passive Anti-Theft System (PATS). A 'parameter reset' must be performed to 'marry' the replacement ECM to your car's existing security module and keys. Without this step, the PATS system will prevent the engine from starting. 🎬 Watch: How to perform a PATS parameter reset after installation
3. Who Can Program a Replacement ECM?
You have several options for programming, as this requires specialized tools and software.
- Ford Dealership: The most reliable, but often most expensive, option. They use Ford's proprietary IDS software.
- Qualified Independent Auto Repair Shop: Many modern shops have a J2534 Pass-Thru device and a subscription to Ford's diagnostic software, allowing them to perform the same programming as a dealer.
- Automotive Locksmith: Many locksmiths specialize in automotive security and have the tools to perform a PATS parameter reset and key relearn. This is often a very convenient and cost-effective choice.
- Mail-In Services: Some companies allow you to mail in your original and replacement ECMs for them to clone the data. This can work, but is not an option if your original module is completely dead.
Warning: You cannot simply swap the ECM and keys from a donor car. The ECM is linked to other modules in the vehicle, not just the keys. A full parameter reset is required.
4. Physical Inspection
When your used part arrives, inspect it carefully. Check the connectors for any signs of corrosion, bent pins, or water damage. Look at the case for any evidence that it has been opened, which could indicate a failed repair attempt.
Replacement Cost Comparison
The cost of replacing a 2012 Fusion ECM varies significantly based on the part source and labor for programming.
| Part Type | Estimated Part Cost | Notes |
|---|---|---|
| New OEM | $600 - $1000 | Ordered from a Ford dealership. Often has a core charge. |
| Remanufactured | $150 - $400 | A very common option from companies like Cardone or online vendors. |
| Used OEM | $50 - $150 | Lowest part cost, but still requires expensive programming. |
| Shop Labor (Installation) | $50 - $100 | Physical replacement is quick (under 1 hour). The ECM is behind the battery. | 🎬 Watch: Step-by-step guide to removing and replacing the PCM
| Shop Labor (Programming) | $125 - $300 | This is the critical cost. A dealer will be on the higher end; a locksmith or independent shop may be less. |
Frequently Asked Questions (FAQ)
Where is the ECM located on a 2012 Ford Fusion?
The ECM is located in the engine compartment, mounted to the firewall behind the battery and the battery tray. You will need to remove the battery and its tray to access the module's mounting bolts and electrical connectors.
Do I really need to program a replacement ECM?
Yes, programming is absolutely mandatory. The vehicle will not start without it. The replacement ECM must be programmed to your car's VIN and synchronized with the PATS anti-theft system through a 'parameter reset' procedure.
Can I use an ECM from a different year or engine size?
No. You must use an ECM with the exact same engineering part number (e.g., AE5A-ERE) from a 2012 Fusion with the same engine. Modules for the 2.5L, 3.0L, and 3.5L engines are not interchangeable.
Will the car start if I swap the ECM, ignition cylinder, and key from a donor car?
No, this will not work. The ECM is also linked to other modules in the car, like the instrument cluster and body control module, as part of the PATS security system. Simply swapping the key and ignition will not bypass the security, and the car will not start.
What is FORScan and can I use it to program the ECM myself?
FORScan is a powerful diagnostic software for Ford vehicles. With an extended license (which is free) and a compatible OBD-II adapter, it is technically possible for an advanced user to perform the PATS parameter reset. However, it is a complex procedure with a high risk of error for beginners. For most owners, it is safer and more efficient to have a professional perform the programming.
Helpful Videos
Technical Specifications
OEM Part Numbers: AE5A-ERE AE5A12A650ERE AE5Z12A650ERE AE5A-12A650-ERE
Location: Engine bay, on the firewall, behind the battery tray. Security: Integrated with Ford's Passive Anti-Theft System (PATS).
