2021-2025 Ford Mustang Mach-E Powertrain Control Module (PCM): Recalls, Programming, and Replacement

What is the Powertrain Control Module (PCM) in a Mustang Mach-E?

The Ford Mustang Mach-E, being a fully electric vehicle, does not have a traditional Engine Control Module (ECM). Instead, it uses a Powertrain Control Module (PCM) as its primary computer for managing the electric drivetrain. You will often see the part referred to as an ECM or even an "Engine Control Unit (ECU)" in parts catalogs and online listings, but its function is to control the electric motors and battery systems, not an internal combustion engine. The PCM is responsible for processing driver inputs, managing battery charging and temperature, controlling motor output, and ensuring all related systems work together safely and efficiently.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

The PCM is central to the most significant recall affecting the 2021-2022 Mustang Mach-E.

Recall 22S41 & 23S56: The "Stop Safely Now" Defect

This is the most widely known issue for early Mach-E models, particularly those with the extended-range battery or GT trims built before May 24, 2022.

• The Problem: The high-voltage battery main contactors—large electronic switches inside the High Voltage Battery Junction Box (HVBJB)—can overheat after repeated DC fast-charging sessions or aggressive acceleration. This overheating can cause the contactors to stick open or weld themselves shut.
• The Symptom: If the contactors fail open while driving, the vehicle will display a "Stop Safely Now" message in the instrument cluster, along with a powertrain malfunction warning light. This results in an immediate and total loss of motive power, causing the vehicle to coast to a stop. Power steering and brakes remain functional. If the contactors weld shut, the vehicle may fail to start on the next attempt.

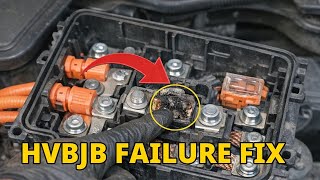

• The Fix: Ford's solution was a multi-stage process. The initial recall (22S41) involved a software update to the PCM and other modules to better monitor contactor temperatures and reduce power if they got too hot. This was a temporary mitigation, not a root cause fix. 🎬 Watch: Understanding the HVBJB contactor overheat and software fix The subsequent recall (23S56) mandated the physical replacement of the High Voltage Battery Junction Box (HVBJB) on affected models.

TSB 25-2216: 1-Pedal Drive Fault

Some owners may experience a "1 Pedal Drive Fault - Press Brake Pedal To Reduce Speed" warning message. This may be accompanied by Diagnostic Trouble Code (DTC) P0C2F:92. The official fix is to have a dealer reprogram the powertrain modules, including the PCM, using the Ford Diagnostic and Repair System (FDRS).

Symptoms of a Failing Powertrain Control Module

A failing PCM can cause a wide range of issues, from minor glitches to complete vehicle shutdown. Because the PCM's software is so integral, many problems are software-related and can be fixed with an update.

• "Stop Safely Now" Message: As detailed above, this is the most critical failure symptom, often linked to the HVBJB recall but managed by the PCM's software.
• "Powertrain Malfunction" Warning Light: A general wrench or engine-shaped icon may appear, indicating the PCM has detected a fault somewhere in the electric drive system.
• No-Start Condition: The vehicle refuses to power on or enter a "ready to drive" state. This can be caused by a failed PCM or a related component that the PCM relies on.
• Loss of Specific Features: Problems with 1-Pedal Drive, charging, or other powertrain-related functions can point to a PCM software glitch or hardware failure.
• Communication Errors: Multiple warning lights and error messages for unrelated systems can sometimes be caused by a PCM that is failing and sending bad data across the vehicle's network.

Buying a Used Mustang Mach-E PCM: What You MUST Know

Buying a used PCM for a modern vehicle like the Mach-E is extremely risky and should be approached with caution. It is NOT a simple plug-and-play part.

1. Programming is Mandatory and Complex: A replacement PCM, whether new or used, absolutely must be programmed to your specific vehicle. This process involves more than just loading software; it requires a "Parameter Reset" to sync the module with the vehicle's Passive Anti-Theft System (PATS) and other computers.
2. Dealer Tools are Required: This programming requires Ford's official FDRS software, a paid subscription, and a specific J2534 communication device. While technically possible for advanced DIYers with hundreds of dollars in tools and licenses, it is realistically a dealer or highly specialized independent shop task.

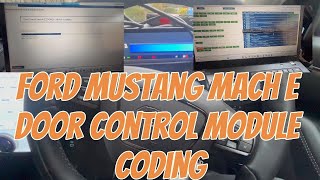

🎬 See how FDRS programming works for Ford powertrain modules
3. Risk of VIN Locking: Many modern control modules become "locked" to the first vehicle they are installed in. While the general Ford PATS procedure suggests a used module *can* be reset, there is a significant risk that a used Mach-E PCM cannot be successfully reprogrammed for a new vehicle. Some used parts sellers even list these modules as "For Parts Only" with no returns, highlighting this risk.
4. Software Compatibility: The software on a used module may be outdated and lack critical safety updates from recalls like 22S41. Even if you successfully program the module to your car, it will still require further updates at a dealership to be safe and fully functional.

Verdict: Unless you are a professional with access to and expertise with Ford's FDRS system, purchasing a used PCM is not recommended. The cost of dealer diagnosis and programming can easily exceed the price of a new module, and you may be left with a part that cannot be used.

Cost of Replacing a Mustang Mach-E PCM

The cost can be broken down into the part itself and the labor for programming and installation.

Frequently Asked Questions (FAQ)
