2003 Ford Taurus & Mercury Sable ECM: Solving Stalling, No-Start, and PATS Programming

Symptoms of a Failing ECM

A faulty Engine Control Module can cause a wide range of confusing and intermittent problems. Because the ECM controls so many different systems, its failure can often be misdiagnosed as a bad sensor or other component. Always perform a thorough diagnosis before condemning the ECM. Key symptoms include:

• Check Engine Light: An illuminated Check Engine Light is a common symptom. Codes related to internal module failure (like P0605), memory errors, or communication faults (U-codes) are strong indicators of an ECM problem. However, a faulty ECM can also cause other codes by misinterpreting sensor data.
🎬 See how a technician diagnoses Ford PCM program error codes
• Engine Performance Issues: Stalling for no reason, engine misfires, rough idling, hesitation, and sudden power loss are classic signs. These issues may be intermittent, making them difficult to diagnose.
• No-Start or Hard Starting: The vehicle may crank but refuse to start. This can happen if the ECM isn't firing the ignition coils, pulsing the fuel injectors, or communicating with the anti-theft system.
• Poor Fuel Economy: A sudden, unexplained drop in gas mileage can occur if the ECM is commanding an incorrect air-fuel mixture.
• Automatic Transmission Problems: On the 2003 Taurus and Sable, the ECM also controls the transmission. A failing module can cause harsh, erratic, or delayed shifting.
• No Communication with Scan Tool: If a diagnostic scan tool cannot communicate with the ECM, it's a strong sign the module itself has failed.

Known Issues, Recalls, and TSBs

While there are no direct recalls for the ECM on the 2003 Ford Taurus and Mercury Sable, several related service campaigns and common problems are worth noting:

• Throttle Cable Investigation (Customer Satisfaction Program): NHTSA investigated an issue on 2000-2003 models where the speed control cable collar could break, potentially causing the throttle to stick. Ford initiated a customer satisfaction program to inspect and replace the cables rather than a formal recall.
• Stop Lamp Switch Recall (NHTSA Recall No. 04V106000): A recall was issued for a malfunctioning stop lamp switch that could cause the brake lights to either stay on or not work at all.
• Air Filter Smoldering (NHTSA Recall No. 03V099000): An issue was identified where the air filter paper could smolder or burn, potentially leading to an underhood fire.
• Common Failure Modes: Like many electronic modules of this era, the ECM can be susceptible to failure from water intrusion, corrosion on the connectors or circuit board, and internal solder joint cracks caused by heat and vibration.

Programming and Anti-Theft (PATS): The Most Critical Step

A replacement ECM for a 2003 Ford Taurus or Mercury Sable WILL NOT work until it is programmed to the vehicle. These vehicles are equipped with Ford’s Passive Anti-Theft System (PATS), which links the ignition keys to the ECM. If you install a new or used ECM, the car will crank but will not start until the PATS system is initialized.

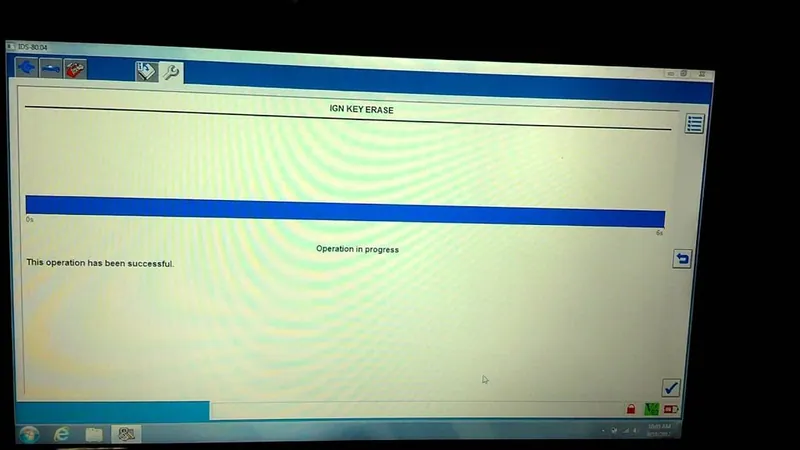

This process is often called a "parameter reset." It tells the vehicle's security module to accept the new ECM. After the parameter reset, at least two keys must be programmed to the system.

Who Can Program the ECM?

• Ford Dealership: The most reliable, but often most expensive, option. They have the correct tools (Ford IDS) and direct access to factory procedures.
• Qualified Independent Shop: Many modern repair shops have high-end scan tools (like Snap-on or Autel) or a subscription to Ford's diagnostic software that can perform the parameter reset and key programming.
• Automotive Locksmith: Mobile locksmiths who specialize in modern car keys are often equipped to program Ford ECMs and PATS keys, sometimes at a lower cost than a dealership.

Buying a Used Engine Control Module (ECM)

A used OEM ECM is often a reliable and cost-effective alternative to an expensive new or remanufactured unit. Since these modules are not high-wear items, a used one from a reputable source can provide years of service. Here’s what to look for:

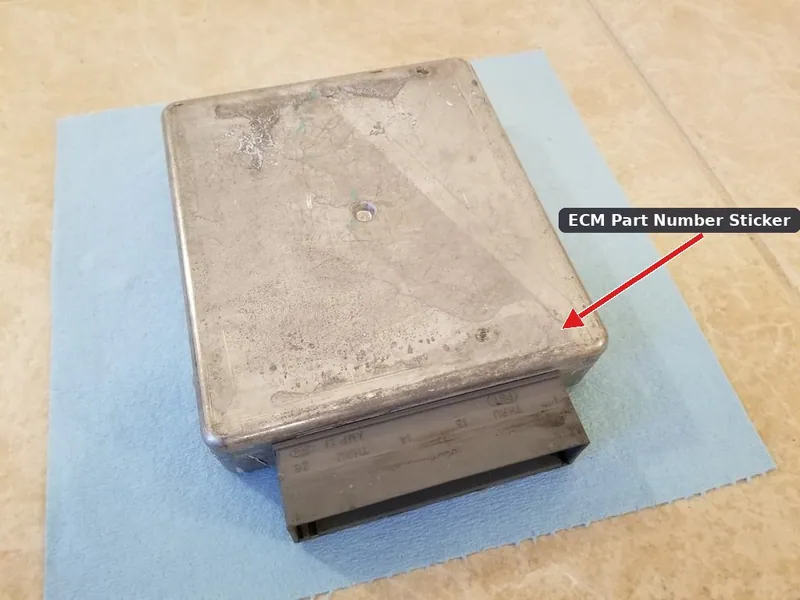

• Match the Part Number Exactly: This is the most important rule. The part number sticker on the ECM case must match your original unit. Part numbers like 3F1A-12A650-JC are specific to certain engine, transmission, and emissions calibrations. Using the wrong part number can lead to performance issues or a no-start condition, even after programming.
• Inspect for Physical Damage: Check the casing for cracks or signs of being pried open. Most importantly, inspect the electrical connector pins. They should be straight and free of any green or white corrosion, which indicates water damage.
• Buy From a Reputable Source: Purchase from an automotive recycler that offers a warranty. This protects you in case the module is faulty.
• Factor in Programming Costs: Remember that the cost of the used part is only one piece of the puzzle. You must budget for professional installation and programming.

Replacement Location and Procedure Overview

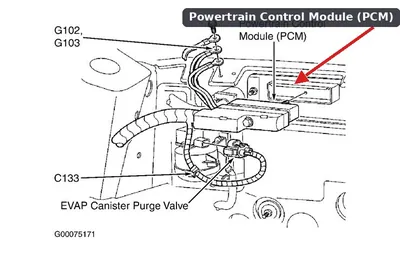

On the 2003 Ford Taurus and Mercury Sable, the ECM is located in the engine compartment, mounted to the firewall on the passenger side.

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on any electronic components.
2. Locate the ECM: Find the module on the passenger-side firewall.
3. Disconnect Electrical Connector: A single large electrical connector is attached to the ECM, typically secured by a 10mm bolt in the center. Loosen this bolt until you can pivot the lever and pull the connector straight off.
4. Unbolt the Module: Remove the bolts holding the ECM to the firewall.
5. Install the Replacement ECM: Bolt the new module in place, reconnect the electrical harness, and tighten the center bolt. Reconnect the battery.
6. Arrange for Programming: At this point, the vehicle is immobilized. It must be towed to a dealer or shop, or you must have a mobile technician come to you to program the ECM and keys.

Cost of Replacing a 2003 Taurus or Sable ECM

Costs can vary significantly based on the part source and labor rates in your area.
