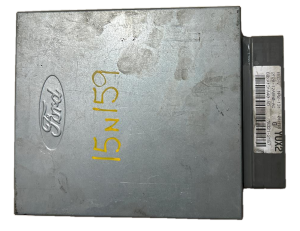

2002 Ford Windstar 3.8L ECM: A Guide to Programming, Problems, and Replacement
This guide covers the essential information for diagnosing, replacing, and programming the Engine Control Module (ECM) in a 2002 Ford Windstar, with a focus on the critical anti-theft system requirements.
- Programming is NOT optional. The vehicle will not start with a replacement ECM until it is programmed to the vehicle's anti-theft system (PATS) by a dealer or locksmith.
- You must match the part number exactly. The primary number is 2F2A-12A650-AC with calibration code 2F2A-AC.
- A failing ECM can cause a wide variety of symptoms, including no-start, stalling, poor performance, and transmission issues.
- Rule out all other possibilities first. ECM failure is less common than sensor, wiring, or fuel system failures.
Known Issues, Recalls, and TSBs
While there are no specific recalls for the Engine Control Module itself on the 2002 Ford Windstar, several major recalls and Technical Service Bulletins (TSBs) are important for owners to be aware of. Some powertrain symptoms could be related to these issues rather than a faulty ECM.
- Rear Axle Corrosion and Fracture: A significant recall (NHTSA Campaign 10S13) was issued for 1998-2003 Windstars due to rear axle corrosion that could lead to fracture. A follow-up recall addressed brackets that may have been installed incorrectly during the initial repair. While not directly related to the ECM, a failure in the rear of the vehicle could damage wiring or cause erratic signals.
- Front Subframe Corrosion: Another major corrosion-related recall (NHTSA Campaign 11S16) involves the front subframe, where the lower control arm could detach, leading to a loss of steering control.
- Speed Control Deactivation Switch: A recall was issued for a faulty speed control deactivation switch that could leak, potentially causing an electrical short and fire. In some cases, this required inspection of the ABS control module connector for related damage.
- Hard Start/Long Crank TSB: TSB #15926 and #15864 were issued for intermittent hard starting or long cranking times, which could be misdiagnosed as an ECM problem.
Symptoms of a Failing ECM
A failing ECM can cause a wide range of problems, often intermittent and difficult to diagnose. 🎬 Watch: Common signs and symptoms of a failing ECU Because the ECM controls so many functions, it's important to rule out simpler issues like bad sensors or wiring first.
- Check Engine Light: A constant or intermittent Check Engine Light is one of the most common signs.
- Engine Performance Problems: This includes rough idling, engine stalling for no reason, misfires, stuttering, hesitation on acceleration, and a sudden loss of power.
- No-Start or Intermittent Starting: The engine may crank but fail to start, or it may start unreliably. This can be due to a loss of spark or fuel injector pulse signals from the ECM.
- Poor Fuel Economy: A sudden drop in gas mileage can occur if the ECM is sending incorrect signals for the air-fuel mixture.
- Automatic Transmission Shifting Issues: The ECM provides data to the transmission control module. A faulty ECM can cause harsh, erratic, or delayed shifting.
- Loss of Communication: An OBD-II scanner may be unable to communicate with the vehicle's computer, pointing to a complete ECM failure. 🎬 See more bad ECM symptoms you should not ignore
Warning: The ECM should be the last component replaced after all other potential causes—such as sensors, wiring, fuel pump, and ignition components—have been thoroughly tested and ruled out.
Programming and Immobilizer Information
THIS IS THE MOST CRITICAL PART OF REPLACING THE ECM. The 2002 Ford Windstar is equipped with Ford’s Passive Anti-Theft System (PATS). This system links the ignition keys to the ECM. If you install a replacement ECM, the vehicle will not start until the keys are reprogrammed to the new module.
- Programming is Required: A replacement ECM, whether it is new, used, or remanufactured, MUST be programmed to your vehicle's VIN and synchronized with the PATS.
- Parameter Reset: The procedure involves more than just programming keys; it requires a special function called a "Parameter Reset." This tells the vehicle's anti-theft system that a new ECM has been installed. Without this step, the keys will not be recognized by the new module.
- Who Can Program It? This procedure requires a specialized scan tool with PATS access. A Ford dealership or a well-equipped independent automotive locksmith can perform this service. Many mobile mechanics also have this capability. It is not a DIY-friendly procedure without the correct, expensive tools and software. 🎬 Watch: Step-by-step guide to programming Ford PATS keys
- Key Requirement: A minimum of two keys is typically required to complete the programming process after the system has been reset.
Pro Tip: Before buying a used ECM, confirm with a local dealer or locksmith that they are willing and able to program a customer-supplied module. Some shops may refuse or charge a premium. Expect a 10-minute security access delay during the programming process.
Buying a Used Engine Control Module for Your 2002 Windstar
Purchasing a used OEM ECM is a cost-effective option, but careful verification is essential to avoid compatibility issues.
- Match the Part Number EXACTLY: The most important step is to match the OEM part number and the calibration ID code. For the 2002 Windstar with a 3.8L engine, the primary part number is 2F2A-12A650-AC. The calibration ID is often shown as 2F2A-AC. Other compatible part numbers may include 2F2A-12A650-AA, AB, DB, and DC. Always match the number printed on your original module.
- Physical Inspection: When you receive the used module, inspect it for any signs of physical damage. Check for corrosion on the pins, cracks in the casing, or signs of water intrusion. Do not install a module that appears damaged.
- Source from a Reputable Seller: Buy from sellers who offer a warranty and have good reviews. This provides some protection if you receive a defective part.
- Understand the Full Cost: Remember to factor in the cost of programming by a professional. The price of the part is not the final cost of the repair.
Replacement Cost Breakdown
Prices can vary significantly based on the source of the part and local labor rates.
| Item | Estimated Cost | Notes |
|---|---|---|
| New OEM | $350 - $500+ (if available) | Often discontinued for older vehicles. Price is for the part only. |
| Remanufactured | $200 - $400 | Commonly sold by specialty retailers. Often comes pre-programmed to your VIN, but may still require a key relearn/parameter reset on-site. |
| Used OEM | $50 - $150 | Sourced from salvage yards. Requires professional programming. |
| Shop Labor (Installation) | $100 - $200 | The physical swap is relatively quick, usually less than an hour of labor. |
| Shop Labor (Programming) | $120 - $250 | Typically 1-1.5 hours of labor at a dealership or locksmith. |
| Total Estimated Cost (Used Part) | $270 - $600 | Includes used part, installation, and programming. |
Frequently Asked Questions (FAQ)
Can I install the ECM myself and drive it to the dealer for programming?
No. Once you install the replacement ECM, the vehicle's anti-theft system will activate, and the engine will not start. The vehicle will need to be towed to the programming location or have a mobile service come to you.
Does the replacement ECM need to be from a vehicle with the same mileage or options?
No, the mileage and options are not stored in the ECM in a way that affects compatibility for this model. The critical information is the part number and the subsequent VIN and PATS programming.
What is the difference between an ECM, PCM, and ECU?
For the 2002 Windstar, the terms Engine Control Module (ECM), Powertrain Control Module (PCM), and Engine Control Unit (ECU) are used interchangeably to refer to the same part. It controls both the engine and transmission functions.
My mechanic says my ECM is bad, but the Check Engine light isn't on. Is that possible?
Yes. While a Check Engine Light is a common symptom, an ECM can fail in ways that cause performance issues like stalling or no-start conditions without illuminating the light. It can also fail completely, preventing any communication or power-up, in which case no lights would come on.
Helpful Videos
Technical Specifications
OEM Part Numbers: 2F2A-12A650-AC 2F2A12A650AC 2F2Z-12A650-AC 2F2A-12A650-AA 2F2A-12A650-AB 2F2A-12A650-DB 2F2A-12A650-DC
Hardware Type: MP2-131
