2017 Genesis G80 Engine Control Module (ECM): Programming, Problems, and Replacement

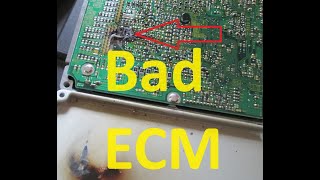

Symptoms of a Failing 2017 Genesis G80 ECM

A failing Engine Control Module can cause a wide range of issues, from minor annoyances to critical failures that prevent the vehicle from starting. Because the ECM controls so many engine functions, symptoms can sometimes be mistaken for other problems. Always perform a thorough diagnosis before replacing the module.

• Check Engine Light: The most common sign of an ECM problem is an illuminated Check Engine Light. The ECM stores a Diagnostic Trouble Code (DTC) that can be read with a scan tool to help identify the issue.
• Engine Performance Issues: You might experience engine stuttering, misfires, a sudden loss of power, or a noticeable drop in fuel economy. This happens when the ECM can no longer correctly calculate the air-fuel mixture or ignition timing.
• Car Won't Start: A completely failed ECM can leave your G80 without any engine management, preventing it from starting at all. The engine may crank but will not fire up because it's not receiving the necessary instructions from the computer.
• Rough or Irregular Shifting: Since the ECM communicates with the transmission controller, a faulty ECM can lead to harsh shifting, delays, or other transmission-related problems.
• Stalling: The engine may stall intermittently or shut off for no apparent reason, which can be a sign of an erratic ECM.

Common Diagnostic Trouble Codes (DTCs)

While many codes can point to an ECM issue, some are more directly related. Communication error codes like U0100 (Lost Communication with ECM/PCM) are a strong indicator. Additionally, multiple unrelated codes for various sensors (e.g., injector circuit malfunctions P0201-P0208 or ignition coil circuit faults P0351-P0358) appearing at once can suggest a problem with the computer itself rather than the individual components.

Known Issues, TSBs, and Recalls

While there are no specific recalls for the Engine Control Module on the 2017 Genesis G80, there are some related service bulletins and recalls for other electronic modules that are important to be aware of.

• ABS Module Recall (NHTSA ID: 21V-160): A significant recall was issued for 2017-2020 Genesis G80 vehicles because the Anti-Lock Brake System (ABS) module could malfunction and cause an electrical short, potentially leading to an engine compartment fire, even while parked. The remedy involves dealers replacing the ABS module fuse. Owners were advised to park their vehicles outside and away from structures until the repair was completed.
• Transmission Solenoid TSB (21-AT-010HG): For 2017 G80 models produced between 3/17/2016 and 1/11/2017, a Technical Service Bulletin was issued to address slipping, shift flares, or harsh upshifts. The procedure involves replacing specific transmission solenoids.
• Starter Solenoid Recall: Some 2017-2019 G80 models were recalled because water could enter the starter solenoid, causing an electrical short and increasing the risk of an engine fire.

Programming and Installation Requirements

This is the most critical step of the replacement process. A replacement ECM, whether new or used, will not work by simply plugging it in. It must be professionally programmed to your vehicle's specific Vehicle Identification Number (VIN) and options.

• Programming Required: The ECM is linked to the vehicle's anti-theft immobilizer system. Without proper programming, the car will not start.
• Who Can Program It? This procedure requires specialized computer equipment. While a Genesis dealership is the most straightforward option, some well-equipped independent auto repair shops or mobile automotive locksmiths may have the necessary tools to program the module.
• Cloning Services: Some companies offer a 'cloning' service where they transfer the data from your original ECM to the replacement unit. This can sometimes create a 'plug-and-play' solution, but requires you to send your old module to them.

Buying a Used 2017 G80 ECM

Purchasing a used OEM ECM can offer significant savings over a new unit. However, it's essential to verify compatibility and inspect the part carefully.

• Verify the Part Number: The most important step is to match the part number exactly. The correct OEM part number for the 2017 Genesis G80 with a 3.8L engine and without active grille shutters is 39104-3CEN0.
• Check Compatibility: This specific ECM is for models with the 3.8L V6 engine. Crucially, it is for vehicles WITHOUT active grille shutters. Active grille shutters are flaps in the grille that open and close to improve aerodynamics and were an option on these vehicles. Ensure the donor vehicle's options match your own.
• Physical Inspection: When you receive the used ECM, inspect it for any signs of physical damage, corrosion on the pins, or evidence of water intrusion. The casing should be clean and all connectors intact.
• Source and Warranty: Buy from a reputable seller that offers a warranty. This protects you in case the module is faulty or cannot be programmed.

Cost Comparison

The cost of replacing an ECM can vary widely based on the source of the part and labor rates.

Note: Prices are estimates and can change based on supplier and location. Programming costs may be billed separately.

Frequently Asked Questions (FAQ)
