2024 Honda Accord Hybrid ECM: A Guide to Programming, Part Numbers, and Replacement

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As the 2024 Accord is a relatively new model, long-term common failures for the ECM are not yet widely documented. However, several official communications from Honda are relevant.

• ICM Software Update Recall (NHTSA 25V785): Honda issued a recall for 2023-2025 Accord Hybrid models due to improper software programming in the Integrated Control Module (ICM). This could cause the ICM's central processing unit (CPU) to reset during operation, potentially leading to a loss of drive power. The remedy is for a dealer to reprogram the ICM CPU with updated software.
• High-Pressure Fuel Pump Recall: Some 2023-2024 Accord models are part of a recall where the high-pressure fuel pump may crack and leak fuel, increasing fire risk. While not an ECM issue, symptoms like a fuel smell could be related to this recall.
🎬 Watch: A detailed breakdown of the Honda fuel pump recall
• Seat Belt Pretensioner Recall (NHTSA #23V782000): Affects 2023-2024 Accords where a missing rivet in the front seat belt pretensioners could prevent them from working correctly in a crash.
• Driver's Seat Frame Recall (TSB 24-128): A small number of 2023-2024 Accords may have improperly torqued bolts on the driver's seat cushion frame, which could cause the seat to become loose.
• Climate Control Noise (TSB 24-055): A service bulletin was released for a creaking noise from the dashboard when switching between fresh and recirculated air, caused by a lack of grease in the recirculation motor assembly.

Symptoms of a Failing ECM

A faulty ECM can manifest in various ways, from subtle issues to a complete no-start condition. Because ECM failure is uncommon on a new vehicle, it's important to rule out other causes like bad sensors or wiring first.

• Check Engine Light: This is the most common indicator. Specific codes in the P06xx range, such as P1607 (ECM/PCM Internal Circuit Failure), point directly to an internal module problem.
• Engine Performance Problems: You may experience engine stalling, misfiring, surging, poor acceleration, or a sudden drop in fuel economy.
• Car Will Not Start: The engine may crank but fail to start because the ECM is not commanding the fuel injectors or ignition coils to fire. This is a primary symptom if a replacement ECM has been installed but not programmed.
• Transmission Issues: A faulty ECM can send incorrect data to the transmission control module, leading to rough or delayed shifting.
• Hybrid System Malfunctions: On the Accord Hybrid, a bad ECM could cause issues with the battery charging or the transition between electric and gasoline power.

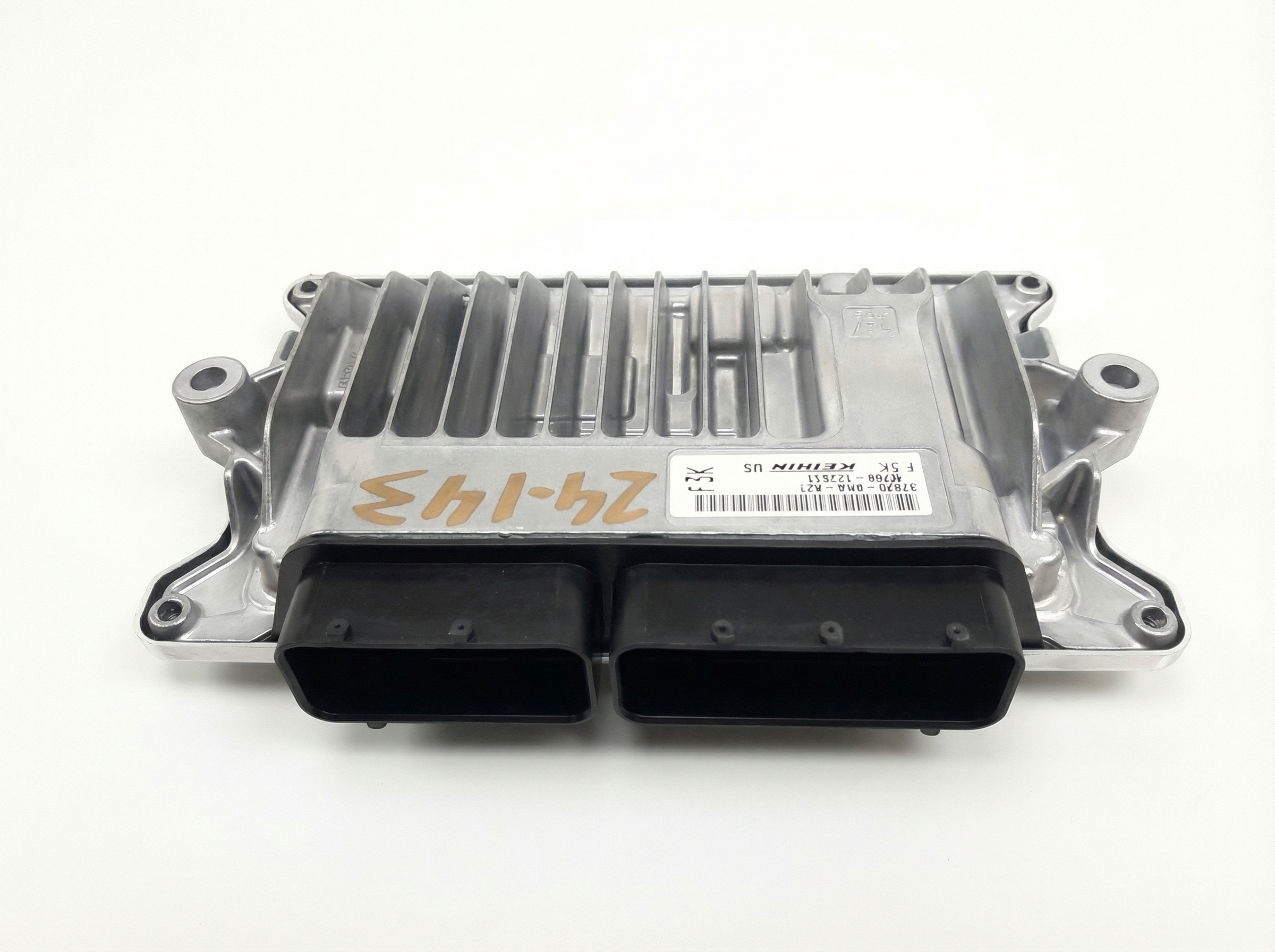

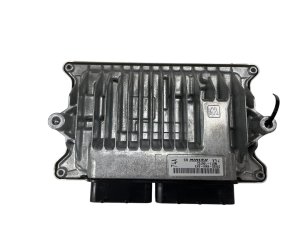

Buying a Used 2024 Accord Hybrid ECM

Purchasing a used OEM ECM is a cost-effective alternative to a new part, but careful verification is essential.

1. Confirm Powertrain Compatibility: The part numbers listed (37820-6NH-...) are ONLY for the 2024 Accord with the 2.0L Hybrid powertrain. They are not interchangeable with ECMs from the 1.5L Turbo gas models, which use different part numbers like 37820-6NA-AY1 or 37820-6NA-A68.
2. Match the Part Number Exactly: The OEM part number on the replacement module must match the one on your original ECM. Part numbers like 37820-6NH-AY1, 37820-6NH-AY2, 37820-6NH-AZ1, and 37820-6NH-AZ2 are often superseded or revised. While a newer revision may replace an older one (e.g., AY2 replaces AY1), it is safest to match the number precisely or confirm interchangeability with a dealer.
3. Inspect for Damage: When you receive the used ECM, check the case for any signs of physical damage. Most importantly, inspect the connector pins for corrosion, which indicates potential water damage.
4. Buy From a Reputable Source: Purchase from an auto recycler that offers a warranty. This protects you in case the part is defective.

Programming and Anti-Theft Synchronization

This is the most critical part of the replacement process. The ECM is tied to the vehicle's immobilizer system, which prevents theft by recognizing a chip in your key.

• Why Programming is Required: When you install a different ECM, the immobilizer system sees a mismatch and prevents the engine from starting as a security measure. The replacement ECM must be programmed with your car's Vehicle Identification Number (VIN) and synchronized with the immobilizer module and your existing keys.
• Who Can Program the ECM?: This procedure requires specialized tools. The most reliable options are a Honda dealership or an independent auto repair shop that specializes in module programming and has access to the Honda Diagnostic System (HDS) or a compatible J2534 pass-thru tool with a current software subscription. A general mechanic or a standard locksmith typically cannot perform this service.

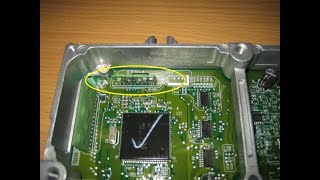

🎬 See this step-by-step guide on programming a Honda immobilizer

Cost Breakdown

Prices can vary based on location and availability. As of early 2026, aftermarket and remanufactured options for this specific model are not common.
