2014-2015 Honda Civic ECM Failure: Your Guide to Programming and Replacement

Symptoms of a Failing 2014-2015 Civic ECM

A failing ECM can cause a wide range of confusing and often intermittent issues. Because it controls so many different systems, the symptoms can sometimes be mistaken for other problems. Here are the most common signs that your Civic's ECM may be at fault:

• Engine Will Not Start: The most severe symptom is a complete no-start condition. The engine may crank but will not fire up because the ECM is not commanding the fuel injectors or ignition coils to work.
• Stalling or Misfiring: The engine may stall unexpectedly while driving or run very rough, with noticeable shaking and misfires. This can happen intermittently.
• Check Engine Light: A constant or flashing Check Engine Light is a primary indicator. Specific codes related to internal processor errors, like P0606, are a strong sign of ECM failure.
🎬 Watch: How to diagnose an ECM processor error code
• Multiple Unrelated Warning Lights: You might see several warning lights on the dashboard illuminate at once, such as for the ABS, VSA (Vehicle Stability Assist), and TPMS, along with the Check Engine Light. This often points to a communication failure originating from the ECM.
🎬 See why multiple warning lights appear without fault codes
• No Communication with Scan Tool: If a diagnostic scan tool cannot connect to the vehicle's computer, it's a major red flag that the ECM itself is not powering on or has an internal fault.
• Poor Performance and Fuel Economy: If the ECM is failing, it may not be able to properly manage the engine, leading to a noticeable drop in power, acceleration, and fuel efficiency.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no widespread recalls for total ECM failure on the 2014-2015 Civic, there is an important recall and related software update that involves reprogramming the module.

NHTSA Recall 15V574000: CVT Software Update

Honda issued a recall for certain 2014-2015 Civics equipped with the continuously variable transmission (CVT). The original software settings could put excessive stress on the transmission's drive pulley shaft, potentially causing it to break. A broken shaft could lead to a loss of acceleration or cause the front wheels to lock up, increasing the risk of a crash. The remedy for this recall was for Honda dealers to perform a software update on the Powertrain Control Module (PCM/ECM). This update reduces the hydraulic pressure in certain situations to prevent damage. This is important for owners to be aware of, as it shows that the ECM's software is critical to the mechanical health of the transmission.

The #1 Most Important Step: ECM Programming and Immobilizer Syncing

You cannot simply swap a used ECM into your 2014-2015 Civic and expect it to work. The vehicle will not start due to the built-in anti-theft immobilizer system. The immobilizer, ECM, and your car keys are all electronically linked. When you install a replacement ECM, it does not have your car's unique key and Vehicle Identification Number (VIN) data stored in it. As a result, the immobilizer system will prevent the engine from starting, and you will likely see a flashing green key symbol on your dashboard.

Who Can Program a Replacement Honda ECM?

Programming, often called 'flashing' or 'initializing', requires specialized tools to write your car's specific data to the replacement module.

• Honda Dealership: This is the most reliable, albeit often most expensive, option. Dealers have the proprietary Honda Diagnostic System (HDS) tool and direct access to the necessary software to guarantee a successful programming session.
• Qualified Independent Shops: Many independent auto repair shops that specialize in Hondas or vehicle electronics invest in professional-grade diagnostic tools, such as an Autel scanner or a J2534 pass-thru device, which can perform the same programming as the dealer.
• Automotive Locksmiths: Some, but not all, modern automotive locksmiths have advanced tools capable of programming keys and modules for Honda vehicles. It is crucial to call ahead and confirm they have the specific capability for a 2014-2015 Civic ECM replacement.

Buying a Used 2014-2015 Civic ECM: What to Look For

Purchasing a used OEM ECM is a cost-effective way to get your Civic back on the road, provided you follow these critical steps.

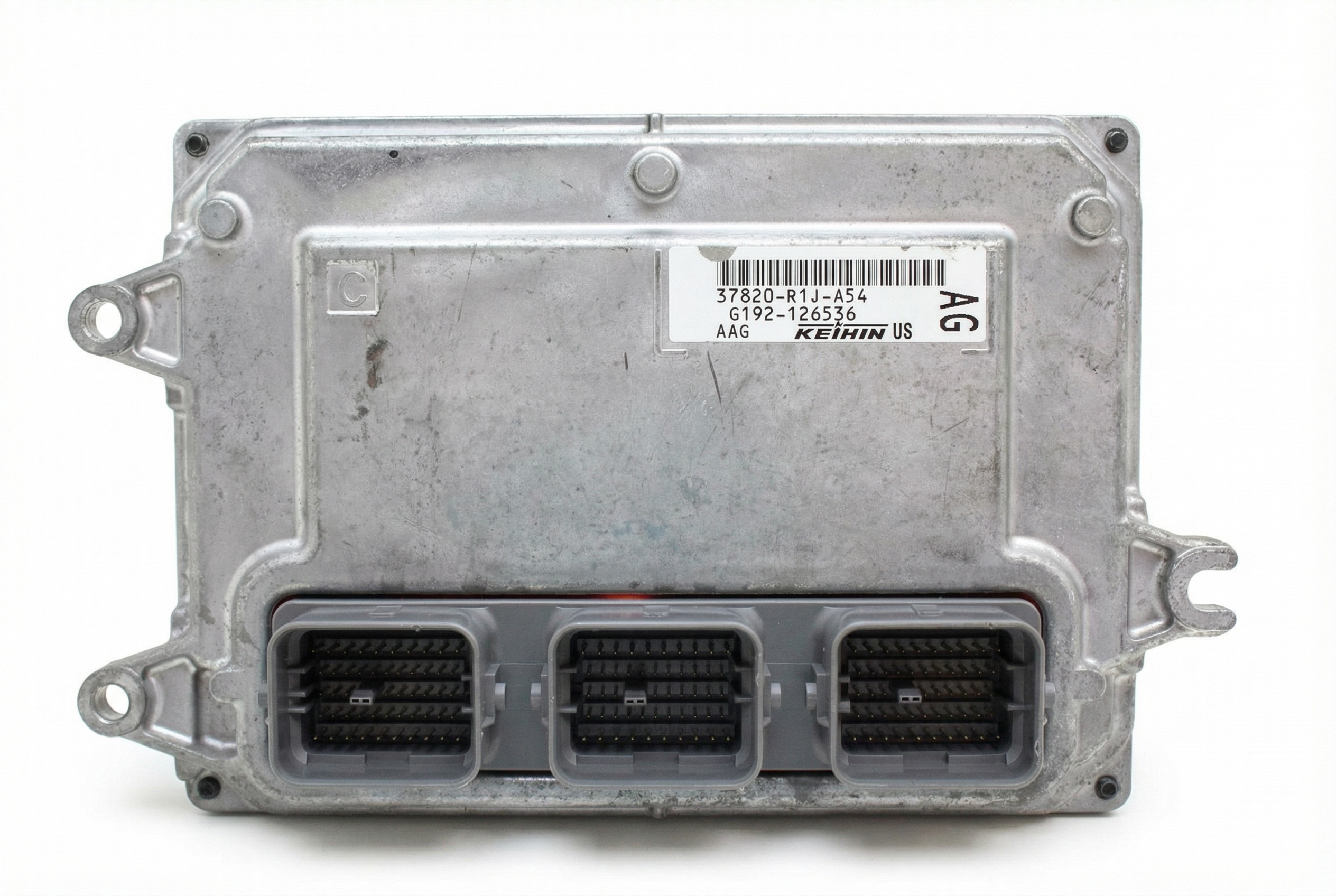

1. Verify the Part Number: This is the most important step. The part number on the replacement ECM must exactly match the one on your original module. The correct part numbers for this vehicle are typically in the format 37820-R1J-A5x. The last digit indicates a minor software or hardware revision, and later numbers often supersede earlier ones (e.g., A55 replaces A51, A52, A53, and A54).
2. Confirm Vehicle Specifications: The ECM must come from a vehicle with the exact same configuration: a 1.8L engine, automatic (CVT) transmission, and Federal or Canadian emissions. An ECM from an Si, Hybrid, or California-emissions (PZEV) model will not work.
3. Inspect the Unit Physically: When you receive the used ECM, check the case for any signs that it has been opened, which could indicate a failed repair attempt. Inspect the electrical connector pins to ensure none are bent, broken, or corroded.
4. Choose a Reputable Seller: Buy from a seller that offers a warranty and a clear return policy. This protects you in case you receive a defective part.

Replacement Cost Comparison

The cost to replace a Civic ECM can vary dramatically depending on the source of the part and labor rates.
