2002-2004 Honda CR-V ECM: Immobilizer Programming and Failure Guide
Replacing the Engine Control Module on a 2002-2004 CR-V requires mandatory immobilizer programming to avoid a no-start condition.
- A replacement ECM for a 2002-2004 CR-V MUST be programmed to the car's immobilizer system, or the engine will not start.
- For 2003-2004 FWD models, you MUST verify your vehicle was built in Japan by checking that the VIN starts with 'J'.
- Always match the part number on your original ECM to the replacement unit to ensure compatibility.
- Programming can be done by a dealer, a locksmith, or by using a mail-in 'cloning' service which makes the part plug-and-play.
Symptoms of a Failing 2002-2004 CR-V ECM
A failing Engine Control Module can cause a wide range of confusing and intermittent issues. Because the ECM controls so many different systems, its failure can mimic other problems. Here are the 🎬 Watch: A breakdown of common bad ECU symptoms. most common signs that your CR-V's ECM may be at fault:

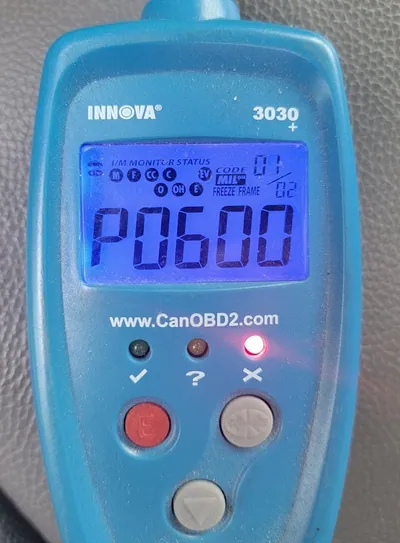

- Check Engine Light: An illuminated Check Engine Light is a common symptom. If the ECM itself is failing, it may store internal fault codes, such as those in the P0600-P0606 range, which point directly to a computer malfunction. A P0600 code, specifically "Serial Communication Link Malfunction," is a strong indicator of an internal ECM problem or a failure to communicate with other modules.
- Engine Performance Issues: You may experience a sudden drop in fuel economy, engine stuttering, misfires, or a general loss of power. The engine might feel sluggish or hesitate during acceleration.
- No-Start or Intermittent Starting: One of the most definitive symptoms is a crank-no-start condition, where the engine turns over but never fires up. This can happen intermittently at first and become more frequent as the module fails.
- Engine Stalling: The engine may stall unexpectedly while driving or when coming to a stop.
- Erratic Shifting (Automatic Transmission): Since the ECM works with the transmission controller, a faulty module can cause harsh, delayed, or unpredictable gear shifts.
Warning: Many of these symptoms can also be caused by simpler issues like bad sensors, faulty wiring, or problems with the fuel or ignition systems. It's important to rule out these other possibilities before condemning the ECM, which is a more complex and costly repair.
CRITICAL: Immobilizer and Programming Requirements
This is the most important section for anyone replacing the ECM on a 2002-2004 Honda CR-V. You cannot simply swap in a replacement ECM and expect the vehicle to start.
These vehicles are equipped with an anti-theft immobilizer system. The ECM, ignition key (which has a transponder chip), and a separate immobilizer control unit are all electronically linked. If you install a new or used ECM, its immobilizer code will not match the codes stored in your keys and immobilizer unit. As a result, the anti-theft system will activate, and the engine will be prevented from starting. You will typically see a green key-shaped light flashing on your dashboard.
🎬 See what a flashing green key light means for starting.To make the replacement ECM work, it MUST be programmed to your vehicle. You have several options:
- Honda Dealership: A dealer can use the Honda Diagnostic System (HDS) to "re-learn" or program the replacement ECM to your vehicle's immobilizer system. This is the most straightforward but often most expensive option.
- Automotive Locksmith / Independent Shop: Many modern locksmiths and repair shops have advanced diagnostic tools (like Autel scanners) that can perform the same immobilizer programming function as the dealer, often at a lower cost.
- ECM Cloning Service: Several mail-in services can "clone" the data from your original ECM onto the replacement unit. You ship both your old module and the replacement module to them. They transfer the immobilizer and VIN data, making the replacement ECM a true plug-and-play part that requires no further programming. This is an excellent option for DIY mechanics.
Buying a Used 2002-2004 CR-V ECM: A Buyer's Guide
A used OEM ECM is a cost-effective and reliable alternative to an expensive new unit, provided you follow these critical steps to ensure compatibility.
1. Match the Part Number EXACTLY
The single most important step is to match the Honda part number on the replacement ECM with the one on your original unit. Remove your existing ECM to find the sticker with the part number. Part numbers for this application often begin with "37820-PPA-". While some modules may have interchangeable numbers, buying one with the exact same part number is the only way to guarantee compatibility.
2. Verify Vehicle Specifications
The ECM you are purchasing is specifically for 2002-2004 Honda CR-V models with an Automatic Transmission and Front-Wheel Drive (FWD). It will not work for All-Wheel Drive (AWD) or manual transmission models.
3. CRITICAL: Check Your VIN for Build Location (2003-2004 Models)
This is a common trap that many buyers fall into. For 2003-2004 FWD models, the correct ECM is ONLY for vehicles built in Japan.
- Check the first character of your Vehicle Identification Number (VIN).
- If your VIN starts with the letter 'J', your CR-V was built in Japan, and this part is correct for your vehicle.
- If your VIN starts with the letter 'S', your CR-V was built in the UK, and this part will likely NOT be compatible.
Pro Tip: When buying a used ECM, physically inspect the connectors for any signs of corrosion, bent pins, or damage. Water intrusion is a potential cause of failure, and any corrosion on the replacement unit is a major red flag.
Known Issues, Recalls, and TSBs
While there are no major recalls specifically for ECM failure on the 2002-2004 CR-V, the vehicle was subject to several other important safety recalls. These include recalls for faulty airbag inflators and a driver's side power window switch that could melt and pose a fire risk. It is wise to check your VIN on the NHTSA website to ensure all applicable recalls have been performed on your vehicle.
A Honda Technical Service Bulletin (TSB) exists regarding the need to update software on replacement ECMs, which reinforces the fact that these modules are not simple plug-and-play components and require dealer-level tools for proper setup.
Cost Comparison
| Part/Service | Estimated Cost |
|---|---|
| New OEM ECM (from dealer) | $700 - $1000+ |
| Remanufactured / Pre-Programmed ECM | $400 - $550 |
| Used OEM ECM | $50 - $150 |
| Shop Labor (Physical Swap) | $100 - $150 |
| Shop Labor (Immobilizer Programming) | $100 - $250 |
Frequently Asked Questions (FAQ)
Can I replace the ECM myself?
Yes, the physical replacement of the ECM is relatively easy for a DIY mechanic. It is typically located in the passenger-side footwell area. 🎬 Watch: How to find and access your CR-V's ECU. However, you must remember that the vehicle will not start until the immobilizer is programmed. You will need to either have the vehicle towed to a dealer/locksmith after installation or use a mail-in cloning service beforehand.
Will the car's mileage or VIN be wrong if I use a used ECM?
The ECM does store the vehicle's VIN. If you use a cloning service, your original VIN will be transferred to the replacement unit. If you have a dealer or locksmith program a used ECM, they will rewrite the immobilizer data, and the VIN mismatch is not typically an issue for vehicle operation, though it may be visible with advanced scan tools.
What is an 'Immobilizer Delete' service?
Some companies offer a service to remove the immobilizer function from the ECM entirely. This would make the ECM truly plug-and-play and allow the car to start with any key. While this is a solution, it permanently disables a key anti-theft feature of your vehicle.
My key fob stopped working. Is that the ECM?
Unlikely. The keyless entry system (for locking/unlocking doors) is separate from the immobilizer system (for starting the car). If your key fob isn't working but the car still starts, the issue is likely the fob's battery or the fob itself, not the ECM. The immobilizer uses a transponder chip inside the key plastic, which does not require a battery.
Helpful Videos
Technical Specifications

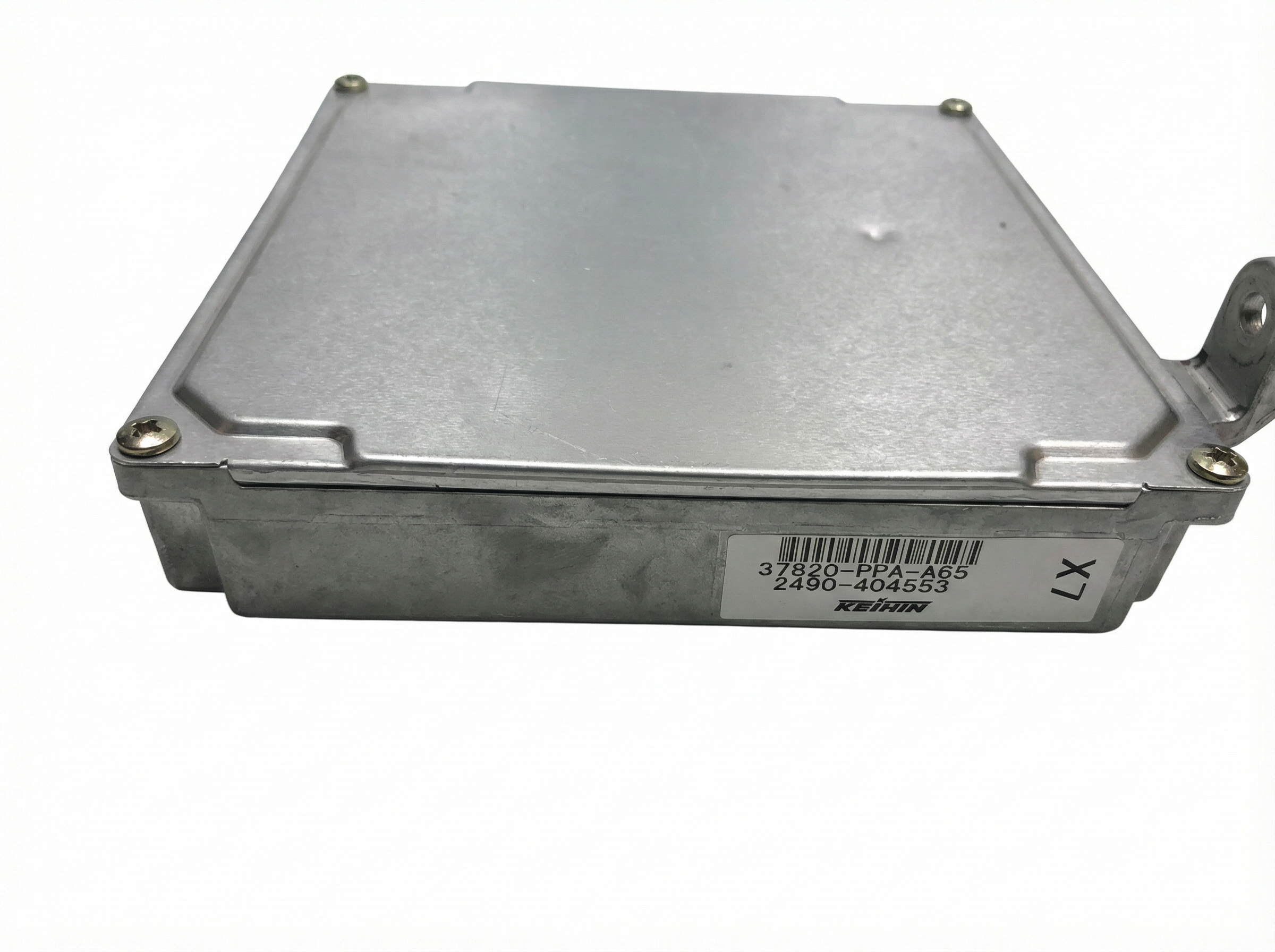

OEM Part Numbers: 37820PPAA61 37820PPAA62 37820PPAA63 37820PPAA64 37820PPAA65 37820PPAA66 37820PPAA67 37820PPAA68 37820PPAA81
Fits 2002-2004 Honda CR-V with Automatic Transmission and Front-Wheel Drive (FWD). 2003-2004 models must be Japan-built (VIN starts with 'J').
