2005 Honda Odyssey Engine Control Module: Programming, Trim Levels, and Replacement

Critical Compatibility: EX/LX vs. EX-L/Touring Trims

The most important factor when replacing the ECM in a 2005 Honda Odyssey is the vehicle's trim level. The ECMs are not interchangeable between lower and upper trims.

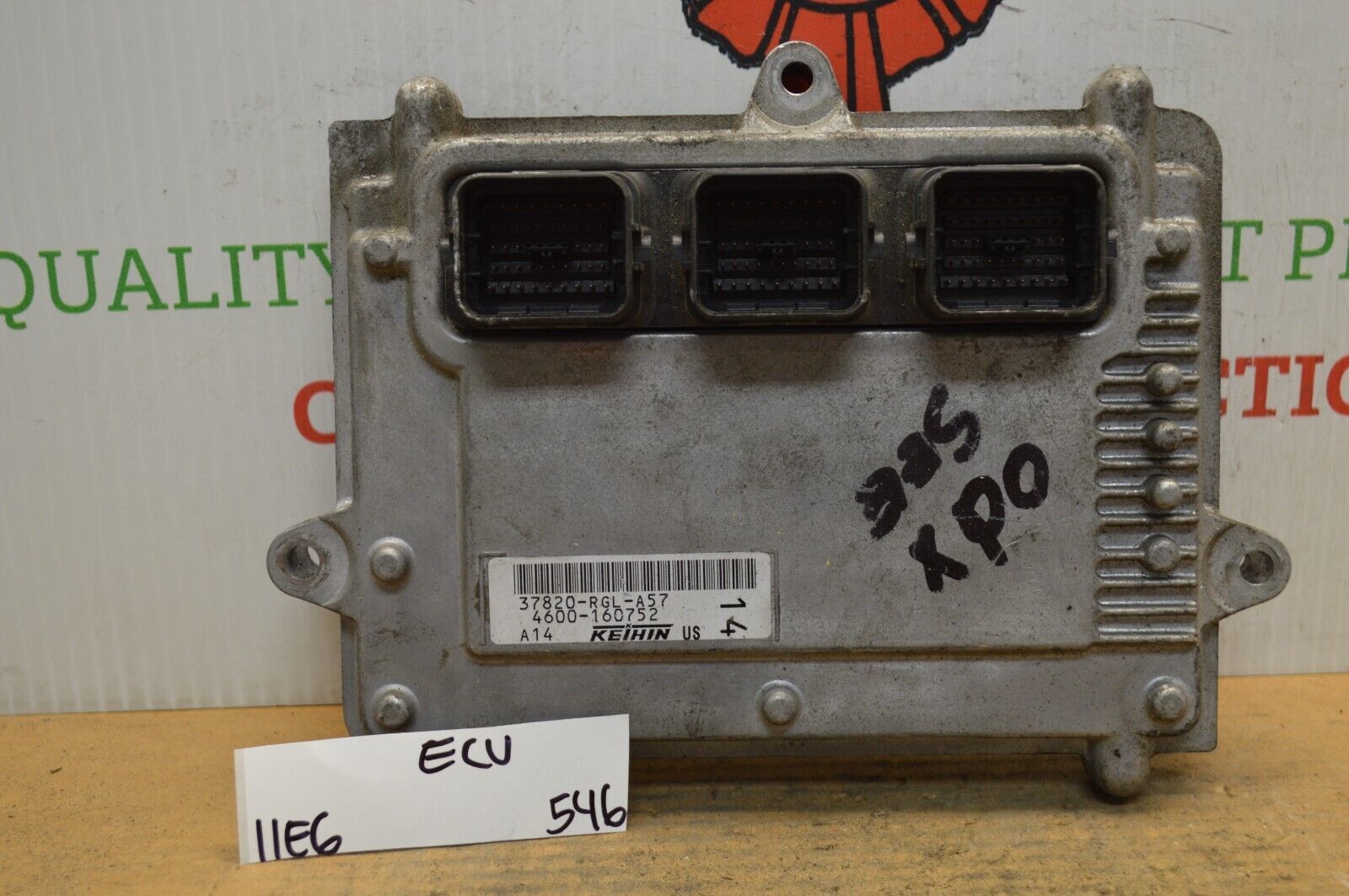

• EX and LX Trims: These models use a specific set of ECMs, including part numbers like 37820-RGL-A54, 37820-RGL-A55, 37820-RGL-A56, and 37820-RGL-A57.
• EX-L and Touring Trims: These higher-end models feature Honda's Variable Cylinder Management (VCM) system, which requires a different ECM (like part number 37820-RGM-A59) to manage its operation. The VCM system improves fuel economy by deactivating a bank of cylinders under light load conditions.
🎬 See how Honda's Variable Cylinder Management system works in detail.

Symptoms of a Failing ECM

ECM failure can be difficult to diagnose because its symptoms often mimic other problems. However, if you've ruled out simpler causes like bad spark plugs or sensors, you might have an ECM issue. Common signs include:

• Check Engine Light: An illuminated Check Engine Light is a primary indicator, though it can signal many different faults.
• Engine Performance Issues: This can include engine misfires, a rough idle, stuttering, hesitation, sudden power loss, or poor acceleration.
• No-Start or Stalling: The engine may crank but fail to start, or it might stall unexpectedly while driving. This can be caused by the ECM failing to power the fuel pump.
• Poor Fuel Economy: A sudden, unexplained drop in gas mileage can point to an ECM that is no longer managing the air-fuel mixture correctly.
• Transmission Shifting Problems: On automatic transmission vehicles, the ECM works with the transmission controller. Hard or erratic shifting can sometimes be traced back to a faulty ECM.
• Multiple Unrelated Trouble Codes: A failing ECM can sometimes generate a long list of seemingly unrelated diagnostic trouble codes (DTCs) as its internal logic fails.
🎬 Watch: A breakdown of common signs and symptoms of ECM failure.

Buying a Used 2005 Odyssey ECM

Purchasing a used OEM ECM is a cost-effective solution, but careful attention to detail is required to ensure you get a functional, compatible part.

1. Match the Part Number and Trim Level

This is the most critical step. As detailed above, the ECM must match your Odyssey's trim level (EX/LX or EX-L/Touring). The safest approach is to physically inspect your old ECM and match the part number exactly. The part number is typically on a sticker on the unit's case and will look like 37820-RGL-A5x or 37820-RGM-A5x.

2. Physical Inspection

When you receive the used ECM, inspect it for:

• No Physical Damage: Check for cracks in the casing, bent connector pins, or signs of being dropped.
• No Water Intrusion: Look for any corrosion or water marks on the case or in the connector ports. Water damage is a common cause of ECM failure and is irreversible.
• Unopened Case: Be wary of units that look like they have been pried open. While some companies repair ECMs, an amateur attempt could indicate bigger problems.

3. Plan for Programming

A used ECM for a 2005 Odyssey is NOT plug-and-play. It must be programmed to your vehicle's immobilizer system. Without this step, the car will not start. Factor in the cost and logistics of programming when you buy the part.

Programming and Immobilizer Requirements

When you replace the ECM in a 2005 Honda Odyssey, you must reprogram the immobilizer system. The immobilizer is an anti-theft feature that prevents the engine from starting unless it recognizes a chip in the ignition key. The ECM is a key part of this system.

When a new or used ECM is installed, it does not have the correct key data stored, and the car will not start. You have several options to resolve this:

• Honda Dealership: The dealer has the factory scan tools (like the Honda HDS) to program the new ECM and sync it with your existing keys. This is the most straightforward but often most expensive option.
• Automotive Locksmith: Many modern locksmiths have advanced scan tools (from brands like Autel or Thinkdiag) that can perform ECM replacement functions, including VIN writing and immobilizer key registration for Hondas. This is often cheaper 🎬 Watch: How to program a Honda ECM and immobilizer using Autel. than the dealership.
• Mail-In Programming Service: Some companies offer a service where you mail in your original ECM and the replacement used ECM. They will clone the immobilizer and VIN data from your old unit to the new one, making the replacement unit plug-and-play when you receive it back. This avoids the need for a tow or a mobile technician.

Cost of Replacement

The cost to replace a 2005 Odyssey ECM can vary significantly based on the part source and labor.

Known Issues, Recalls, and TSBs

While the ECM itself is generally reliable, the 2005 Odyssey had a few related issues:

• NHTSA Recall P73/P74: A recall was issued for some 2005 Odyssey models due to a loose terminal in the main fuse box. This could cause the fuel pump to lose power, leading to the engine stalling, a symptom that could be misdiagnosed as a bad ECM. The fix was to replace the fuse box.
• Variable Cylinder Management (VCM) Issues: On EX-L and Touring models, the VCM system has been linked to issues like fouled spark plugs, excessive oil consumption, and worn piston rings over the long term. While not a direct ECM failure, these engine problems are related to a system controlled by the ECM.
