2006-2007 Honda Pilot ECM: A Guide to Programming, Immobilizer Issues, and Replacement
This guide covers the essential information you need to know about diagnosing, replacing, and programming the Engine Control Module (ECM) for a 2006-2007 Honda Pilot.
- Programming is mandatory. A replacement ECM for a 2006-2007 Pilot must be programmed to the vehicle's VIN and immobilizer system by a dealer or qualified locksmith.
- Match the part number exactly. Ensure the OEM part number on the replacement ECM matches your original to guarantee compatibility, especially for AWD models.
- A flashing green key light means the immobilizer is active and the car will not start. This is the expected behavior after swapping an ECM before it has been programmed.
- Buying a used OEM module and having it programmed by a locksmith is often the most cost-effective solution compared to a new part from a dealership.
Symptoms of a Failing ECM
A failing Engine Control Module can cause a wide range of issues, from subtle to severe. Diagnosing a bad ECM can be tricky, as its symptoms often mimic other problems. Here are the most common signs that your Pilot's ECM may be in trouble:
🎬 Watch: A detailed breakdown of common failing ECM symptoms.- Check Engine Light: An illuminated Check Engine Light is one of the most common symptoms of an ECM problem. If the ECM detects a fault within its own circuits, it will trigger a code.
- Engine Performance Issues: You may experience problems like engine misfires, stuttering, hesitation, or a sudden loss of power. This can be due to the ECM failing to properly regulate the air-fuel mixture or ignition timing.
- Car Won't Start: A completely failed ECM can prevent the engine from starting at all. The engine may crank but won't turn over because the ECM isn't managing the fuel and spark needed for combustion.
- Poor Fuel Economy: A sudden and significant drop in gas mileage can point to an ECM issue. If the module sends incorrect signals, it can lead to an inefficient air-fuel ratio, wasting fuel.
- Flashing Green Key Light (Immobilizer): If the green key-shaped light on your dashboard is blinking, it means the immobilizer system does not recognize the key. This is directly tied to the ECM, and the vehicle will not start until the issue is resolved.
Common Diagnostic Trouble Codes (DTCs)
While many codes can indicate an ECM-related issue, a code specifically pointing to an internal circuit failure is a strong sign. Look for codes such as:
- P1607: ECM/PCM Internal Circuit Failure A
Other codes related to sensors (oxygen, crankshaft, camshaft) or system performance (misfires, EVAP) may also appear when an ECM is failing, as the module may incorrectly interpret sensor data.
Warning: The 2006-2007 Honda Pilot was subject to several recalls related to Takata airbag inflators. While not directly related to the ECM, it's crucial to ensure all safety recalls have been performed on your vehicle. You can check for open recalls on the NHTSA website.
Buying a Used Engine Control Module (ECM)
When purchasing a used ECM for your 2006-2007 Honda Pilot, compatibility is critical. Using the wrong module will result in a no-start condition or other serious issues.
1. Match the Part Number Exactly
The most important step is to match the OEM part number from your original ECM to the replacement unit. These part numbers are specific to the vehicle's year, model, and features. The ECM is located in the right front of the engine compartment.
Known OEM part numbers for the 2006-2007 Honda Pilot with All-Wheel Drive (AWD) include:
- 37820-PVJ-A77
- 37820-PVJ-A78
- 37820-PVJ-A79
- 37820-PVJ-A81
- 37820-PVJ-A82
Newer part numbers often supersede older ones. For example, part number 37820-PVJ-A82 replaces 37820-PVJ-A78, 37820-PVJ-A79, and 37820-PVJ-A81.
Pro Tip: These ECMs are for Honda Pilot models equipped with All-Wheel Drive (AWD). Be sure to verify your vehicle's drivetrain before purchasing.
2. Inspect the Unit
When buying a used part, visually inspect the connectors for any signs of corrosion, bent pins, or physical damage. Water intrusion is a common cause of electronic module failure, so check for any evidence of moisture or rust.
3. Understand Programming Requirements
A used ECM cannot be simply swapped into your vehicle. It must be programmed to your vehicle's specific Vehicle Identification Number (VIN) and synchronized with the immobilizer system. Failure to do so will result in a no-start condition with a flashing green key light on the dashboard.
Programming and Immobilizer Synchronization
This is the most critical part of replacing the ECM in a 2006-2007 Honda Pilot. The ECM, immobilizer control unit, and the transponder chip in your key are all linked. If you replace the ECM, this link is broken, and the car will not start.
Who Can Program the ECM?

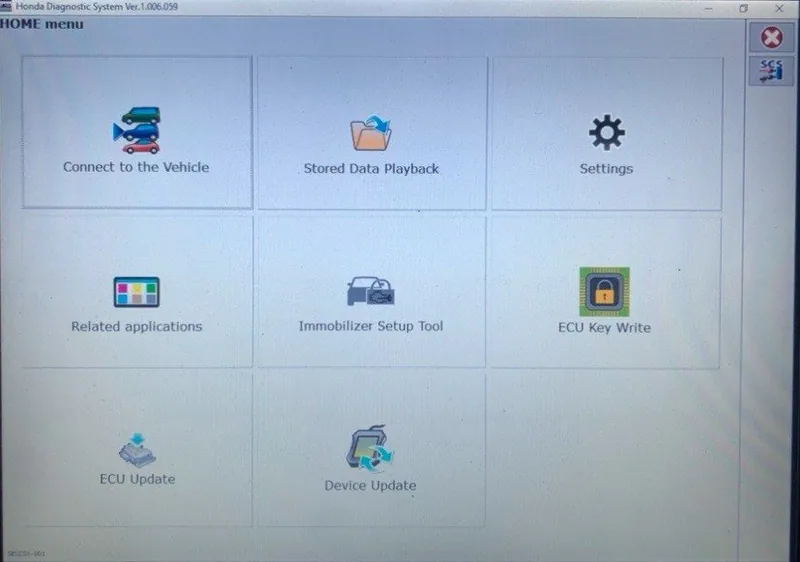

- Honda Dealership: A dealership has the proprietary Honda Diagnostic System (HDS) software required to perform the programming. This is the most reliable, though often most expensive, option.
- Qualified Locksmiths: Many automotive locksmiths have advanced scan tools (like Autel or Launch) that can perform immobilizer and key programming for Honda vehicles. They can often do this for less than the dealership.
- Independent Repair Shops: Some independent shops that specialize in Honda vehicles may have the necessary J2534 pass-thru devices and software subscriptions to program a new ECM.
The process involves using a scan tool to put the immobilizer system into a "learn mode," entering the vehicle's VIN, and pairing the existing keys to the replacement ECM.
🎬 See how a scan tool programs a new immobilizer unit.Warning: This is not a DIY-friendly procedure for the average home mechanic. It requires specialized tools and software. Attempting to bypass the system without the correct equipment will not work and could cause further issues.
Cost of Replacement (2006-2007 Honda Pilot ECM)
The cost can vary significantly based on the path you choose. Here is an estimated breakdown:
| Part/Service | Estimated Cost |
|---|---|
| New OEM ECM | $1,400 - $2,100 |
| Used OEM ECM | $75 - $250 |
| Remanufactured ECM | $200 - $400 |
| Shop Labor (Replacement & Programming) | $100 - $300 |
Frequently Asked Questions (FAQ)
Do I have to take my Pilot to the dealer to replace the ECM?
Not necessarily. While a Honda dealer can certainly perform the work, many certified automotive locksmiths and some independent repair shops have the tools to program a replacement ECM to your vehicle. However, you cannot simply install a used ECM without programming.
🎬 Watch: How to program keys after replacing ignition components.What is the immobilizer and why does it matter?
The immobilizer is a security system that prevents your car from being started with an unrecognized key. The ECM is a key part of this system. When you replace the ECM, the system no longer recognizes your keys, and the car won't start until the new ECM is programmed to accept them. This is indicated by a flashing green key light on the dash.
Can I drive my Pilot with a bad ECM?
It is not recommended. Depending on the failure mode, symptoms can range from poor performance and bad fuel economy to the engine stalling unexpectedly or not starting at all. Driving with a faulty ECM could leave you stranded.
Where is the ECM located on a 2006-2007 Honda Pilot?
The ECM is located in the engine compartment on the right-hand (passenger) side.
Helpful Videos
Technical Specifications
OEM Part Numbers: 37820-PVJ-A77 37820-PVJ-A78 37820-PVJ-A79 37820-PVJ-A81 37820-PVJ-A82
Fits 2006-2007 Honda Pilot models with All-Wheel Drive (AWD).
