2013-2015 Honda Pilot ECM: Programming, Immobilizer, and Replacement Guide
This guide covers everything you need to know about diagnosing, replacing, and programming the Engine Control Module (ECM) in your 2013-2015 Honda Pilot.
- A replacement ECM for a 2013-2015 Honda Pilot MUST be programmed to the vehicle; it will not start otherwise.
- The ECM is linked to the anti-theft immobilizer system, requiring key synchronization during programming.
- You must match the part number exactly, paying attention to FWD vs. AWD variants.
- Programming can be done by a dealer or a qualified locksmith/mechanic with Honda-specific diagnostic tools.
Symptoms of a Failing ECM
A bad Engine Control Module can cause a variety of symptoms, ranging from annoying to critical. Because the ECM controls so many functions, its failure can sometimes be misdiagnosed as a problem with another part.
- Check Engine Light: This is often the first sign. The light may be on constantly, or it may come and go. Common codes associated with ECM failure include internal processor errors like P060A. 🎬 Watch: A detailed explanation of the P060A fault code.

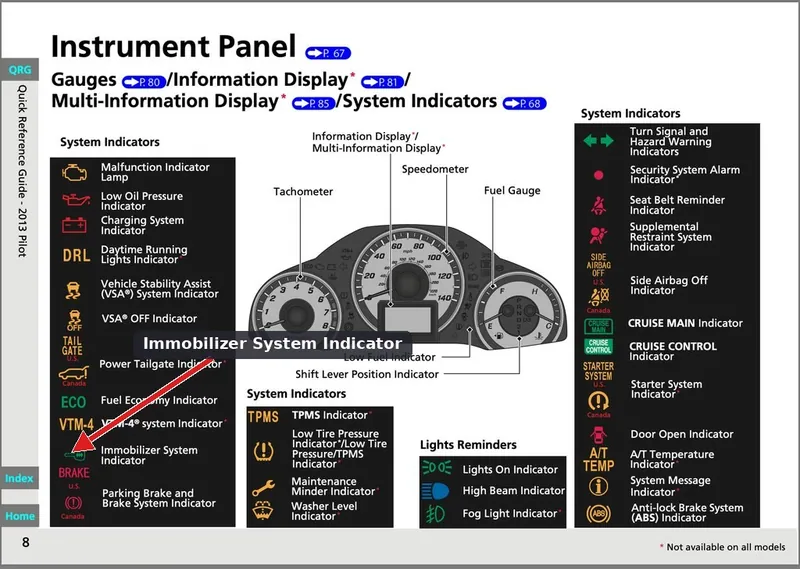

- Engine Will Not Start: If the ECM has completely failed, it may not be able to manage the fuel and ignition systems, preventing the engine from starting at all. The green immobilizer key light on the dashboard will typically flash if a new, unprogrammed ECM is installed. 🎬 See why the green key light flashes when starting.
- Stalling or Misfiring: The engine may stall unexpectedly while driving or run very roughly. This can be due to the ECM failing to properly regulate the air-fuel mixture or ignition timing.
- Poor Performance and Fuel Economy: You might notice a sudden drop in gas mileage or a significant loss of acceleration. This happens when the ECM can no longer make the precise calculations needed for efficient engine operation.
- Erratic Shifting: Since the ECM works with the transmission control module, a failing ECM can sometimes cause harsh or irregular automatic transmission shifting.
Known Issues, TSBs, and Recalls
While there are no direct recalls for the ECM itself on the 2013-2015 Honda Pilot, there are related Technical Service Bulletins (TSBs) where an ECM/PCM software update is the prescribed fix.
- TSB A14-078: Addresses an excessive vibration felt between 30 and 65 mph under certain driving conditions. The fix involves a PCM software update to change how the Variable Cylinder Management (VCM) and torque converter lock-up operate.
- TSB 13-081 (related to earlier models but relevant): For some Honda V6 engines, piston rings could align and cause spark plug fouling, leading to misfire codes (P0301-P0304). The repair sometimes involved a PCM update in addition to mechanical repairs.
No major safety recalls were found specifically for Engine Control Module failure in the 2013-2015 Pilot models during the search.
Important: A used ECM MUST be programmed to your vehicle after installation. The vehicle will not start until this procedure is completed.
Buying a Used Engine Control Module (ECM)
Purchasing a used OEM ECM is a cost-effective solution, but it requires careful attention to detail. The single most important factor is understanding the programming requirements.

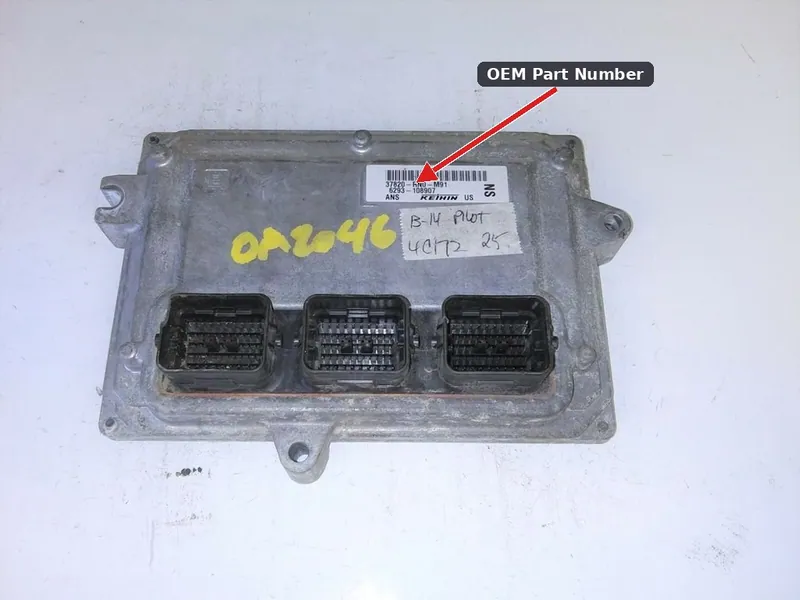

- Part Number Matching: You must match the part number on your original ECM to the part number on the replacement unit. There are different ECMs for Front-Wheel Drive (FWD) and All-Wheel Drive (AWD) models. Do not rely on year and model alone. Common part numbers include 37820-RN0-M01, 37820-RN0-M02 (FWD) and 37820-RN0-M91, 37820-RN0-M92 (AWD).
- Immobilizer System: The ECM is a key part of the vehicle's anti-theft immobilizer system. When you install a used ECM, it will not recognize your existing keys, and the engine will not start. The replacement ECM needs to be synchronized with your vehicle's immobilizer module and keys.

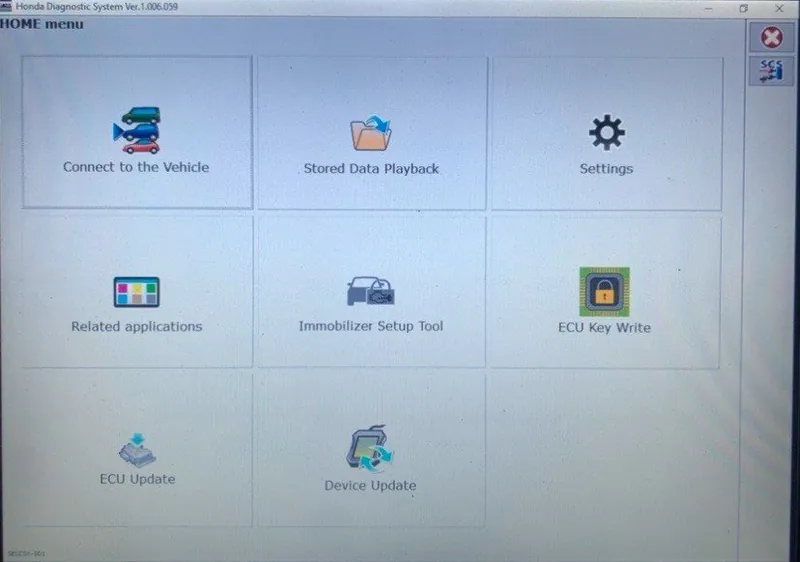

- Programming Required: A Honda dealer or a qualified locksmith/mechanic with a Honda Diagnostic System (HDS) or a compatible high-end scan tool (like an Autel IM508) 🎬 Watch: Step-by-step tutorial on programming a used Honda ECU. is required to program the used ECM. They will write your vehicle's VIN to the replacement ECM and perform the immobilizer key relearn procedure.
- Physical Inspection: When you receive the used ECM, inspect it for any signs of physical damage, corrosion on the pins, or evidence of water intrusion. The case should be sealed and the connectors clean.
Pro Tip: Before buying, call your local dealership or a trusted independent shop to confirm they are willing to program a used ECM. Some shops may refuse. Locksmiths are often a more affordable and flexible option for this service.
Cost Breakdown
Here is an approximate cost comparison for replacing a 2013-2015 Honda Pilot ECM. Prices can vary based on location and supplier.
| Item | Estimated Cost |
|---|---|
| New OEM ECM (Part Only) | $825 - $1305 |
| Used OEM ECM (Part Only) | $60 - $150 |
| Remanufactured/Programmed Service | $400 - $450 |
| Shop Labor (Installation & Programming) | $100 - $250 |
Frequently Asked Questions (FAQ)
Does a used ECM for a 2013-2015 Honda Pilot need to be programmed?
Yes, absolutely. The replacement ECM must be programmed to your vehicle's VIN and synchronized with the immobilizer system using specialized diagnostic tools. The engine will not start until this is done.
Can I install the ECM myself and then drive it to the dealer?
No. After you install the replacement ECM, the car will not start because the immobilizer system will prevent it. You will need to have the vehicle towed to the programming location or have a mobile locksmith/mechanic come to you.
Who can program a Honda ECM?
A Honda dealership is the most common option. Many independent auto repair shops and automotive locksmiths that have advanced diagnostic tools like the Honda HDS or equivalent J2534 pass-thru devices can also perform the programming.
What is the difference between an FWD and AWD ECM?
They use different part numbers and likely have different software calibrations to account for the differences in the drivetrain. You must use the correct ECM for your vehicle's specific drivetrain (FWD or AWD).
Helpful Videos
Technical Specifications

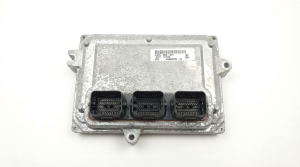

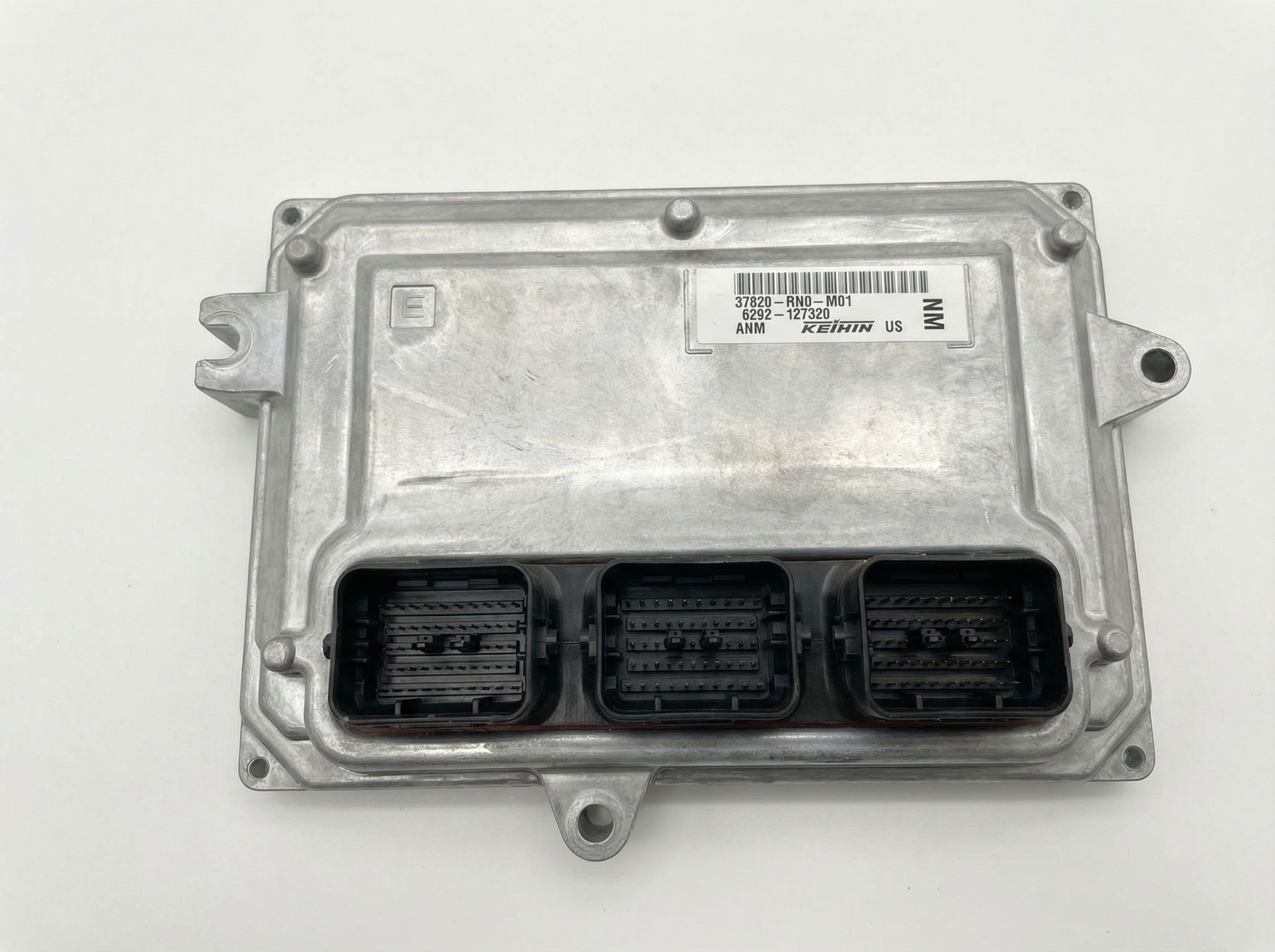

OEM Part Numbers: 37820-RN0-M01 37820-RN0-M02 37820-RN0-M91 37820-RN0-M92
The ECM is located in the right front of the engine compartment. It is manufactured by Keihin.
