2012-2014 Hyundai Accent ECM: Failure Symptoms and Programming Guide
This guide covers common failures, OBD-II codes, and the critical programming requirements for the 2012-2014 Hyundai Accent Engine Control Module.
- A replacement ECM for a 2012-2014 Accent MUST be programmed to the vehicle's immobilizer system to function; it is not a plug-and-play part unless purchased from a service that pre-programs it to your VIN.
- Before blaming the ECM for misfires, inspect the engine wiring harness for chafing on a bracket above the transmission, as this is a known issue that can mimic ECM failure.
- These ECMs are specific to US-market vehicles with the 1.6L engine and an automatic transmission. Always match your original part number.
- A major safety recall exists for the ABS module causing a fire risk; all owners should ensure this free recall repair has been performed by a dealer.
Symptoms of a Failing ECM in a 2012-2014 Hyundai Accent
ECM failure is uncommon, and it's important to rule out simpler issues like bad sensors, wiring problems, or a weak battery before condemning the computer. However, when an ECM does fail, it can cause a wide range of symptoms.
- Check Engine Light: This is the most common symptom. A fault within the ECM will almost always trigger a Check Engine Light. Specific codes pointing directly to the ECM include P0605 (Internal Control Module Read Only Memory Error).
- Engine Will Not Start: The engine may crank but refuse to start. This can happen if the ECM is not firing the ignition coils or fuel injectors. In some cases, you may have a no-crank condition if the ECM isn't properly communicating with the immobilizer system.
- Poor Engine Performance: A failing ECM can cause misfires, rough idling, stalling, hesitation, or a sudden loss of power. This happens because the computer can no longer correctly manage the air-fuel mixture and ignition timing.
- Drastic Drop in Fuel Economy: If the ECM starts making incorrect calculations, it can cause the engine to run too rich (using too much fuel), leading to a noticeable decrease in MPG.
- Communication Errors: A mechanic's scan tool may be unable to communicate with the ECM, which is a strong sign that the module itself has failed.
Pro Tip: Before replacing the ECM for a misfire, inspect the main engine wiring harness where it is secured to a bracket on top of the transmission. The harness is known to rub through on this bracket, causing wires for the ignition coils to short to ground. This can blow the 15-amp ignition coil fuse and create symptoms that mimic a faulty ECM.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)

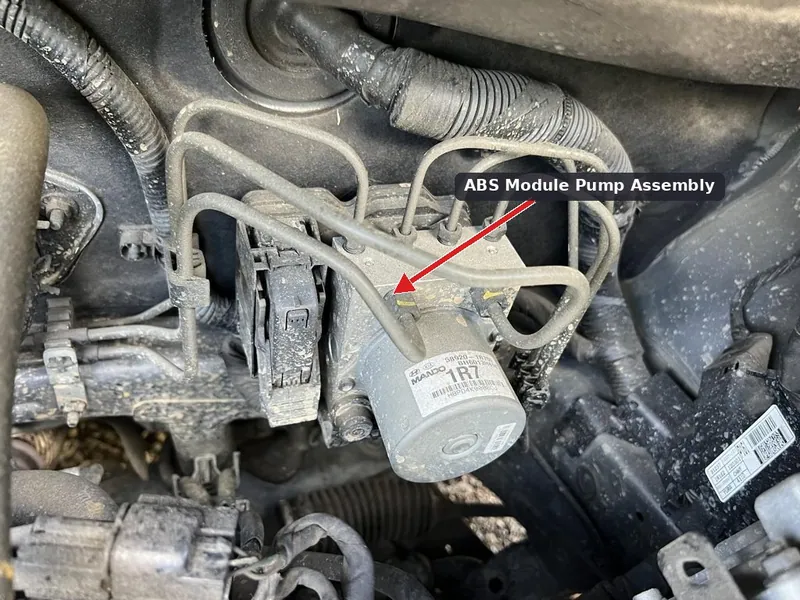

Major Safety Recall: ABS Module Fire Risk
Warning: While not related to the ECM, a critical safety recall (NHTSA ID: 23V651000) affects 2012-2015 Hyundai Accents. The Anti-Lock Brake System (ABS) module can leak brake fluid internally, causing an electrical short that can lead to an engine compartment fire. This can happen while driving or even when the vehicle is parked and turned off. Owners are advised to park their vehicles outside and away from structures until the recall repair (replacing the ABS fuse) is completed by a dealer.
Technical Service Bulletins (TSBs)
Hyundai has released several software updates for these ECMs to address specific issues. TSBs like 13-FL-005 and 12-FL-010 were issued to correct software logic that could falsely trigger diagnostic trouble codes like P2192 (System too Rich), P0456 (EVAP Leak), and P0461 (Fuel Level Sensor). This shows that updated software is available and should be installed on a replacement module if possible.
Buying a Used 2012-2014 Accent ECM: What You Must Know
Purchasing a used ECM is a cost-effective option, but compatibility and programming are critical. Failure to follow these steps will result in a part that does not work.
1. Verify Compatibility

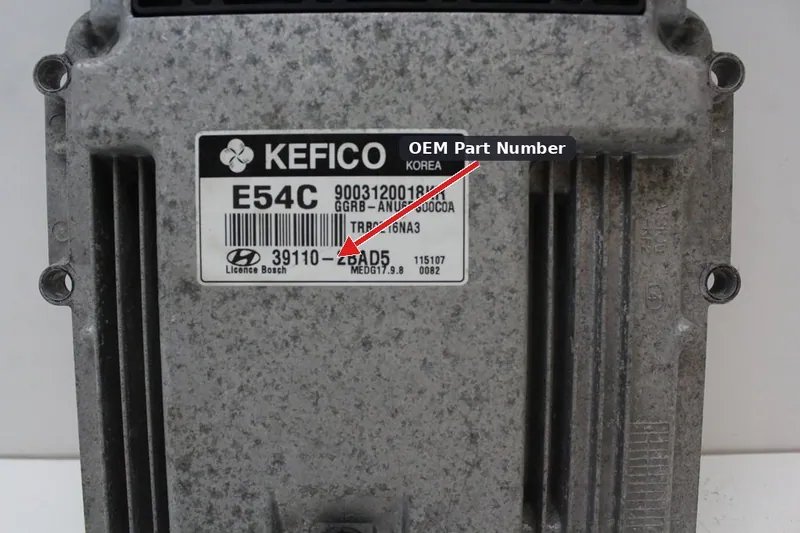

This ECM is specific to 2012-2014 Hyundai Accent models sold in the US market with a 1.6L GDI engine and an automatic transmission. The surest way to guarantee compatibility is to match the OEM part number printed on the label of your original ECM. Known part numbers include:
- 39110-2BAD5
- 39110-2BAD7
- 39110-2BAS1
- 39110-2BAS9
2. Programming is NOT Optional
You cannot simply swap a used ECM into your car and expect it to work. The ECM is linked to the vehicle's immobilizer system, which prevents theft by ensuring the engine only starts with a correctly coded key. When a replacement ECM is installed, it must be programmed to recognize your existing keys. 🎬 Watch: How to program keys and handle the immobilizer system. Without this step, the car will not start.
3. Options for Programming a Replacement ECM
You have three main options for getting a replacement ECM programmed:
- Buy a Pre-Programmed "Plug-and-Play" Unit: Several online retailers, like Flagship One, specialize in selling used or remanufactured ECMs that are pre-programmed to your car's Vehicle Identification Number (VIN) before they are shipped. You provide your VIN during purchase, and the module arrives ready for installation with no further programming needed. This is often the best choice for DIY replacement. Reviews for these services can be mixed, so it's wise to check recent customer feedback.
- Hyundai Dealership: A dealership can always program a new or used ECM to your vehicle. This is the most reliable but also the most expensive option. Labor for programming typically costs around one hour's shop rate.
- Independent Repair Shop: A well-equipped independent shop that has a J2534 pass-thru device and a subscription to Hyundai's diagnostic software can also perform the programming. This can be more affordable than a dealer. Not all shops have this capability, so you must call and ask specifically if they can program a Hyundai ECM.
Warning: Disconnecting the battery to "reset" the computer will NOT program a new ECM. This procedure only clears temporary fault codes and learned engine values from the old module. It does not perform the security handshake required to make a replacement ECM work with your keys.
Cost Comparison (2012-2014 Hyundai Accent ECM)
Prices can vary based on your location and the supplier, but here is a general breakdown of what to expect:
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $1,300 - $1,900 | Purchased from a Hyundai dealership. Does not include labor/programming. |
| Remanufactured (Pre-Programmed) | $250 - $550 | From online specialists. Arrives ready to install ("Plug and Play"). |
| Used OEM (Salvage) | $50 - $200 | Requires separate programming at a dealer or shop. |
| Shop Labor (Replacement) | $100 - $200 | Physical replacement is quick (under 1 hour). The ECM is easily accessible under the hood. | 🎬 See this walkthrough on how to remove the ECM unit.
| Shop Labor (Programming) | $100 - $175 | Typically 1-1.5 hours of labor at a dealer or specialist shop. |
Frequently Asked Questions (FAQ)
Do I absolutely have to program a replacement ECM?
Yes. The ECM is tied to the car's anti-theft immobilizer system. A replacement ECM, whether new or used, must be programmed to your vehicle's specific keys or the engine will not start.
Where is the ECM located on a 2012-2014 Hyundai Accent?
The ECM is located in the engine bay, on the driver's side, near the battery and firewall. 🎬 Watch: See exactly where the ECM is located under the hood. It is a silver metal box with two large electrical connectors.
Can a locksmith program this ECM?
It depends on the locksmith. Some advanced automotive locksmiths have the tools (like a J2534 device) and software subscriptions to program Hyundai ECMs, but many do not. It is more common for a dealership or a specialized independent auto repair shop to perform this service.
Can I use an ECM from a car with a manual transmission?
No. The part numbers listed are specifically for vehicles with an automatic transmission. The ECM also controls transmission functions, so using a module from a manual transmission car will cause shifting problems and fault codes.
My car won't crank. Could it be the ECM?
It's possible, but check other causes first. A forum user with a no-crank issue on a 2013 Accent traced the problem to a blown fuse labeled "TCM" (Transmission Control Module) in the engine bay fuse box, which also supplies power to the ECM. Always check all related fuses in both the engine bay and interior fuse panels before assuming the ECM is bad.
Helpful Videos
Technical Specifications
OEM Part Numbers: 39110-2BAD5 39110-2BAD7 39110-2BAS1 39110-2BAS9
Fits 2012-2014 Hyundai Accent with 1.6L GDI engine and automatic transmission for the US Market.
