2007-2010 Hyundai Elantra ECM: The Manual Transmission & No-Immobilizer Rule

Critical Compatibility Warnings

Symptoms of a Failing ECM

A failing ECM can be difficult to diagnose because its symptoms often mimic other problems. The most common sign is a process of elimination: if you have multiple, seemingly unrelated issues or have replaced other parts without success, the ECM may be the culprit.

• Check Engine Light On: This is the most common symptom. However, a check engine light can mean many things. If the light is on and you experience other symptoms on this list, it's a stronger indicator of ECM failure.
• Engine Will Not Start: The engine may crank but refuse to start. This can happen if the ECM is not sending the correct signals to the fuel pump or ignition system.
• Engine Stalling or Misfiring: The engine may stall unexpectedly while driving or run rough. This can be caused by the ECM failing to properly manage the air-fuel mixture or spark timing.
• Poor Engine Performance: You might notice a sudden loss of power, poor acceleration, or a significant drop in fuel economy.
• Multiple Unrelated Trouble Codes: If a scan tool shows a long list of error codes for various different sensors and systems, it can sometimes point to a single faulty computer that is misinterpreting the data.
🎬 Watch: A detailed breakdown of common ECM failure symptoms.

Common Associated OBD-II Codes

While no single code definitively condemns the ECM, certain codes or patterns are suspicious. Codes indicating internal processor failure (often in the P0600-P0610 range) are a strong sign. Likewise, persistent communication errors or multiple sensor circuit faults (e.g., P0101, P0113) that don't resolve after replacing the sensor can point to a bad ECM.

Buying a Used Engine Control Module

Buying a used OEM module is the most cost-effective way to get your Elantra back on the road. Because these specific modules do not require programming when matched correctly, a used unit is an excellent value. Here’s what you need to know.

The Golden Rule: Match Your Part Number EXACTLY

The single most important step is to physically remove your old ECM and read the part number on the sticker. Do not buy a replacement based on the year and model alone. Differences in emissions (Federal vs. California) and other mid-year production changes mean that only an identical part number will guarantee a plug-and-play replacement.

How to Find Your ECM and Part Number

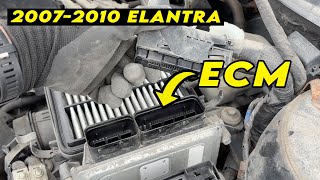

The ECM on the 2007-2010 Hyundai Elantra is located in the engine compartment, bolted directly to the side of the air filter housing. It is a silver metal box with two large electrical connectors. The part number is printed on a white sticker on the top of the unit and will typically start with '391...'.

How to Check for an Immobilizer

This part is ONLY for vehicles without a factory immobilizer. An immobilizer is a security system that prevents the engine from starting unless it recognizes a special chip inside the key. The easiest way to see if your car has one is to turn the key to the 'ON' position. If you see a small indicator light on the dashboard that looks like a car with a key inside of it, your vehicle has an immobilizer and this part is NOT correct for you.

What About VIN Programming?

For these non-immobilizer models, a used ECM with a matching part number should start and run the vehicle without any special programming. However, the Vehicle Identification Number (VIN) from the donor car is stored in the used ECM. In some states, this VIN mismatch may cause the vehicle to fail an emissions inspection. Services are available that can change the VIN in the used ECM to match your vehicle's VIN if this becomes an issue.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

There are no major recalls or TSBs specifically for the Engine Control Module on the 2007-2010 Hyundai Elantra. However, this model range was subject to important safety recalls for other electronic modules:

• NHTSA Recall 20V061000: Risk of fire from the Anti-Lock Brake System (ABS) module, which could short circuit even when the car is off. The fix involves installing a relay in the main junction box.
• NHTSA Recall 11V143000: Issues with the Airbag Control Module and passenger seat weight sensor that could affect airbag deployment.

It is important to distinguish these recalls from any issues with the main Engine Control Module (ECM).

Replacement Procedure

Replacing the ECM is a straightforward DIY job that requires basic hand tools.

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on any electronic components.
2. Access the ECM: The ECM is attached to the air filter box in the engine bay. You may need to remove the top of the air filter box for better access.
3. Disconnect Connectors: Release the locking tabs and carefully pull the two large wiring harness connectors from the ECM.
4. Unbolt the ECM: Remove the 10mm bolts holding the ECM to its bracket on the airbox.
5. Install the New ECM: Bolt the new module in place, reconnect the wiring harnesses, reassemble the airbox, and reconnect the battery.
🎬 Watch this step-by-step guide to replacing your ECM.

Cost Comparison

Frequently Asked Questions (FAQ)
