2013-2016 Hyundai Santa Fe Sport 2.4L ECM: The Critical Knock Sensor Update and Programming Guide

Symptoms of a Failing ECM in a 2013-2016 Santa Fe Sport

A faulty Engine Control Module can cause a wide range of problems. While some symptoms are generic, others are very specific to this vehicle due to its unique history with engine recalls and software updates.

• Check Engine Light: This is the most common symptom. The light may be steady or, in serious cases, flashing. A flashing light indicates a severe misfire or a critical engine event.
• Engine Stalling or No Start: The engine may crank but fail to start, or it may start and then immediately stall. It could also shut off randomly while driving, which is a major safety hazard.

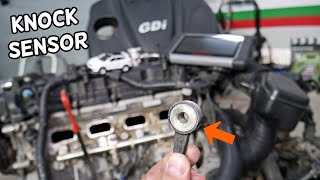

• Limp Mode (Engine Protection Mode): A key symptom for this specific vehicle is the activation of "Engine Protection Mode." If the ECM detects a problem, particularly from the knock sensor, it will limit engine RPM 🎬 See this video to find the knock sensor's exact location. to around 1800-2000 and reduce vehicle speed. This is intended to prevent catastrophic engine damage and allow you to drive to a repair shop.
• Poor Engine Performance: You might notice a sudden drop in fuel economy, sluggish acceleration, engine hesitation, or rough idling. This happens because the ECM can no longer accurately control the air-fuel mixture and ignition timing.
• Erratic Shifting: For automatic transmissions, a bad ECM can send incorrect data to the transmission controller, leading to hard, delayed, or unpredictable gear shifts.

Associated OBD-II Diagnostic Codes

If you have a Check Engine Light, a code scanner will likely show one or more of the following codes:

• P1326 - Knock Sensor Detection System: This is a Hyundai-specific code that is directly related to the software update for detecting engine bearing wear. Seeing this code almost certainly means the vehicle is in limp mode due to detected engine vibrations.
• P0601 - P0606 (Internal Control Module Errors): These codes point directly to a failure within the ECM itself, such as a memory or processor error.
• Misfire Codes (P0300-P0304): A failing ECM can cause misfires in one or more cylinders.
• Sensor Circuit Codes: The ECM may incorrectly report failures in other sensors (e.g., oxygen sensor, MAF sensor) when the root cause is the ECM itself.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

The ECM for the 2013-2016 Santa Fe Sport is directly involved in one of the most significant issues for this vehicle: the Hyundai Theta II engine controversy. While the ECM itself is not typically the cause of the engine failures, its software has been updated to try to mitigate the damage.

Campaign 953: Knock Sensor Detection System (KSDS) Update

Hyundai issued a product improvement campaign (TSB 19-01-002H and others) to update the ECM software. This update, known as the Knock Sensor Detection System (KSDS), enhances the ECM's ability to "listen" for the specific vibrations associated with premature connecting rod bearing wear. If these vibrations are detected, the ECM triggers the flashing Check Engine Light, stores code P1326, and puts the vehicle into limp mode 🎬 Watch: Understanding P1326 and the Theta II bearing failure issue. to prevent a catastrophic engine seizure. This software update is a critical piece of the vehicle's history and any replacement ECM must have this software (or a newer version) installed.

Programming and Immobilizer Requirements

• What happens if I don't program it? The vehicle will not start, or it may start for a moment and then shut down. The immobilizer system will not recognize the unprogrammed ECM and will prevent the engine from running.
• Who can program the ECM?
  • Hyundai Dealerships: This is the most reliable option. They have the proprietary GDS (Global Diagnostic System) equipment to perform the programming correctly.
  • Qualified Independent Shops: Some independent mechanics have aftermarket J-2534 pass-thru devices and a subscription to Hyundai's technical service website, which allows them to perform programming.
  🎬 Watch: A walkthrough of the Hyundai aftermarket ECM programming procedure.
  • Mail-In Services / Pre-Programmed Units: Several online retailers sell used or remanufactured ECMs that they will pre-program with your VIN before shipping. This makes the unit "plug and play" upon arrival.

Buying a Used Engine Control Module (ECM)

Buying a used OEM ECM can be a cost-effective solution, but you must be careful to ensure compatibility and proper programming. A used OEM module is often more reliable than a cheap, new aftermarket part.

1. Match the Part Number: Start by matching the OEM part number on your original ECM exactly. The part number is printed on the unit's label. Known compatible part numbers for the 2.4L AWD model include 39100-2GAE5, 39100-2GAE6, 39100-2GAE7, 39100-2GAE9, 39130-2GAE9, and 39130-2GAG4. While some may be interchangeable, an exact match is the safest bet.
2. Confirm Programming: This is the most important step. The module is a paperweight without programming. Either buy from a seller who will pre-program the unit to your VIN or have a confirmed appointment with a dealer or shop that can program it for you.
3. Ask About Software Updates: Ask the seller if they know if the unit has the latest software, specifically the KSDS update (Campaign 953). If you have the unit programmed at a dealer, they should automatically install the latest available software.
4. Physical Inspection: When you receive the part, inspect the case for any signs of physical damage, like cracks or dents. Check the connector pins to ensure they are straight, clean, and free of corrosion.

Cost Breakdown

Prices can vary based on your location and the chosen repair path. Programming costs are often separate unless you buy a pre-programmed unit.
