2018-2019 Hyundai Sonata ECM: Decoding Failures, Limp Mode, and Programming
This guide covers the common failure symptoms, critical programming requirements, and compatibility traps for the 2018-2019 Sonata's 2.4L engine computer.
- Programming is mandatory for any replacement ECM due to the vehicle's immobilizer system; the car will not start without it.
- Compatibility is critical: The ECM must be from a 2.4L, Federal emissions (ULEV), conventional keyed ignition Sonata.
- Many 'bad ECM' symptoms, like limp mode, are actually the KSDS software detecting a potential engine problem (DTC P1326). Investigate this before replacing the ECM.
- A used OEM module is a good value, but the part number must be an exact match to your original.
Critical Compatibility Warnings for 2018-2019 Sonata ECMs
Warning: Compatibility for this Engine Control Module is extremely specific. When purchasing a replacement, you MUST match three key criteria from the original vehicle: Engine (2.4L), Emissions System (Federal ULEV), and Ignition Type (Conventional Keyed). An ECM from a vehicle with California (SULEV) emissions or a keyless push-button start system will NOT work in a Federal emissions, keyed-ignition car, even if the part number is similar. Always verify the part number on your original module before ordering a replacement.
Symptoms of a Failing ECM
A failing ECM can cause a wide range of problems, from a simple check engine light to a car that won't start at all. It's important to distinguish between a true internal ECM failure and other issues that may seem like a bad computer.
- Check Engine Light: This is often the first sign. A code scan is necessary to point towards the problem. A code like P0605 (Internal Control Module ROM Error) strongly suggests the ECM itself has failed.
- Engine Stalling or Misfiring: The engine may stall unexpectedly while driving or at idle. This can be intermittent and happen without a clear pattern.
- No-Start Condition: The engine may crank but refuse to start. This happens because the faulty ECM is not providing the correct signals for fuel delivery and spark.
- Poor Engine Performance: You might notice a sudden drop in fuel economy, sluggish acceleration, or rough idling. This is due to the ECM failing to correctly manage the air-fuel mixture and ignition timing.
- Erratic Shifting: In some cases, a bad ECM can send incorrect data to the transmission control module, leading to harsh or delayed gear shifts.
Known Issues: Is It Your ECM or a Software Update?
Service Campaign 953: Knock Sensor Detection System (KSDS) Update
Many 2018-2019 Sonatas with the 2.4L engine are part of a Hyundai product improvement campaign to update the ECM's software. This update, often related to TSB 20-01-006H, enhances the Knock Sensor Detection System (KSDS). Its purpose is to detect early signs of engine bearing wear, a known issue with Hyundai's Theta II engines.
If the system detects an abnormal vibration, it will trigger DTC P1326, illuminate a flashing check engine light, and put the vehicle into a reduced-power 🎬 Watch: Understanding the P1326 code and Theta II engine protection mode. "Engine Protection Mode" (limp mode). In this mode, engine RPMs are limited to around 1800-2000, and acceleration is very slow. This is NOT an ECM failure; it is the ECM doing its job to prevent catastrophic engine damage. Before replacing the ECM, have a dealer check if your vehicle has the latest software and diagnose the underlying cause of the P1326 code.
Pro Tip: A no-crank condition in cold weather might not be the ECM. TSB 19-EE-007H notes that a loose starter motor terminal nut can cause this issue on 2018 Sonatas and can be easily mistaken for a more serious electronic failure.
🎬 Watch: How to diagnose a no-start condition before replacing parts.Buying a Used 2018-2019 Sonata ECM: What You Must Know
A used OEM engine computer is a cost-effective alternative to a new one, but careful purchasing is essential.
- Verify the Part Number: The most important step. The part number on the replacement module MUST exactly match the one on your original ECM. The known compatible OEM part numbers for this specific configuration are 39102-2GGJ0, 39102-2GGK2, 39112-2GGJ0, and 39112-2GGK2.
- Confirm Compatibility: Double-check that the donor vehicle had a 2.4L engine, Federal (ULEV) emissions, and a conventional keyed ignition. Do not buy a module from a SULEV (California emissions) or push-button start vehicle.
- Inspect for Damage: When you receive the part, check the housing for any signs of physical damage or corrosion. Examine the connector pins to ensure they are straight and clean. Water intrusion is a common cause of electronic module failure.
- Why Used OEM is Often Better: For a complex electronic part like an ECM, a used original equipment part is often more reliable than a new, cheap aftermarket unit. The OEM hardware and firmware are designed specifically for your vehicle's systems, reducing the risk of strange compatibility issues after installation.
ECM Replacement and Programming Requirements
Warning: A replacement ECM is NOT a plug-and-play part. The vehicle will not start or run correctly until the module is programmed.
Programming is a mandatory step that syncs the replacement ECM to your vehicle's unique Vehicle Identification Number (VIN) and, most importantly, its anti-theft immobilizer system. If this step is skipped, the immobilizer will prevent the engine from starting, assuming the car is being stolen.
Who Can Program a Hyundai ECM?
- Hyundai Dealerships: They have the guaranteed ability to program a new or used ECM to your vehicle.
- Independent Repair Shops: Many professional shops have a J-2534 pass-thru device and a subscription to Hyundai's technical service website, allowing them to perform factory-level programming.
- Automotive Locksmiths: Some advanced automotive locksmiths have tools that can perform the immobilizer sync and VIN writing required when an ECM is replaced. It is best to confirm they have this capability specifically for a 2018-2019 Sonata ECM swap.
Cost to Replace a 2018-2019 Sonata ECM
Costs can vary significantly based on the part source and labor rates. Programming is an additional cost to the part itself.
| Item | Estimated Cost |
|---|---|
| New OEM ECM (Dealer) | $730 - $1,050 |
| New Aftermarket ECM | $300 - $500 |
| Used OEM ECM | $75 - $200 |
| Remanufactured ECM | $250 - $450 |
| Shop Labor (Installation & Programming) | $200 - $350 (1.5-2.5 hours) |
Frequently Asked Questions (FAQ)
Can I install a replacement ECM myself?
You can physically install the module yourself, as it is typically easy to access under the hood. 🎬 See this walkthrough on how to remove and replace the ECM. However, the vehicle will be undrivable until it is towed to a dealer or shop for the mandatory programming.
What happens if I don't program the new ECM?
The car will not start. The immobilizer system will not recognize the unprogrammed ECM and will prevent the engine from running as an anti-theft measure.
Will an ECM from a push-button start Sonata work in my keyed-start car?
No. The security and communication protocols are different. You must use an ECM from a vehicle with a conventional keyed ignition to match your car's configuration.
My car is in limp mode. Is my ECM bad?
Not necessarily. It is very likely your car's Knock Sensor Detection System (KSDS) has detected a potential engine issue and put the car in 'Engine Protection Mode'. This is a software function, not a hardware failure. You should have a Hyundai dealer investigate for DTC P1326 and check for any needed software updates or engine repairs.
Helpful Videos

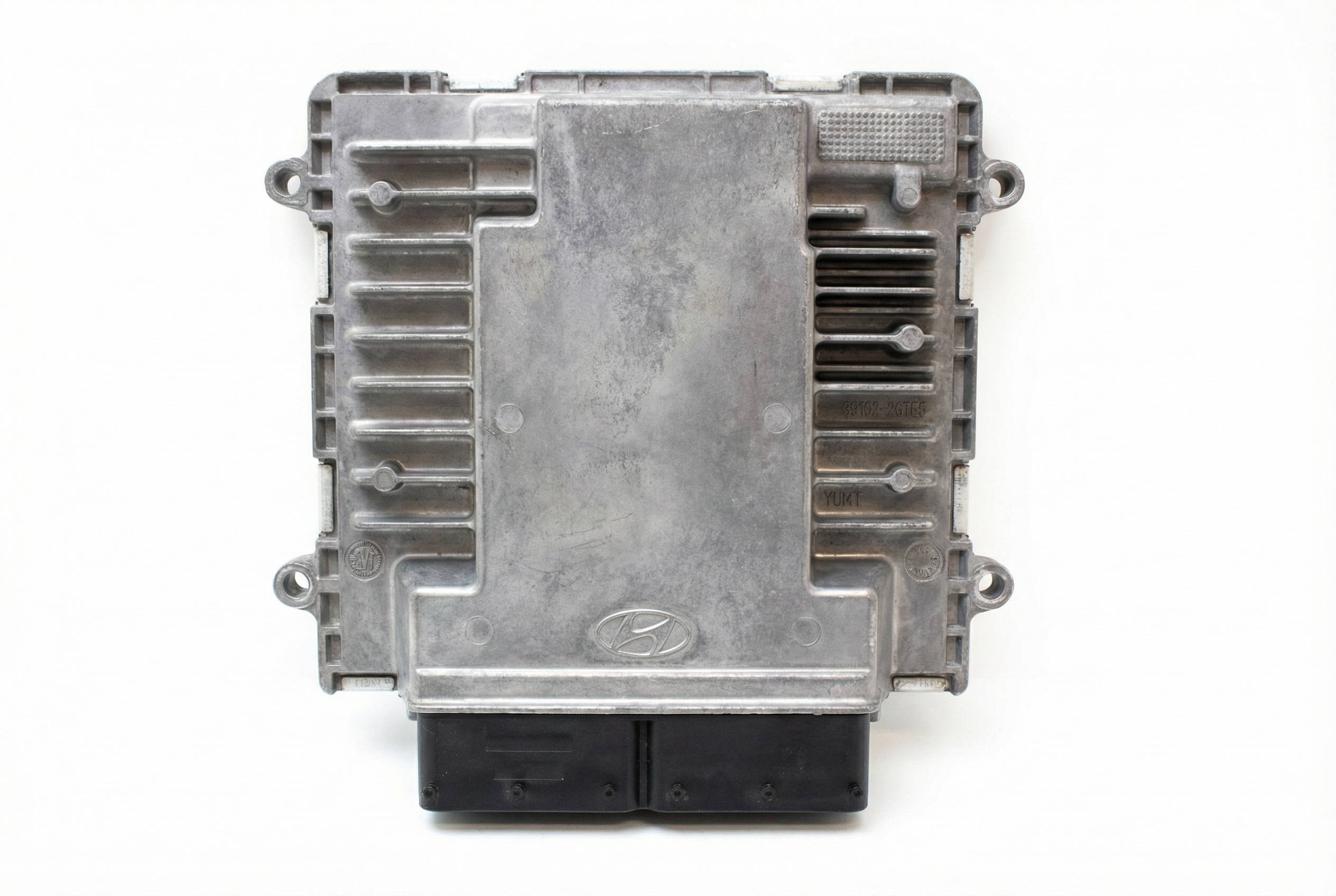

Technical Specifications
OEM Part Numbers: 391022GGJ0 391022GGK2 391122GGJ0 391122GGK2
Fits: 2.4L GDI Engine, Federal (ULEV 70) Emissions, Conventional Keyed Ignition ONLY.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
