Jeep Cherokee & Wrangler 2.0L ECM 2019-2024: The Critical Programming Step After Replacement

Symptoms of a Failing ECM

A problem with the ECM can manifest in many ways, sometimes mimicking other component failures. Diagnosis should always involve ruling out simpler issues like bad sensors or wiring first. Here are the most common signs that your ECM may be faulty:

• Check Engine Light: This is the most obvious sign. The ECM will store Diagnostic Trouble Codes (DTCs) that can be read with an OBD-II scanner. Codes pointing to internal processor errors (like the P0600 series) or communication failures are strong indicators of an ECM issue.
• Engine Performance Problems: You may experience rough idling, engine stuttering or misfiring, poor acceleration, and a sudden drop in fuel economy. This happens because the ECM can no longer correctly manage the air-fuel mixture or ignition timing.
• No-Start or Intermittent Stalling: A completely failed ECM will leave the vehicle without engine management, preventing it from starting. It can also cause the engine to shut off unexpectedly while driving.
• Communication and Electrical Issues: Since the ECM communicates with other modules like the Transmission Control Module (TCM) and ABS module, a faulty ECM can cause erratic shifting, incorrect gauge readings, or warning lights for other systems to appear.
• Red Security Light / Immediate Stall After Starting: If the engine starts but shuts off after a couple of seconds and a red security light appears on the dash, it's a classic sign that the ECM is not properly synced with the vehicle's immobilizer system.

Known Issues, TSBs, and Recalls

Software Updates (Flashes) vs. Replacement

Before you replace the ECM, it's crucial to check if a software update could solve your problem. Jeep has issued several Technical Service Bulletins (TSBs) for the Cherokee and Wrangler that instruct dealers to reprogram, or "flash," the PCM with updated software. These updates can resolve issues like false check engine lights for EVAP leaks (P0456), oil pressure circuit faults (P06DD), and multiple cylinder misfires (P0300). A reflash is significantly cheaper than a full replacement and should always be considered first.

Recalls

While there have been several recalls for these Jeep models, as of late 2024, there are no active recalls for a widespread defect of this specific Engine Control Module. Recalls for these vehicles often involve other components, such as the instrument panel cluster or systems on the 4xe hybrid models (which use a different ECM). Do not confuse a recall for another part with a problem in your ECM.

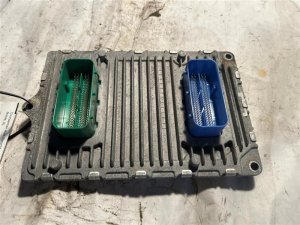

Buying a Used Engine Control Module (ECM)

Purchasing a used OEM ECM is a great way to save money, but it requires careful attention to detail. Because this part is linked to your vehicle's security, it's not a simple "plug and play" component.

1. Match the Part Number: The most important step is to match the OEM part number exactly. The part numbers for this module are 5150861AH, 5150861AI, and 5150861AJ. The later letters (AI, AJ) are newer revisions that replace the earlier versions. Any of these should be compatible, but getting the newest revision (AJ) is often best.
2. Ignore "Plug and Play" Claims: Many sellers claim their modules are "plug and play." For this specific Jeep ECM, this is false. The module MUST be programmed to your vehicle's VIN and security system.
3. Budget for Programming: Factor in the cost of programming when buying a used module. This service can cost between $100 and $300, depending on the shop. A used module plus programming is still often much cheaper than a new one from the dealer.
4. Physical Inspection: When you receive the part, inspect the case for any signs of damage, like cracks or water intrusion. Check that the connector pins are straight and free of corrosion.

Programming: The Mandatory Final Step

You cannot skip this step. The ECM is tied to the vehicle's immobilizer, an anti-theft system that prevents the engine from running without a recognized key. When you install a new or used ECM, it does not recognize your vehicle's keys or security profile.

What happens if you don't program it? The engine may crank but not start, or it will start and then immediately stall, and a red security light will illuminate on the dashboard.

Who Can Program the ECM?

• Jeep Dealerships: This is the most reliable option. They have the proprietary wiTECH diagnostic tool required to perform the programming and link the ECM to the vehicle's VIN and all other control modules.
• Qualified Independent Shops: Many independent repair shops that specialize in Chrysler/Jeep vehicles invest in professional-grade scan tools and J2534 pass-thru devices that can perform factory-level programming.
• Automotive Locksmiths: Some advanced automotive locksmiths have the tools to program keys and modules, but you must confirm they have the specific capability for this late-model Jeep 🎬 Watch: How a used PCM is programmed using professional tools. before proceeding.

Replacement Location and Overview

Physically replacing the ECM is relatively straightforward. On both the Jeep Cherokee (KL) and Jeep Wrangler (JL), the ECM is located in the engine bay, typically mounted to the side near the air filter housing or firewall.

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on any electronic component.
2. Unplug Connectors: Carefully release the locking tabs and unplug the large electrical connectors from the module.
3. Remove Mounting Bolts: Unbolt the three or four mounting bolts holding the ECM to its bracket.
4. Install in Reverse Order: Mount the new module, plug in the connectors, and reconnect the battery. The vehicle is now ready for programming.
🎬 See this walkthrough of a Jeep Wrangler 2.0L PCM swap.
