2017-2021 Jeep Compass ECM: Decoding Stalls, No-Starts, and Programming
This guide covers the critical recall, programming requirements, and common failure symptoms for the 2017-2021 Jeep Compass Engine Control Module (ECM).
- A replacement ECM MUST be programmed to your vehicle's VIN and anti-theft system to function.
- 2018 models are subject to a critical safety recall (NHTSA 18V524000) for ECM failure causing stalling or no-starts. Check with a dealer.
- The most cost-effective replacement is a used OEM unit from a vendor that offers pre-programming or cloning services.
- Common failure symptoms include stalling, no-start, check engine lights, rough running, and transmission shifting problems.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
The ECM for the 2017-2021 Jeep Compass, particularly in the 2018 model year, is associated with significant factory recalls and service campaigns. Understanding these issues is crucial for diagnosis and repair.
NHTSA Recall 18V524000 (Chrysler Code U87)
This is the most critical issue affecting the 2018 Jeep Compass. The Powertrain Control Module (PCM) may have been built with a faulty voltage regulator chip on the circuit board. This defect can cause the engine to stall while driving or fail to start altogether, posing a significant safety risk. The official remedy from Chrysler (FCA) is a complete replacement of the powertrain control module, free of charge, at a dealership.
Customer Satisfaction Notification W20
This is a service campaign, not a safety recall, for 2017-2018 Compass models with the 2.4L engine. It addresses a condition that could lead to abnormally high oil consumption. If left unaddressed, the resulting low oil level could cause the engine to stall. The fix involves a dealer inspection and, if necessary, a software update (reprogram) of the PCM.
General Electrical Problems & TSBs
The early second-generation Compass, especially the 2018 model, is known for a higher-than-average number of electrical complaints. Some owners have reported that seemingly major ECU-related problems were traced back to simple issues like loose wiring harness connections. Additionally, several Technical Service Bulletins (TSBs) have been issued that involve flashing (updating) the PCM software to resolve issues like check engine light illumination or poor drivability.
Symptoms of a Failing ECM
A failing ECM can cause a wide range of problems, from subtle to severe. Here are the most common symptoms for the Jeep Compass:
- Engine Stalling or No-Start: This is the most serious symptom and is directly linked to recall 18V524000. The vehicle may shut off while driving or refuse to start. 🎬 Watch: Troubleshooting a 2018 Compass that cranks but won't start.

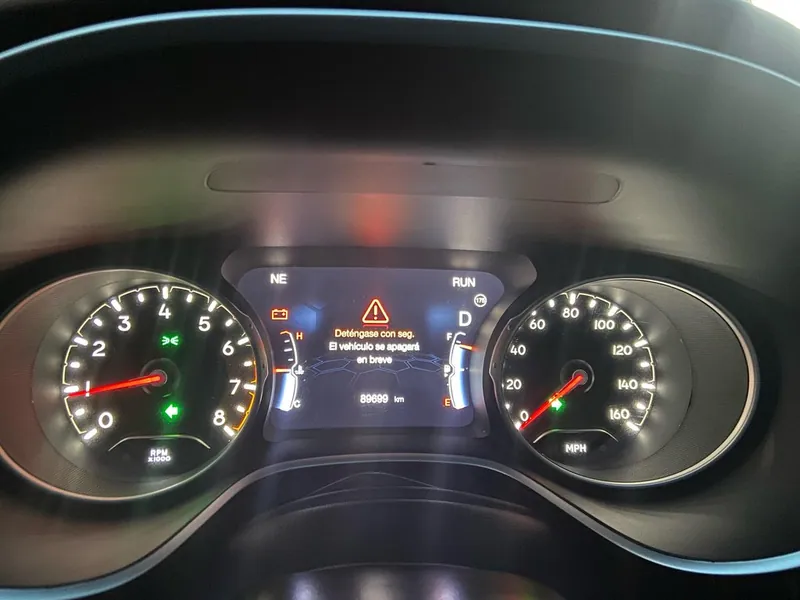

- Check Engine Light: A constant or intermittent check engine light is a common sign. The ECM may report codes for itself (P0600-P0605 series) or for sensors it controls, even if the sensors are good.
- Engine Performance Issues: You may experience a rough idle, engine stuttering or misfiring, and a noticeable loss of power or acceleration.
- Poor Fuel Economy: A sudden drop in gas mileage can occur if the ECM is not managing the air-fuel mixture correctly.
- Transmission Shifting Problems: Because the ECM communicates with the Transmission Control Module (TCM), a faulty ECM can cause hard shifts, delayed shifting, or other erratic transmission behavior.
Buying a Used Engine Control Module (ECM)
Warning: A replacement ECM for a 2017-2021 Jeep Compass will not work until it is programmed to your specific vehicle. This is not a plug-and-play part.
The single most important factor when buying a used ECM is programming. The module is tied to your vehicle's Vehicle Identification Number (VIN) and the Sentry Key Immobilizer Module (SKIM), which is the anti-theft system. If you install an unprogrammed ECM, the vehicle will not start.
When purchasing a used OEM ECM, you have two main paths for programming:
- Install and Program Locally: You can buy a used ECM with a matching part number, install it in your vehicle, and then have it towed to a dealership or a qualified independent shop with the proper scan tools to have it programmed. 🎬 See how a professional shop fixes a mismatched PCM installation.
- Pre-Programmed Mail-Order Service: Many online sellers offer pre-programmed or "cloning" services. With this popular option, you either provide your car's VIN when ordering, and they program the used unit before shipping it, or you send them your original ECM, and they clone the data onto the replacement unit. This allows for a true plug-and-play installation at home without needing a dealer visit. 🎬 Watch: How PCM cloning works for a true plug-and-play replacement.
When inspecting a used ECM, check the connectors for any signs of corrosion, bent pins, or physical damage to the case. Given the known issues with electrical faults, a clean, undamaged unit is essential.
Cost to Replace a 2017-2021 Jeep Compass ECM
The cost can vary significantly based on the part source and labor.
| Item | Estimated Cost |
|---|---|
| New OEM (Dealer) | $400 - $800 |
| Used OEM (Programmed) | $250 - $450 |
| Shop Labor for Installation & Programming | $150 - $300 |
| Total Estimated Cost (DIY with Programmed Part) | $250 - $450 |
| Total Estimated Cost (Installed at Shop) | $400 - $1100 |
Frequently Asked Questions (FAQ)
Does a replacement ECM for a Jeep Compass have to be programmed?
Yes, absolutely. The ECM must be programmed with your vehicle's VIN and security key information. If it is not programmed, the anti-theft system will prevent the engine from starting.
Can I program a Jeep Compass ECM myself?
Programming an ECM requires specialized, expensive scan tools and a software subscription to access manufacturer data. It is not feasible for a DIY mechanic. Your options are a dealership, a well-equipped independent shop, or using a mail-in programming service when you buy the part.
My 2018 Compass is stalling. Is it the ECM?
It is very likely. 2018 models are covered by NHTSA recall 18V524000 for a faulty ECM that causes stalling and no-start conditions. You should contact a Jeep dealer with your VIN to see if your vehicle is part of this recall; if so, the replacement should be performed for free.
What's the difference between an ECM, ECU, and PCM?
The terms are often used interchangeably. ECU (Engine Control Unit) is a generic term. ECM (Engine Control Module) specifically refers to the engine's computer. PCM (Powertrain Control Module) is the term Chrysler/Jeep uses, and it signifies that the module controls both the engine and the transmission. For this vehicle, ECM and PCM refer to the same part.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68342095AA 68342095AB P68342093AA 68335986AB 5150762AB P68412596AD
Controls 2.4L MultiAir engine functions and communicates with the vehicle's CAN bus network. Integrated with the Sentry Key Immobilizer System (SKIM).
