2022 Jeep Compass ECM: Programming, Known Issues, and Replacement Guide

Symptoms of a Failing 2022 Jeep Compass ECM

A failing Engine Control Module can cause a wide range of confusing and often intermittent issues. Because the ECM controls so many different systems, symptoms can sometimes mimic other problems like bad sensors or fuel system issues. Here are the most common signs that the ECM itself may be the culprit.

• Check Engine Light: This is the most common symptom. The light may be steady or, in severe cases, flashing. A flashing light indicates a serious misfire that could damage the catalytic converter and means you should stop driving the vehicle immediately.
• Engine Performance Problems: You may experience engine stuttering, hesitation on acceleration, rough idling, or a general loss of power. This can happen if the ECM is failing to correctly manage the air-fuel mixture or ignition timing.
• Car Won't Start or Stalls Randomly: The ECM plays a key role in the starting sequence. A complete failure can prevent the engine from starting at all. 🎬 Watch: Troubleshooting a Jeep Compass that cranks but won't start Intermittent internal faults can also cause the engine to shut off unexpectedly while driving.
• Poor Fuel Economy: If the ECM is not managing the engine efficiently, you may notice a sudden and significant drop in your gas mileage.
• Communication and Electrical Glitches: In some cases, a failing ECM can cause strange behavior in the instrument cluster or trigger a flood of seemingly unrelated error codes from various sensors. This happens because the ECM is the central hub for so much of the vehicle's data.
• Specific Diagnostic Trouble Codes (DTCs): While many codes can point to an ECM issue, codes indicating internal processor failure (like P0601, P0606) are a strong sign. Additionally, a Technical Service Bulletin for some 2022 models mentions that a PCM software update can fix issues causing codes P0087 (Fuel Rail Pressure Too Low) and P0088 (Fuel Rail Pressure Too High).

Known Issues, Recalls, and Technical Service Bulletins

As of early 2026, there are no specific recalls for the Engine Control Module on the 2022 Jeep Compass. However, there are some related software updates and bulletins to be aware of.

Technical Service Bulletin (TSB) 18-106-23

This bulletin, which also exists as Rapid Service Update (RSU) 23-302, applies to some 2022 Jeep Compass models equipped with the 1.3L Turbo engine (this is a different engine than the more common 2.4L). It involves a software update for the Powertrain Control Module (PCM) to address a Malfunction Indicator Lamp (MIL) caused by fuel rail pressure codes P0087 or P0088. A dealership can check if this update applies to your vehicle's VIN.

Instrument Cluster Recalls

Several recalls (NHTSA 23V-058, FCA 15A) were issued for the 2022 Compass related to software and hardware issues causing the instrument panel to be too dim or not adjustable. While these do not involve the ECM directly, they highlight the complex and interconnected nature of the vehicle's electronic modules.

ECM Programming and Anti-Theft Requirements

Replacing the ECM in a modern Jeep is more complex than simply swapping the part. The ECM is a security-locked component tied directly to your vehicle's VIN and the anti-theft system (immobilizer).

• VIN Programming: The replacement module, whether it is new or used, must have your vehicle's 17-digit VIN written to its memory.
• Immobilizer Synchronization: After the VIN is written, the ECM must be synchronized with the vehicle's immobilizer module and existing keys. This security handshake ensures the vehicle recognizes the new 'brain' and allows the engine to start and run. Without this step, the engine will typically start for two seconds and then shut off, with a security light flashing on the dash.
• Security Gateway Module (SGM): 2018 and newer Chrysler/Jeep vehicles are equipped with a Security Gateway Module (SGM) that blocks unauthorized diagnostic commands. Programming the ECM requires either using the dealer's wiTECH software or bypassing the SGM with a special '12+8' adapter cable for aftermarket tools.
🎬 See how to access the Secure Gateway on Jeep vehicles

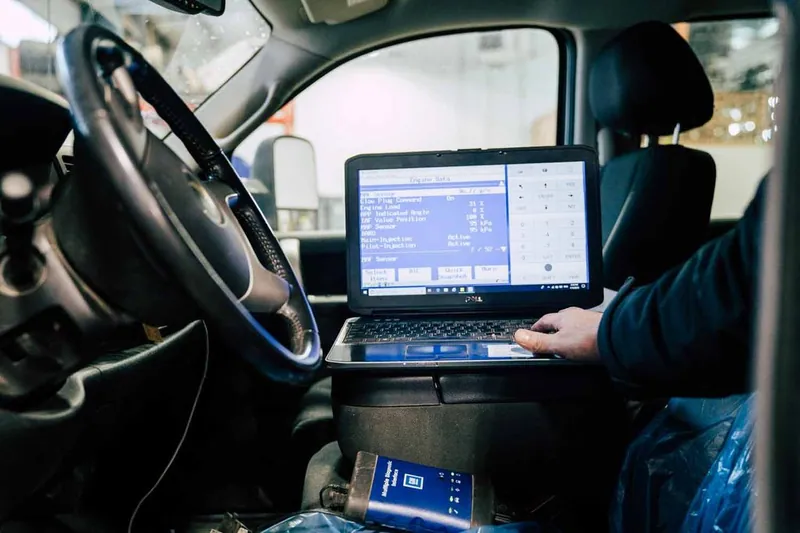

Who Can Program a Replacement ECM?

You have a few options, each with different costs and complexities:

1. Jeep Dealership: A dealer has the proprietary wiTECH software and direct access to vehicle security information, making this the most straightforward, albeit often most expensive, option.
2. Qualified Independent Shop: Many independent shops now have advanced scan tools like the Autel IM608 and the necessary subscriptions and bypass cables to perform ECM programming on newer Jeeps.
3. Mail-In Programming Service: Some companies allow you to send them your original and replacement ECMs, and they will clone the necessary data. Other services can pre-program a used or remanufactured ECM with your VIN before shipping it to you, simplifying the installation.

Buying a Used 2022 Jeep Compass ECM

Purchasing a used OEM ECM is a great way to save a significant amount of money compared to a new part from the dealer. However, because of the programming requirements, you must be careful.

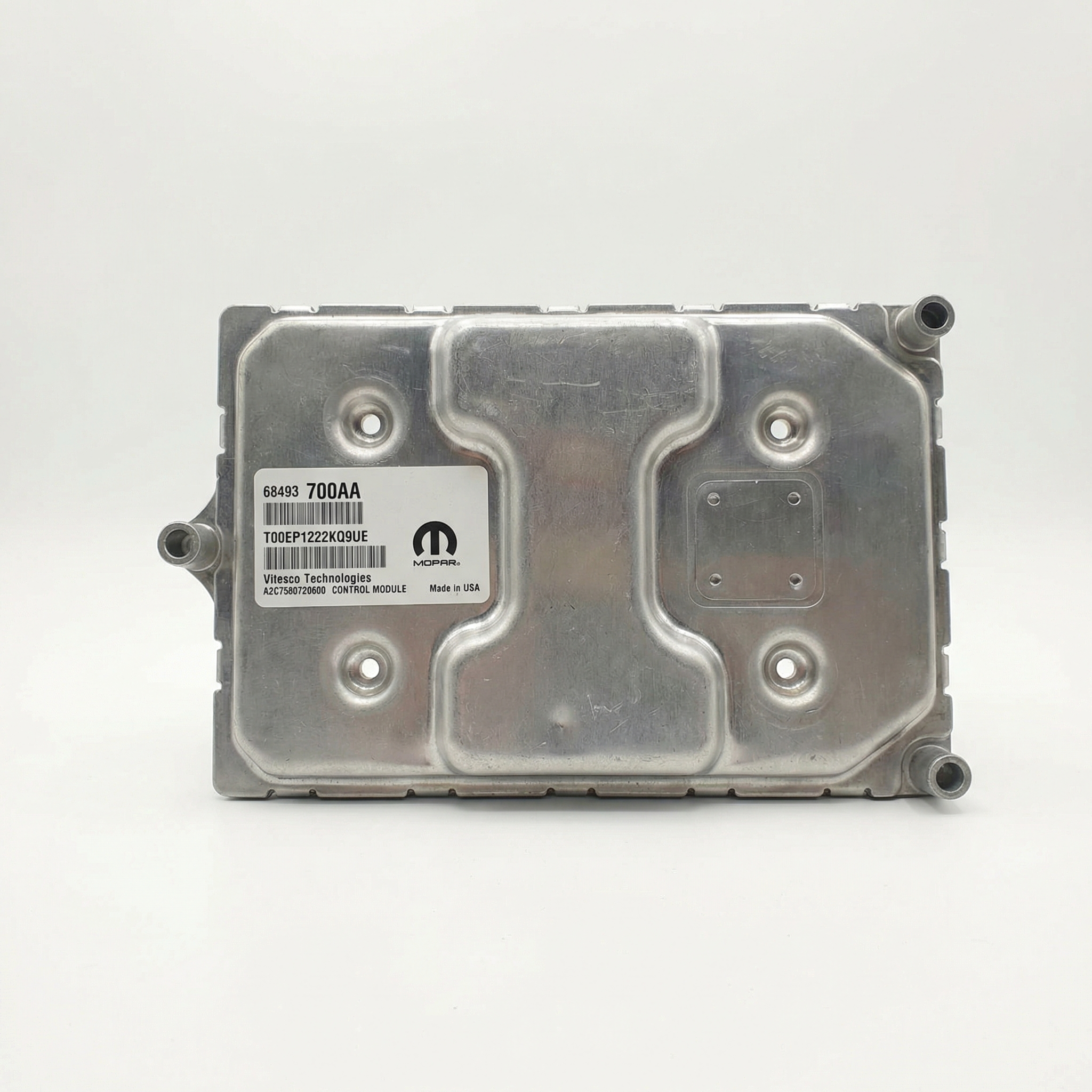

• Verify the Part Number: Ensure the part number on the used module matches your original exactly. The primary OEM part number is 68493700AA (or P68493700AA).

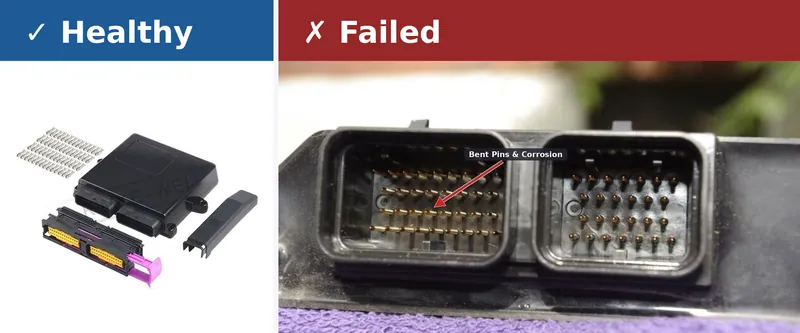

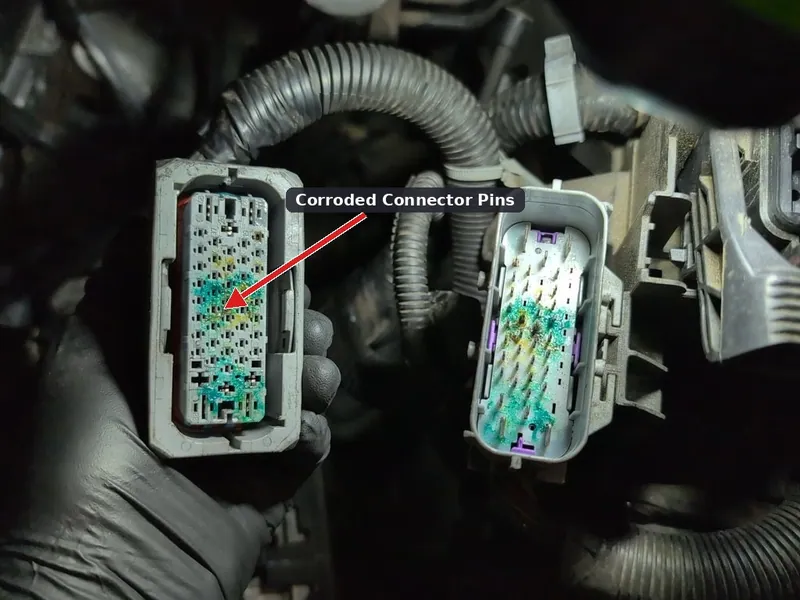

• Inspect for Damage: Check the module and its connectors for any signs of physical damage, corrosion, or water intrusion. A module from a vehicle with flood or fire damage should be avoided at all costs.
• Plan for Programming: A used ECM is just a metal box until it's programmed. Before you buy, have a solid plan for who will program it. Either line up a capable shop or purchase from a seller who offers VIN programming before shipment.
• Why Used OEM is a Good Choice: For a complex electronic part like an ECM, a used OEM module that has been tested and properly programmed is often more reliable than a new, unproven aftermarket unit (if one is even available). OEM modules are designed specifically for your vehicle's hardware and software ecosystem.

Replacement Cost Comparison

The cost to replace the ECM can vary widely based on the part source and labor for programming.

Frequently Asked Questions (FAQ)
