2012-2013 Kia Soul ECM: Failure Symptoms, Compatibility, and Replacement Guide

Symptoms of a Failing 2012-2013 Kia Soul ECM

A failing ECM can cause a wide range of problems, from subtle performance issues to a car that won't start at all. Because the ECM controls so many different systems, symptoms can sometimes be mistaken for other problems.

• Check Engine Light: This is the most common symptom. The ECM will trigger the light when it detects a fault in its own circuits or in a sensor it monitors. An internal ECM fault can set codes like P0605 (Internal Control Module ROM Error).
• Engine Performance Issues: You might notice the engine stuttering, misfiring, surging, or a general lack of power. This can happen if the ECM is failing to correctly calculate the air-fuel mixture or ignition timing.
• Car Won't Start: A completely failed ECM can prevent the engine from starting. It may crank but not fire up because the ECM isn't telling the fuel injectors or ignition coils to work.
• Poor Fuel Economy: If you notice a sudden, significant drop in your gas mileage, a faulty ECM could be the cause. It might be commanding the injectors to deliver too much fuel.
• Rough or Erratic Shifting (Automatic Transmission): The ECM communicates with the Transmission Control Module (TCM) to ensure smooth shifts. Faulty data from the ECM can cause harsh shifting, delayed engagement, or other transmission problems.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no direct recalls for the ECM itself on the 2012-2013 Soul 2.0L, there are important software updates and a major recall that involve reprogramming the ECM.

NHTSA Campaign 19V120000 (Kia SC176)

This major safety recall affects some 2012-2016 Kia Souls, but specifically those with the 1.6L GDI engine. The issue involves high exhaust gas temperatures that can damage the catalytic converter. Debris from a damaged converter can enter the engine, causing piston damage, engine stalling, and a risk of fire. The remedy is for a Kia dealer to upgrade the ECM software logic to prevent the catalytic converter from overheating. While this recall is for the 1.6L engine, it highlights the importance of having the latest factory software on your vehicle's computer.

TSBs for Software Updates

Kia has released Technical Service Bulletins (TSBs) that call for ECM software updates to fix various issues on 2012-2013 Souls. One TSB addresses a list of potential diagnostic trouble codes (DTCs), including P0456 (small evap leak), P2188 (system too rich at idle), and P0326 (knock sensor performance), by reprogramming the ECM with updated software. Another TSB for 2012 models addresses CAN communication errors that could be resolved with a software flash. This shows that having a dealer check for the latest software version can resolve issues without replacing the module itself.

Buying a Used Engine Control Module for Your 2012-2013 Kia Soul

Buying a used OEM ECM is a great way to save money, but you must be extremely careful about compatibility. Getting the wrong module will result in a car that doesn't run and a part you can't use.

1. Verify Compatibility (The Golden Rules)

This is the most critical step. The ECM for the 2012-2013 Soul is highly specific.

• Engine: Must be for the 2.0L engine. An ECM from a 1.6L Soul will not work.
• Transmission: Must be for an Automatic Transmission. An ECM from a manual transmission vehicle is not compatible.
• ISG / Eco Package: The vehicle must NOT have the automatic engine stop/start feature, also known as the ISG (Idle Stop & Go) or 'eco' package. This is a very common compatibility mistake.

2. Match the Part Number

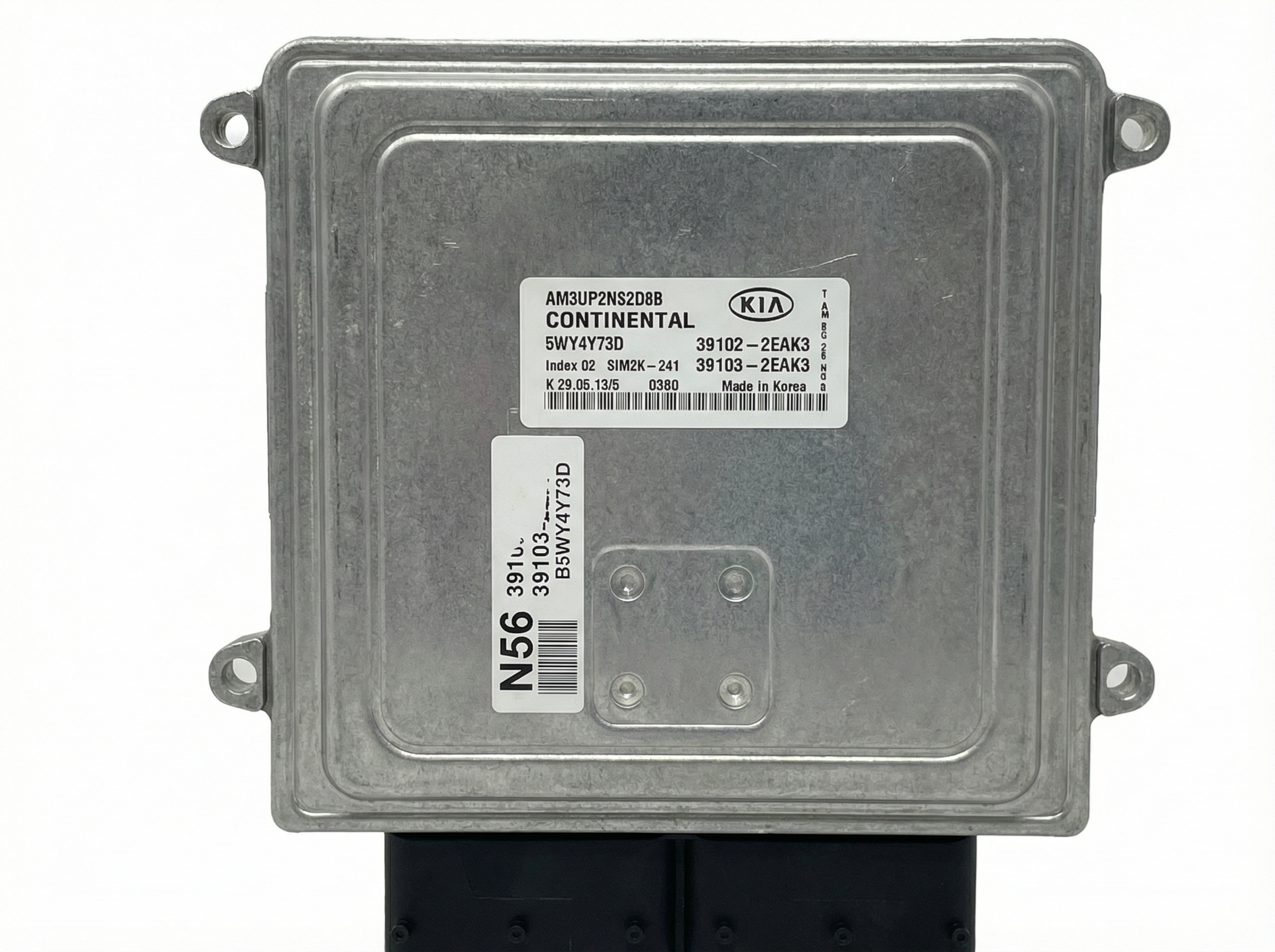

The surest way to guarantee compatibility is to match the OEM part number from your original ECM to the replacement unit. Remove your old module and find the number printed on the label. Known part numbers for this specific application include 39103-2EAK0 and 39103-2EAK3. Sellers may list other interchangeable numbers, but physically matching the primary number is the safest method.

3. Physical Inspection

When you receive your used ECM, inspect it carefully before installation.

• Check for any corrosion on the housing or, more importantly, on the connector pins. Water damage is a common cause of ECM failure.
• Ensure none of the pins in the electrical connectors are bent or broken.
• Look for signs that the case has been opened or tampered with.

Programming and Setup After Installation

While some sellers offer 'plug-and-play' modules that are pre-programmed to your vehicle's VIN, this is not always the case with a standard used part. The 2012-2013 Kia Soul uses a chip-based immobilizer system, and the ECM is a part of that system. If the replacement ECM is not properly introduced to the vehicle's security system, the car will not start.

This programming procedure typically requires specialized tools. While the dealership is always an option, many certified automotive locksmiths have the equipment to program keys and modules for these vehicles and may be a more affordable option. It is wise to call local locksmiths or independent repair shops to confirm they can perform this service before purchasing the part.
