2023 Kia Sportage ECM: A Guide to Part Numbers, Programming, and Replacement

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no direct recalls for the Engine Control Module itself on the 2023 Kia Sportage, several service campaigns and TSBs involve updating the ECM's software to fix other issues. This means a trip to the dealer for an unrelated problem might include a preventative ECM software flash.

• TSB ENG259 (Rev1): Some vehicles may show a Check Engine Light with diagnostic trouble codes P218100, P2181F0, or P2181F1, related to the cooling system. The fix requires a technician to replace the Integrated Thermal Management Module (ITM) and then perform a mandatory ECM software upgrade.
• TSB ENG328: This bulletin addresses a Check Engine Light with codes P0456 (small evaporative leak) or P013E. The solution is to apply an improved software logic to the ECM.
• Recall SC270 (NHTSA 23V298): Affects some 2023 Sportage models where the instrument cluster display may go blank upon starting the vehicle. This is caused by a software issue, and the fix is a free software update performed by a Kia dealer. While not an ECM issue, it highlights the complex software integration in the vehicle.
• Recall SC248 (NHTSA 22V626): A loose alternator battery positive terminal nut could cause the engine to stall or create an electrical surge. These electrical issues could potentially damage sensitive electronics like the ECM, though this is not the primary failure point of the recall.

Symptoms of a Failing Engine Control Module

A bad ECM can cause a wide range of problems, from a simple warning light to a car that won't start at all. Because the ECM controls so many functions, symptoms can sometimes be mistaken for other failing parts.

• Check Engine Light: This is the most common symptom. An ECM can set codes for sensors it controls, or it can set codes for internal processor failure, such as P0600 through P0606.
• Engine Stalling, Misfiring, or Hesitation: If the ECM fails to give the proper commands for fuel and spark at the right time, the engine can run erratically, stutter, or shut off completely.
• No-Start Condition: The engine may crank but refuse to start. The ECM is responsible for the final decision to fire the spark plugs and fuel injectors, so a dead module means a dead engine.
• Poor Performance and Fuel Economy: An ECM that isn't making correct calculations can lead to a noticeable drop in power, poor acceleration, and a sudden decrease in miles per gallon (MPG).
• Shifting Problems: The ECM communicates with the Transmission Control Module (TCM) to ensure smooth shifts. Faulty data from the ECM can cause hard or delayed shifting.

Buying a Used Engine Control Module

Purchasing a used OEM ECM is a cost-effective way to get your Sportage back on the road, especially since new aftermarket options for this model year are not widely available from major retailers. However, you must be extremely careful to buy the correct part.

How to Ensure Compatibility

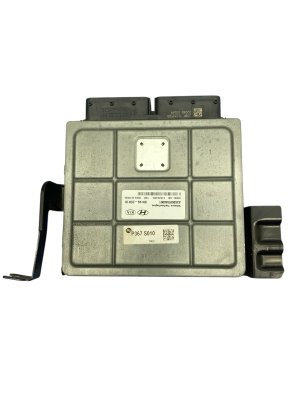

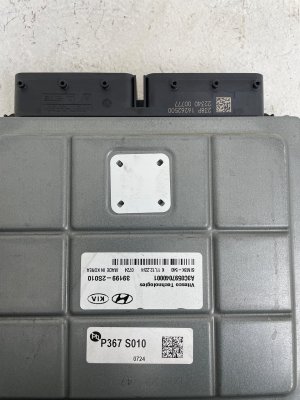

• Match the Part Number Exactly: The most critical step is to match the OEM part number on your original ECM. Do not rely on visual appearance alone. The primary part number for the 2.5L engine is 39100-2S226. Another number, 39199-2S010, may also be used or referenced.
• Verify Build Location: The initial data for this part indicates it is for US-built models only. One used part listing specifically notes compatibility for a "US built, ID 391002S226" module. Check your vehicle's VIN to determine where it was manufactured (a VIN starting with 'K' is typically Korea, while a VIN starting with a number like '5' is US).
• Physical Inspection: When you receive the used ECM, inspect it carefully. Look for any signs of corrosion on the pins, damage to the case, or evidence that it has been opened. The module is located behind the driver's side (LH) headlamp, an area that could be susceptible to front-end collision damage.

Programming and Installation

Physically replacing the ECM is straightforward, but it is only the first step. The new module must be electronically paired with your vehicle.

Programming Requirements

A replacement ECM for a 2023 Sportage must be programmed. This process syncs the replacement module to your vehicle's unique Vehicle Identification Number (VIN) and the anti-theft immobilizer system.

• Kia Dealership: The most straightforward option. A Kia dealer has the proprietary Kia Diagnostic System (KDS) required to perform the programming.
• Independent Repair Shops: Many well-equipped independent shops have J2534 pass-through devices and software subscriptions that allow them to perform dealer-level programming.
• Remote Programming Services: Some companies offer a service where they connect to your laptop and a compatible device remotely to program the module for you.
• Mail-In Services: You can send your original and replacement ECMs to a service that will clone the key data from the old module to the new one.

The vehicle will not start or run until this programming is successfully completed.

Cost Breakdown

The cost to replace the ECM can vary significantly based on the part source and labor rates.
