2019-2024 Mazda 3 & CX-30 ECM: Programming, Problems, and Replacement Costs

Symptoms of a Failing Engine Control Module

A failing ECM can cause a wide range of confusing and often intermittent issues. Because it controls so many different systems, the symptoms can sometimes be mistaken for other problems. If you experience several of these, the ECM could be the culprit.

• Check Engine Light: This is the most common symptom. The light may be on constantly or come and go. Specific diagnostic trouble codes (DTCs) pointing to an internal module failure are a strong indicator.
• Engine Performance Problems: You may notice the engine stumbling, misfiring, hesitating on acceleration, or stalling unexpectedly. This happens because the ECM is no longer sending the correct signals for fuel and spark.
• Car Won't Start: A completely failed ECM can prevent the engine from starting at all. The starter might crank, but without the ECM managing the ignition and fuel systems, the engine won't fire up.
• Poor Fuel Economy: If you notice a sudden and significant drop in your gas mileage, it could be because the ECM is commanding an incorrect air-fuel mixture, often running too rich (too much fuel).
• Transmission Shifting Issues: The ECM communicates with the Transmission Control Module (TCM). A faulty ECM can send bad data, leading to rough or erratic shifting.

Common Diagnostic Trouble Codes (DTCs)

While many codes can be associated with a failing ECM, some are more directly related to the module itself. If you see any of the following codes, internal ECM failure is a strong possibility:

• P0601: Internal Control Module Memory Check Sum Error
• P0602: Control Module Programming Error
• P0603: Internal Control Module Keep Alive Memory (KAM) Error
• P0604: Internal Control Module Random Access Memory (RAM) Error
• P0605: Internal Control Module Read Only Memory (ROM) Error
• P0606: ECM/PCM Processor Fault
• P1358 / P1359: ECM Loss of Ignition Diagnostic Monitor / Output Signal

Programming and Immobilizer Requirements

Modern Mazda vehicles, including the 2019-2024 Mazda 3 and 2020-2024 Mazda CX-30, have a sophisticated anti-theft system called an immobilizer. The ECM, Body Control Module (BCM), and your key fob are all electronically linked. When you replace the ECM, this link is broken.

Programming, also called flashing, does two things:

1. Loads Vehicle-Specific Software: It installs the correct software and calibration files for your car's engine, transmission, and emissions equipment.
2. Performs Immobilizer Relearn: It teaches the new ECM to recognize your existing keys and other control modules, re-establishing the security handshake that allows the car to start.

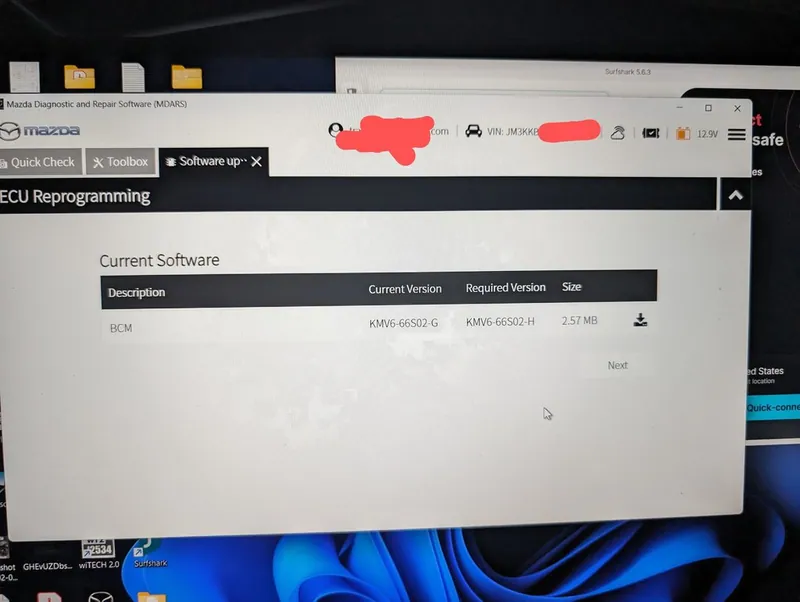

This programming requires specialized equipment, specifically the Mazda Diagnostic And Repair Software (MDARS). While some advanced independent shops may have this capability, it is most reliably performed by a Mazda dealership. Some online retailers offer a service where they pre-program a used ECM with your vehicle's VIN before shipping it, which can simplify the process. However, an immobilizer relearn may still be required on-site.

Known Issues, TSBs, and Recalls

As of early 2026, there are no widespread recalls specifically for ECM failure on the 2019-2024 Mazda 3 or 2020-2024 Mazda CX-30. However, Mazda has issued several Technical Service Bulletins (TSBs) that involve reprogramming the ECM (or other modules) to fix software-related issues.

• TSB 01-009/20: For some 2019-2020 Mazda 3 and 2020 CX-30 models, this TSB addresses a vibration felt at 1500-1650 RPM while cylinder deactivation is active. The fix involves replacing radiator mount brackets and reprogramming the PCM.
• TSB 01-018/19: Affects early 2019 Mazda 3 models where the engine may not start and the ignition won't turn off after a battery has been drained and recharged. This TSB involves reprogramming the Body Control Module (BCM).
• General Software Updates: Mazda frequently releases software updates for various modules, including the ECM, to improve performance, and fix minor bugs. If your vehicle is experiencing strange electronic issues, it's worth checking with a dealer to see if any software updates are available.

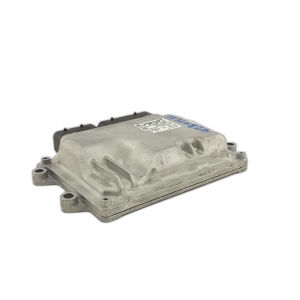

Buying a Used Engine Control Module

Purchasing a used OEM ECM is a cost-effective way to get your Mazda back on the road. Because these modules are not high-wear items, a used unit from a reputable recycler can be just as reliable as a new one. Here's what to look for:

• Match the Part Number: This is the most important step. Verify the OEM part number on your original ECM and match it exactly. Known part numbers for these vehicles include PAJ1-18-881 and PAJ9-18-881. There may be other compatible numbers, so always confirm with the seller.
• Verify Engine Compatibility: These ECMs are for the naturally aspirated (non-turbo) 2.5L Skyactiv-G engine ONLY. They will not work on vehicles equipped with the 2.5L Turbo engine.
• Inspect for Physical Damage: Check the casing for any cracks, corrosion, or signs of water intrusion. Pay close attention to the connector pins—they should be straight and clean.
• Source from a Reputable Supplier: Buy from a seller that offers a warranty and has a good return policy. This protects you in case the part is defective.
• Factor in Programming Costs: Remember that the price of the used module is not the final cost. You must account for the labor and cost of having it professionally programmed to your vehicle.

Replacement Cost Comparison

The cost to replace the ECM can vary significantly depending on the route you take. Programming is a required additional cost for all replacement options.
