2006 Mazda 3 2.3L Engine Control Module: A Guide to Part L32E-18-881-B Failures & Programming
This guide covers the critical compatibility requirements, failure symptoms, and mandatory programming steps for the 2006 Mazda 3 2.3L automatic transmission ECM.
- The part number L32E-18-881-B must be matched exactly for compatibility.
- This ECM is only for 2006 Mazda 3 models with the 2.3L engine, automatic transmission, and Federal/Canadian emissions.
- Replacement requires programming. The vehicle will not start until a dealer or locksmith performs an immobilizer key relearn procedure.
- You must have at least two working keys for the programming procedure to be successful.
Critical Compatibility Warning for 2006 Mazda 3
Warning: This Engine Control Module (ECM) is only for the 2006 Mazda 3 equipped with a 2.3L engine, an automatic transmission, and Federal or Canadian emissions systems. It will NOT work on vehicles with California emissions (PZEV), manual transmissions, or the 2.0L engine. Compatibility is determined by the OEM part number. You must match the part number L32E-18-881-B (or its variants L32E18881 / L32E18881B) exactly. Installing an ECM with a different part number will result in a no-start condition or severe drivability issues.
Symptoms of a Failing ECM
A failing ECM can be difficult to diagnose because its symptoms often mimic other, more common failures like bad sensors or ignition coils. Diagnosis often comes down to a process of elimination after verifying that other components are working correctly. Here are the most common signs that the ECM in your 🎬 Watch: A detailed breakdown of common bad ECM symptoms. 2006 Mazda 3 may be at fault:
- Check Engine Light: An illuminated Check Engine Light is a common symptom. The ECM may store codes related to internal failure (such as P0600-P0605) or codes for sensors that it can no longer properly read.
- Engine No-Start or Intermittent Start: The vehicle may crank but fail to start, or it may start unreliably. This happens when the ECM fails to command the fuel injectors or ignition coils to fire.
- Engine Stalling or Misfiring: The engine may stall unexpectedly while driving or at idle. A faulty ECM can cause a rough idle, stuttering, or engine misfires by providing incorrect fuel or spark timing.
- Poor Performance and Fuel Economy: You may notice a sudden loss of power, sluggish acceleration, or a significant drop in gas mileage. This can be caused by the ECM failing to maintain the correct air-fuel ratio.
- Erratic Transmission Shifting: Since the ECM communicates with the Transmission Control Module (TCM), a faulty engine computer can cause harsh or delayed shifting in the automatic transmission.
Known Issues, TSBs, and Recalls
As of this writing, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Mazda for a high failure rate of the L32E-18-881-B ECM in the 2006 Mazda 3. Most failures are due to common causes for all electronic modules, such as:
- Voltage Spikes: Improper jump-starting or a failing alternator can send a voltage spike that damages the ECM's internal circuits.
- Moisture Intrusion: While the ECM is designed to be weather-resistant, aging seals can allow moisture to enter, causing corrosion and short circuits on the circuit board.
- Vibration and Heat: Years of exposure to engine heat and road vibrations can cause microscopic cracks in solder joints and other internal components.
- External Component Failure: A shorted-out sensor or ignition coil can overload and damage the driver circuit within the ECM.
Buying a Used Engine Control Module (ECM)
Given the high cost of a new OEM module, a used ECM is a cost-effective and reliable alternative. Because this is a complex electronic part, there are several critical factors to consider when purchasing a used unit.
1. Verify the Part Number
This is the most important step. The part number printed on the sticker of your original ECM must be L32E-18-881-B. Do not purchase a module from a vehicle with a different engine, transmission, or emissions type, even if it looks identical. There are many different ECMs for the 2006 Mazda 3, and they are not interchangeable.
2. Inspect for Physical Damage
When you receive the used ECM, inspect the case for any signs of being opened, major dents, or corrosion. Check the connector pins to ensure none are bent, broken, or corroded. Bent pins can often be carefully straightened, but broken pins mean the unit is unusable.
3. Plan for Programming
A used ECM is not a 'plug-and-play' part. It must be programmed to your vehicle. This involves two separate procedures: VIN programming and immobilizer key relearning. You must factor in the cost and logistics of programming when buying a used module.
Programming and Installation Requirements
Warning: Installation of this ECM requires special procedures. Failure to follow them will result in a no-start condition.
The 2006 Mazda 3 is equipped with a Passive Anti-Theft System (PATS) that links the ignition keys to the ECM. When the ECM is replaced, this link is broken, and the car will not start until the keys are 'relearned' to the new module.

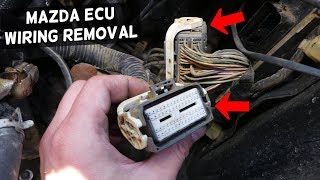

- Installation: Physically disconnect the vehicle's battery. The ECM is typically located in the engine bay, near the battery. Carefully disconnect the wiring harness 🎬 See how to safely disconnect these specific Mazda wiring harnesses. connectors and unbolt the module. Install the replacement ECM and reconnect the wiring harnesses and battery.
- VIN Programming (if required): Some remanufacturers will pre-program the used ECM with your vehicle's VIN before shipping it to you. If not, a Mazda dealer or a mechanic with advanced diagnostic tools (like the Mazda IDS software) will need to perform this step.
- Immobilizer Key Relearn: This is a mandatory step. You will need at least two original or new keys. A Mazda dealership or a well-equipped automotive locksmith can perform the key relearn procedure. This pairs your existing keys to the replacement ECM, allowing the engine to start. 🎬 Watch: How the PATS programming procedure works after replacement. This procedure typically cannot be done by a DIY mechanic without specialized tools.
Pro Tip: Before condemning your ECM, ensure your battery is fully charged and all ground connections are clean and tight. Low voltage can cause strange electrical issues that mimic ECM failure.
Cost Breakdown
The cost to replace the ECM can vary significantly based on the source of the part and labor rates. Programming is an additional cost that must be factored in.
| Item | Estimated Cost | Notes |
|---|---|---|
| New OEM | $600 - $900 | Purchased from a Mazda dealership. Carries a manufacturer warranty. |
| Remanufactured | $200 - $400 | Sold by specialty electronics rebuilders. Often comes pre-programmed with your VIN. |
| Used OEM | $50 - $150 | Pulled from a salvaged vehicle. Must match the part number exactly. |
| Shop Labor (Installation & Programming) | $150 - $300 | Includes physical replacement and the necessary VIN/key programming. A locksmith may charge $100-$200 just for the key relearn. |
Frequently Asked Questions (FAQ)
Can I install this ECM myself and drive to the dealer for programming?
No. Once you install the replacement ECM, the car's immobilizer will activate, and the engine will not start. The vehicle will need to be towed to a dealer or locksmith for programming, or you will need a mobile locksmith to come to you.
Do I need to match the part number L32E-18-881-B exactly?
Yes. This is absolutely critical. The 2006 Mazda 3 has several different ECMs depending on the engine, transmission, and emissions package. Using the wrong one will not work.
Will a used ECM from a car with higher mileage cause problems?
No. The mileage is stored in the instrument cluster, not the ECM. The ECM's function is not affected by the mileage of the donor vehicle. The most important factors are the correct part number and that the unit is in good working condition.
Can a locksmith program this ECM instead of the dealer?
Yes, many modern automotive locksmiths have the tools and software required to perform the immobilizer key relearn procedure for Mazda vehicles. It is often more cost-effective than a dealership. Always confirm with the locksmith that they can service a 2006 Mazda 3 before committing.
Helpful Videos
Technical Specifications
OEM Part Numbers: L32E-18-881-B L32E18881B L32E18881
Fits 2006 Mazda 3 with 2.3L engine, Automatic Transmission, and Federal/Canadian Emissions.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
