2005 Nissan Armada ECM: The IPDM Relay Trap and Mandatory Programming
Before you replace the Engine Control Module (ECM) on your 2005 Armada, learn about the common relay issue that mimics ECM failure and the required anti-theft programming.
- A faulty ECM relay in the IPDM is under recall and causes symptoms identical to ECM failure; check this first.
- ECM replacement is NOT plug-and-play. The vehicle will not start until the new ECM is programmed by a dealer or locksmith.
- This ECM only fits 2005 Armada models with Rear-Wheel Drive (RWD) and a 3.36 axle ratio. The wrong part will not work.
- A no-start condition after swapping the ECM is normal and expected until the Nissan Anti-Theft System (NATS) is reprogrammed.
Urgent: Check This Before Replacing Your ECM
Warning: Many symptoms of a failed Engine Control Module (ECM) on the 2005 Nissan Armada are identical to the symptoms of a much simpler, less expensive problem: a faulty ECM relay. There was a major safety recall for this exact issue. Before condemning your ECM, you must investigate this recall.
NHTSA Recall 10V517000: The ECM Relay in the IPDM
Nissan issued a recall because the ECM relay, located inside the Intelligent Power Distribution Module (IPDM), could fail. The IPDM is a fuse and relay box located in the engine bay. A defect in the relay could cause silicon oxide to build up on the contacts, leading to a loss of power to the ECM. This can cause sudden engine stalling, a no-start condition, or rough running, all of which can easily be misdiagnosed as a total ECM failure.
A Nissan dealer will replace this relay free of charge under the recall campaign. Even if your vehicle is outside of warranty, it's critical to check if this recall was performed. You can check your VIN on the NHTSA website or contact a Nissan dealer. Replacing this small, inexpensive relay could solve your problem without needing a new ECM and costly programming.
Symptoms of a Failing 2005 Armada ECM
If you have ruled out the IPDM relay, your ECM itself may be faulty. Symptoms often start intermittently and become more frequent over time. Look for these common signs:

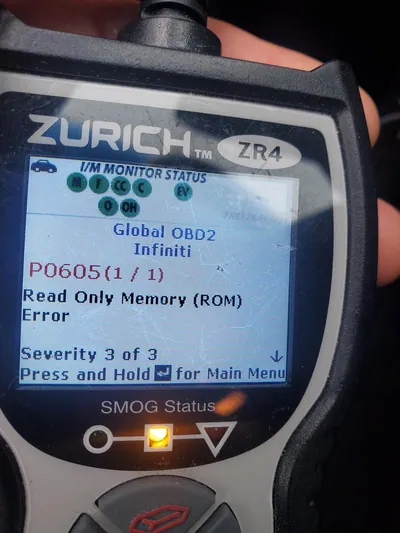

- Check Engine Light: The check engine light is on, and you may find ECM-specific fault codes like P0605 (Internal Control Module ROM Error).
- Engine Stalling or Misfiring: The engine may stall unexpectedly, especially at low speeds, or run rough with noticeable misfires.
- No-Start Condition: The engine may crank but refuse to start. This can happen if the ECM is not firing the fuel injectors or spark plugs.
- Poor Engine Performance: You may experience a significant loss of power, poor acceleration, and hesitation.
- Reduced Fuel Economy: A sudden, unexplained drop in gas mileage can be a sign that the ECM is no longer managing the air-fuel ratio correctly.
- Automatic Transmission Problems: The ECM controls shifting in the automatic transmission. A bad ECM can cause harsh shifting, delayed engagement, or incorrect gear selection.
Buying a Used 2005 Nissan Armada ECM: What You MUST Know
Buying a used OEM ECM is a cost-effective option, but you must be extremely careful to get the correct part and understand the necessary follow-up steps. A wrong part will not work.
1. Compatibility is Critical: RWD and 3.36 Axle Ratio ONLY
Warning: The ECMs covered by the part numbers below are specifically for 2005 Nissan Armada models with Rear-Wheel Drive (RWD) and a 3.36 final drive axle ratio. An ECM from a 4WD model or a vehicle with a different axle ratio will have incorrect programming for the transmission and vehicle speed sensors, and it will not function correctly in your vehicle. Always verify your vehicle's specifications before ordering.
2. Verifying Part Numbers
Always match the part number on your original ECM to the number on the used unit. The ECM is located in the engine compartment on the passenger side, sometimes under a plastic cover. Look for 🎬 See this video to find the exact ECM location. one of the following verified OEM part numbers:
- 23710ZC005
- MEC83-580 B1
- MEC83-581 A1
Other compatible part numbers may include 23710-ZC000, 23710-ZC020, 23710-ZC060, and 23710-ZC070.
3. Physical Inspection
When you receive a used ECM, inspect it carefully before installation. Look for:
- Corrosion: Check the case and connector pins for any signs of water damage or rust.
- Bent Pins: Ensure all pins in the electrical connectors are straight and clean.
- Case Damage: Look for signs that the case has been pried open, which could indicate a failed repair attempt.
ECM Programming and Immobilizer Re-learning
This is the most important part of the replacement process. You cannot simply swap a used ECM and start the car.
Pro Tip: A 2005 Nissan Armada ECM replacement ALWAYS requires programming. The vehicle will not start until this is done.

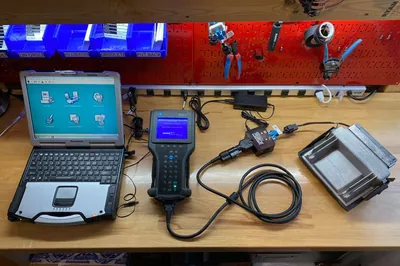

The ECM is a key component of the Nissan Anti-Theft System (NATS). The system ensures that the ECM, ignition keys (which contain a transponder chip), and other security modules all recognize each other. When you install a different ECM, this security link is broken, and the immobilizer will prevent the engine from starting as a theft-prevention measure.
Who Can Program the ECM?
- Nissan Dealerships: This is the most reliable option. They have the proprietary Nissan CONSULT diagnostic tool required to perform the programming and re-learn the keys to the new ECM. 🎬 Watch a demonstration of how Nissan ECUs are reprogrammed.
- Automotive Locksmiths: Many professional locksmiths have advanced tools that can communicate with the NATS system to program the ECM and keys. This is often a more convenient and sometimes less expensive option than a dealer.
- Specialized Independent Shops: Some independent repair shops that specialize in Nissans or electronics may have the necessary equipment.
DIY programming is not feasible for the average home mechanic due to the need for expensive, specialized tools and software.
Replacement Cost Breakdown
The cost can vary significantly based on the part source and labor rates.
| Item | Estimated Cost | Notes |
|---|---|---|
| New OEM ECM | $750 - $1,100 | Part cost only. Must be purchased from a dealer. |
| Remanufactured ECM | $270 - $480 | Often comes pre-programmed to your VIN, but may require a core return. |
| Used OEM ECM | $50 - $150 | Most affordable part cost, but requires programming. |
| Shop Labor (Programming) | $200 - $600 | This is for programming the module and re-learning the keys. The physical swap is quick, but the programming is the main labor cost. |
Frequently Asked Questions (FAQ)
Will my 2005 Armada start after I install a used ECM?
No. Due to the Nissan Anti-Theft System (NATS), the engine will crank but will not start until the replacement ECM is professionally programmed to your vehicle and your existing keys are re-registered to the new ECM.
Can I program a Nissan ECM myself?
No, not without professional-level diagnostic tools like the Nissan CONSULT system or equivalent high-end scanners. This is not a DIY job. You will need to have the vehicle towed to a dealer or arrange for a mobile automotive locksmith to perform the programming.
What is the IPDM and how is it related to the ECM?
The IPDM (Intelligent Power Distribution Module) is the main fuse and relay box in the engine bay. It contains the ECM's main power relay. A faulty ECM relay inside the IPDM was subject to a recall and can cause stalling or a no-start condition, which is often mistaken for a bad ECM. Always check this relay first.
Do I need to match the VIN or mileage when buying a used ECM?
No. The VIN from the donor vehicle stored in the used ECM will be overwritten with your vehicle's VIN during the programming process. Mileage is not stored in the ECM. The critical factor is matching the part number and ensuring it's for the correct drivetrain (RWD) and axle ratio (3.36).
Helpful Videos
Technical Specifications
OEM Part Numbers: 23710ZC005 MEC83-580 B1 MEC83-581 A1 23710-ZC000 23710-ZC020 23710-ZC060 23710-ZC070
Fits 2005 Nissan Armada with 5.6L V8, Rear-Wheel Drive (RWD), and 3.36 Axle Ratio.
