2018-2019 Nissan Kicks ECM: Why Programming is Non-Negotiable
This guide covers the critical programming requirements, common failure symptoms, and costs associated with replacing the Engine Control Module in your 2018-2019 Nissan Kicks.
- The ECM is sold blank and MUST be programmed to your vehicle's VIN to function; the car will not start without this step.
- Programming can be done by a Nissan dealer, some specialized independent shops, or by using a mail-in service that pre-programs the unit.
- Always match the OEM part number exactly. For the 2018-2019 Kicks, the primary part number is 23703-5RL0A.
- Symptoms of a bad ECM (like stalling or hesitation) can overlap with more common Nissan Kicks issues like CVT problems, so proper diagnosis is key.
Symptoms of a Failing ECM in a 2018-2019 Nissan Kicks
A failing ECM can cause a wide range of confusing and intermittent issues. Because the ECM controls so many different systems, symptoms can sometimes be mistaken for other problems. Here are the most common signs that your Kicks' engine computer may be in trouble:
- Check Engine Light: This is often the first and most obvious sign. While many issues can trigger the light, a persistent light after other potential causes have been ruled out can point to the ECM.
- Engine Performance Problems: You may experience issues like engine misfires, rough idling, stuttering or hesitation on acceleration, or sudden stalling for no reason. These occur because the ECM is failing to correctly manage the air-fuel mixture or ignition timing.
- Car Won't Start: A bad ECM can prevent the engine from starting at all. It may crank but fail to fire up because the ECM isn't sending the correct signals to the fuel injectors or ignition coils. In some cases, it can cause a no-crank, no-start condition if the anti-theft system is involved.
- Poor Fuel Economy: If you notice a sudden and significant drop in your vehicle's gas mileage, it could be due to the ECM providing an incorrect air-fuel mixture, often running too rich.
- Erratic Automatic Transmission Shifting: The ECM communicates with the Transmission Control Module (TCM). A faulty ECM can send incorrect data, leading to rough or improper gear shifts.
Common Diagnostic Trouble Codes (DTCs)
When a scanner is connected to the vehicle's OBD-II port, a failing ECM will often store specific trouble codes. While any number of codes can appear, look for codes in these ranges:
- P0600-P06FF: This range of codes relates directly to the internal computer and output circuits, indicating a potential processor or memory failure within the ECM itself.
- U-Series Codes (e.g., U0100): These codes indicate a loss of communication between the ECM and other control modules on the vehicle's network, such as the ABS or Body Control Module.
Pro Tip: Before condemning the ECM, always check the vehicle's battery, ground connections, and the ECM's power relay. A poor connection or a faulty relay can mimic the symptoms of a complete ECM failure.
Known Issues, TSBs, and Recalls
As of early 2026, there are no widespread recalls specifically for Engine Control Module failure on the 2018-2019 Nissan Kicks. However, it's important to be aware of related issues:
- CVT and AEB Issues: The Kicks is known to have some issues with its Continuously Variable Transmission (CVT) and Automatic Emergency Braking (AEB) system. Symptoms like hesitation or stalling could be related to the CVT and might be misdiagnosed as an ECM problem. Several TSBs exist to update the logic for the CVT.
- Emissions Service Campaign (California): Nissan issued a voluntary emissions service campaign (ID P9328, P9343, etc.) for some 2019 Kicks models registered in California, which involves reprogramming the ECM.
- TSB NTB22-026: This Technical Service Bulletin addresses an inaccurate fuel gauge reading where specific DTCs may be stored in the ECM.
CRITICAL: ECM Programming and Installation
This is the most important takeaway for anyone replacing the ECM on a 2018-2019 Nissan Kicks. The replacement module, whether it is a new or used OEM part, will not work until it is programmed to your vehicle's specific Vehicle Identification Number (VIN).
Warning: You cannot simply swap the ECM from another Kicks and expect it to work. The unit is sold "blank" and must be programmed. The vehicle's anti-theft and immobilizer system is linked to the ECM, and the car will not start until the programming is complete.
Who Can Program a Nissan Kicks ECM?
- Nissan Dealership: This is the most straightforward option. A Nissan dealer has the proprietary "CONSULT" diagnostic tool required to perform the programming.
- Qualified Independent Shops: Some independent auto repair shops that specialize in Nissan vehicles may have the necessary software, such as Nissan ECU Reprogramming Software (NERS), and a compatible J2534 pass-thru device to program the module.
- Mail-In Programming Services: Several companies offer a service where you can purchase a used or remanufactured ECM and provide them with your car's VIN. They will program the module before shipping it to you, making it a "plug-and-play" installation.
Buying a Used Engine Control Module (ECM)
Purchasing a used OEM ECM is a cost-effective way to get your Kicks back on the road, provided you follow these essential steps. Given the mandatory programming, a used unit is just as viable as a new one, but at a fraction of the cost.
- Match the Part Number EXACTLY: The most critical step is to match the OEM part number on your original ECM. The primary part number for the 2018-2019 Kicks is 23703-5RL0A. Do not install a module with a different part number, even if it looks identical.
- Inspect for Damage: When you receive the used ECM, carefully inspect the case for any signs of physical damage, like dents or cracks. Pay close attention to the connector pins—they should be straight, clean, and free of any corrosion or water damage.
- Source from a Reputable Seller: Buy from a seller that offers a warranty and a clear return policy. This protects you in case you receive a defective unit.
- Plan for Programming: Before you even purchase the part, have a plan for who will program it. Call your local Nissan dealer or a trusted independent shop to confirm they are willing and able to program a customer-supplied part. Some dealers may refuse. If you choose a mail-in service, confirm the process and turnaround time.
Cost Comparison for a 2018-2019 Kicks ECM
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New OEM | $900 - $1,350 | Part only, from a Nissan dealership. Still requires programming. |
| Used OEM | $35 - $150 | Significant savings. Part number must match exactly. Requires programming. |
| Remanufactured (Pre-Programmed) | $200 - $500 | Often sold by specialty electronics suppliers. Unit arrives ready for plug-and-play installation. |
| Shop Labor (Installation) | $100 - $200 | Physical replacement is relatively quick, estimated at 1-1.5 hours. |
| Shop Labor (Programming) | $100 - $250 | Typically a separate 1-hour charge at a dealership or qualified shop. |
Frequently Asked Questions (FAQ)
Do I have to take my car to the dealer to replace the ECM?
Not necessarily, but the replacement ECM *must* be programmed. A Nissan dealership is the most reliable option, but some well-equipped independent shops can do it. Alternatively, you can buy a pre-programmed ECM from a mail-in service and install it yourself or have a local mechanic do it.
Where is the ECM located on the 2018-2019 Nissan Kicks?
While the exact location can vary, the ECM on many modern Nissans is located in the engine compartment, often near the battery and air filter housing for easy access and cooling. In some other vehicles, it can be found inside the cabin, behind the glove box or a kick panel. Always confirm the location on your specific vehicle before beginning work.
Can I drive my Kicks with a bad ECM?
It is not recommended. Depending on the failure mode, the vehicle may not start at all. If it does run, you risk stalling in traffic, poor performance that could be unsafe, and potentially causing further damage to other components like the catalytic converter.
Will a used ECM affect my car's mileage reading?
No. The vehicle's mileage is stored in the instrument cluster and/or the Body Control Module (BCM), not the Engine Control Module. Swapping the ECM will not change the odometer reading.

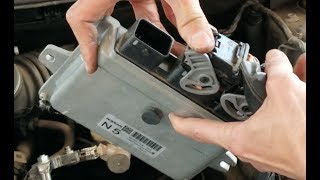

Helpful Videos
Technical Specifications
OEM Part Numbers: 23703-5RL0A
N/A
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
