2011 Nissan Quest ECM: Programming, Immobilizer, and Emissions Traps

Symptoms of a Failing 2011 Quest ECM

A failing ECM can cause a wide range of confusing and intermittent issues. Because the ECM controls so many different systems, symptoms can vary, but here are the most common signs to watch for.

• Check Engine Light: This is often the first and most obvious sign. The light may be on constantly or come and go. Specific diagnostic trouble codes (DTCs) related to internal ECM failure include P0601 (Internal Control Module Memory Check Sum Error) and P0605 (Internal Control Module Read Only Memory (ROM) Error).
• Engine Performance Problems: You may experience a noticeable loss of power, hesitation during acceleration, random misfires, or stalling. The engine might run rough or idle erratically.
• No-Start Condition: One of the most severe symptoms is the engine cranking but refusing to start. This can happen 🎬 Watch: Diagnosing a crank no start issue on a Quest if the ECM is not sending the correct signals to the fuel injectors or ignition coils, or if it has lost its programming with the vehicle's anti-theft system.
• Poor Fuel Economy: If the ECM is not managing the air-fuel mixture correctly, you may see a sudden and significant drop in your vehicle's gas mileage.
• Transmission Shifting Issues: The ECM communicates with the transmission control module. A faulty ECM can sometimes lead to rough or improper gear shifting in the CVT transmission.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Safety Recall R1207: Engine Stall Reprogramming

Nissan issued a voluntary safety recall for 2011-2012 Quest models due to an issue where the engine could stall. This typically happened at low speeds or on a decline when the fuel tank was at or below a quarter full. The cause was identified as software logic in the ECM that did not adequately supply fuel under these specific conditions. The official remedy was for Nissan dealers to reprogram the ECM with updated software to improve the fuel pump control module's operation.

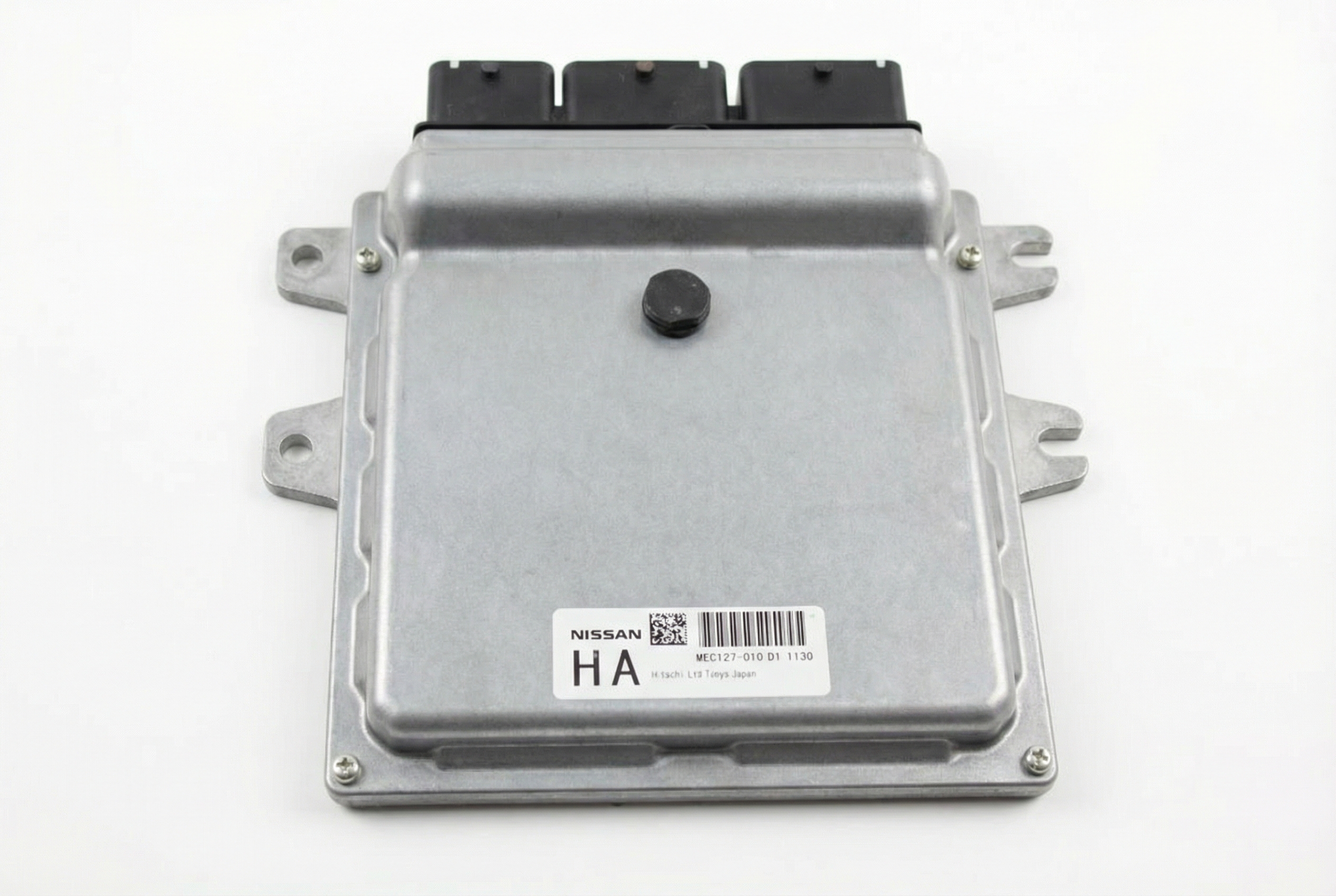

Buying a Used Engine Control Module for Your 2011 Quest

Purchasing a used OEM ECM is a cost-effective way to get your Quest back on the road. However, there are critical factors to consider to ensure you get the right part that will work with your vehicle.

1. Critical Compatibility Check: Federal vs. California Emissions

The 2011 Nissan Quest was sold with two different emissions systems: Federal (also known as 49-state) and California (50-state legal). The ECMs for these two systems are NOT interchangeable. The initial data for this part indicates it is for Federal emissions vehicles only. You must verify which system your vehicle has before purchasing a replacement.

To do this, check the Vehicle Emission Control Information (VECI) label located under the hood. This label will explicitly state whether the vehicle conforms to U.S. EPA (Federal) regulations or California regulations.

2. Match the Part Number

Always match the OEM part number from your original ECM to the part number on the used unit you are buying. The most reliable way to find your original part number is to physically inspect the module itself. Known part numbers for the 2011 Quest include 23710-1JA3A, 23710-1JA3B, and 237101JA2A. Later part numbers often supersede earlier ones; for example, 23710-1JA3B replaces 23710-1JA3A.

3. Physical Inspection

When you receive the used ECM, inspect it carefully. Look for any signs of corrosion on the casing or pins, which could indicate water damage. Ensure none of the connector pins are bent or broken. A reputable seller will provide clear photos of the actual part you are buying.

Programming and Immobilizer Syncing: What to Expect

Replacing the ECM on a 2011 Nissan Quest is not a simple plug-and-play procedure. The module must be programmed to your specific vehicle to function.

Nissan Anti-Theft System (NATS)

The ECM is a key component of the Nissan Anti-Theft System (NATS). Your ignition keys contain a transponder chip that communicates with the immobilizer system and the ECM. When you replace the ECM, the new module does not recognize your existing keys, and the vehicle will not start. A "C/U Initialization" procedure must be performed to register your existing keys to the replacement ECM.

Who Can Program the ECM?

• Nissan Dealership: This is the most straightforward and reliable option. Dealers have the proprietary CONSULT-II or CONSULT-III plus diagnostic tool required to perform the initialization and update the ECM with the latest software.
• Qualified Independent Shops & Automotive Locksmiths: Some high-end independent repair shops and specialized automotive locksmiths have advanced aftermarket tools (like Autel) or OEM software subscriptions that can perform Nissan ECM programming and key registration. It is essential to call ahead and confirm they have the specific capability for a 2011 Nissan Quest.
• Pre-Programmed Modules: Several online retailers sell used or remanufactured ECMs that are pre-programmed to your vehicle's VIN before they are shipped. You provide your VIN at the time of purchase, and the module arrives ready for installation, often described as "plug and play." This can be an excellent option for DIY replacement, as it may eliminate the need for a separate programming service.

Cost Comparison for a 2011 Quest ECM

Frequently Asked Questions (FAQ)
