2009 Nissan Sentra ECM: Failures, Part Numbers, and Mandatory Programming

Symptoms of a Failing 2009 Sentra ECM

A failing Engine Control Module can cause a wide range of confusing and intermittent issues. Because the ECM controls so many different systems, symptoms can vary, but they often point to a major system failure. Be aware of the following signs:

• Check Engine Light: This is the most common symptom. The light may be on with codes pointing to internal ECM failure, such as P0603 or P0605. 🎬 See this breakdown of the P0605 internal ROM error It might also throw codes for sensors that are actually working correctly, leading to a confusing diagnosis.
• Engine Stalling or Misfiring: The engine may stall unexpectedly while driving or at an idle. You might also experience engine hesitation, stuttering, or a noticeable misfire as the ECM fails to properly manage spark and fuel.
• No-Start Condition: Your Sentra may crank but refuse to start. This happens when the ECM isn't commanding the fuel injectors or ignition coils to fire. In some cases, it can also cause a no-crank condition if the anti-theft system is involved.

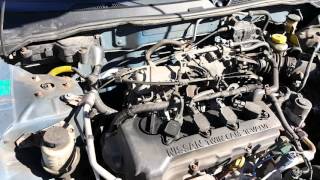

🎬 Watch: Diagnosing a Sentra no-start caused by ECU failure
• Poor Performance and Fuel Economy: A sudden drop in gas mileage or a noticeable loss of power and acceleration can be a sign that the ECM is no longer calculating the air-fuel mixture correctly.
• Communication Issues: A key sign of a bad ECM is when a mechanic's diagnostic scan tool cannot communicate with the module. This indicates the computer itself is offline.

Critical Compatibility & Part Numbers

This is the most important step when sourcing a replacement. The ECM for the 2009 Nissan Sentra is highly specific. You must buy a module that matches your vehicle's exact configuration.

Always match the OEM part number from your original module. Remove the original ECM to get a clear photo of the sticker. The ECM is located in the engine bay on the passenger's side, near the firewall and strut tower, often inside a protective plastic case.

Other part numbers exist for different configurations, so verifying the number on your specific unit is essential.

Buying a Used Engine Control Module (ECM)

A used OEM ECM is often a reliable and cost-effective solution, provided you follow these critical steps. Given that a new OEM unit can be very expensive or discontinued, a quality used part is a practical choice.

• Match the Part Number Exactly: Do not deviate. A part number that is "close" will not work. Use the number printed on your original ECM's sticker as your guide.
• Inspect for Damage: When the used part arrives, check the case for any signs of being pried open and inspect the connectors for corrosion, bent pins, or water damage.
• Buy from a Reputable Seller: Purchase from sellers who offer a warranty and have good reviews. This provides a safety net if you receive a defective part.
• Understand Programming is Required: Do not trust sellers who claim a used Nissan ECM from this era is "plug and play" without them programming it to your VIN first. It will need to be programmed to your car's immobilizer system.

Programming and Immobilizer Requirements

A replacement ECM for a 2009 Nissan Sentra absolutely must be programmed to the vehicle. The ECM is a core component of the Nissan Anti-Theft System (NATS). If the programming is not done, the car will not start.

• What is Programming? A technician uses a specialized diagnostic tool to sync the replacement ECM with your vehicle's unique VIN, keys, and Body Control Module (BCM). This process registers the new "brain" with the car's security system.
• Who Can Program the ECM?
  • Nissan Dealerships: This is the most straightforward option. They have the proprietary CONSULT diagnostic tool and are familiar with the procedure.
  • Specialized Independent Shops: Many modern repair shops have invested in high-level diagnostic tools (like Autel or Snap-on) with the ability to perform module programming.
  • Automotive Locksmiths: Some locksmiths who specialize in automotive work have the tools and subscriptions required to program Nissan ECMs and keys.

Known Issues, Recalls, and TSBs

As of early 2026, there are no active recalls from the National Highway Traffic Safety Administration (NHTSA) for widespread failure of the ECM on the 2009 Nissan Sentra. Most failures are considered isolated incidents due to age or environmental factors. Several recalls were issued for this model year, but they pertain to issues like the brake master cylinder and accessory GPS units, not the ECM itself.

Replacement Cost Comparison

The cost to replace the ECM can vary significantly based on the part source and labor rates. Programming is a mandatory additional cost if not included with the part.

Frequently Asked Questions (FAQ)
