2016-2017 Ram 2500 & 3500 Cummins ECM: Failure, Recalls, and Programming Guide

Symptoms of a Failing ECM

A failing ECM can cause a wide range of confusing and intermittent issues. Because the ECM is the 'brain' of the engine, its failure can mimic other problems like bad sensors or wiring. However, certain patterns often point to the module itself. 🎬 See this breakdown of common ECM failure warning signs. Look for multiple, seemingly unrelated problems occurring at once.

• Engine Stalling or No-Start: The most critical symptom is the engine stalling without warning or refusing to start at all. You might experience a strong crank but the engine won't fire up. 🎬 Watch: Diagnostic steps for a Cummins crank-no-start condition. This can be due to the ECM not sending signals to the fuel injectors or fuel pump.
• Intermittent Power Loss and Rough Running: The truck may suddenly lose power, misfire, or run erratically. These symptoms can sometimes be related to heat; the problem may appear after the engine warms up and disappear when it cools down.

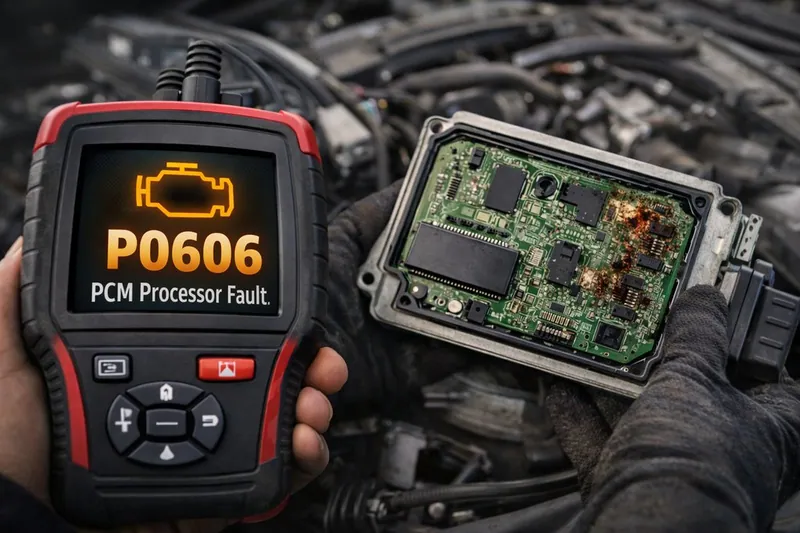

• Check Engine Light and Specific Codes: A constant check engine light is a common sign. While many issues can trigger the light, codes related to internal module failure are a strong indicator. Look for codes in the P0600-P060F range, such as P0601 (Internal Control Module Memory Check Sum Error), P0602 (Control Module Programming Error), and especially P0606 (ECM/PCM Processor Fault).
• Communication Problems: A diagnostic scan tool may be unable to communicate with the ECM, or you may see multiple communication error codes (U-codes). This suggests the ECM is offline and not talking to the rest of the vehicle's network.
• Poor Fuel Economy and Shifting Issues: A faulty ECM can send incorrect signals to the fuel system, causing a noticeable drop in fuel efficiency. It can also disrupt communication with the Transmission Control Module (TCM), leading to harsh or erratic shifting.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Owners of 2016-2017 Ram 2500 and 3500 trucks should be aware of several important factory communications regarding the ECM.

Recall: ECM May Short Circuit and Cause Stall

Chrysler (FCA US LLC) issued a recall for certain 2016 Ram 2500, 3500, and Cab Chassis trucks manufactured between July and August 2015. In affected vehicles, the Engine Control Module (ECM) could short circuit, causing the engine to stall without warning, increasing the risk of a crash. The remedy was for dealers to replace the ECM free of charge. Owners can check with a dealer or use their VIN on the NHTSA website to see if their truck was part of this recall.

Emissions Recall: Defeat Device Software Update

In a major 2024 settlement with the EPA, Cummins and Stellantis initiated a recall program for model year 2013-2019 Ram 2500 and 3500 diesel vehicles. The recall addresses illegal emissions software, or "defeat devices." All 2016-2018 vehicles are affected. The fix involves a mandatory software update (reflash) of the ECM performed by a dealer. This is a free update that ensures the vehicle meets emissions standards. It is important to have this recall performed to ensure legal compliance and proper engine function.

TSBs for Software Updates

Throughout the life of these vehicles, Ram has issued multiple Technical Service Bulletins (TSBs) that involve reprogramming the ECM/PCM with updated software. These updates can address issues like false check engine lights, minor performance complaints, and communication improvements between modules. If you are experiencing an issue, it's worth checking with a dealer to see if a software update is available before replacing expensive parts.

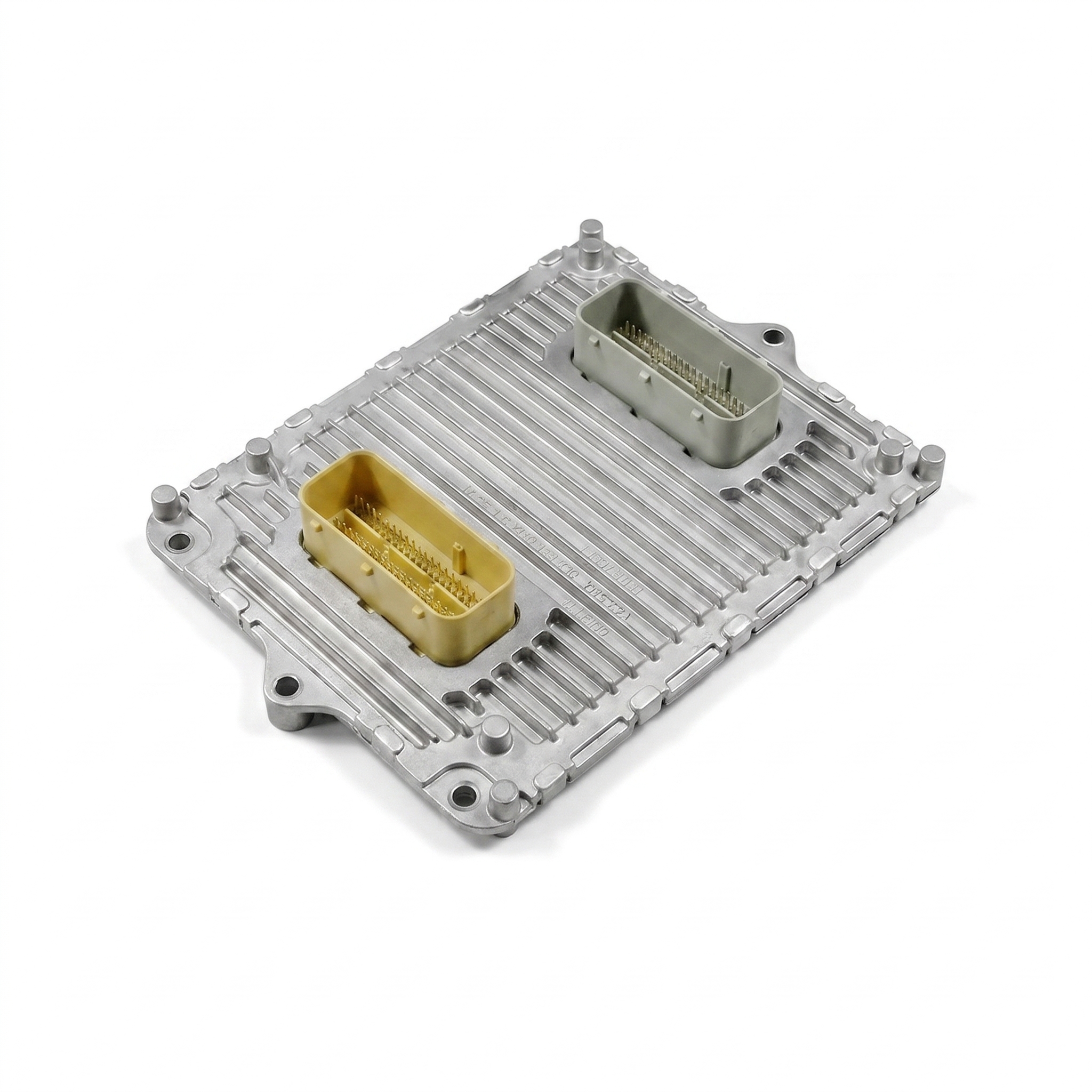

Buying a Used Engine Control Module (ECM)

Given the high cost of a new module, a used OEM ECM is a viable option for many owners, but you must understand the requirements. This is not a simple plug-and-play part.

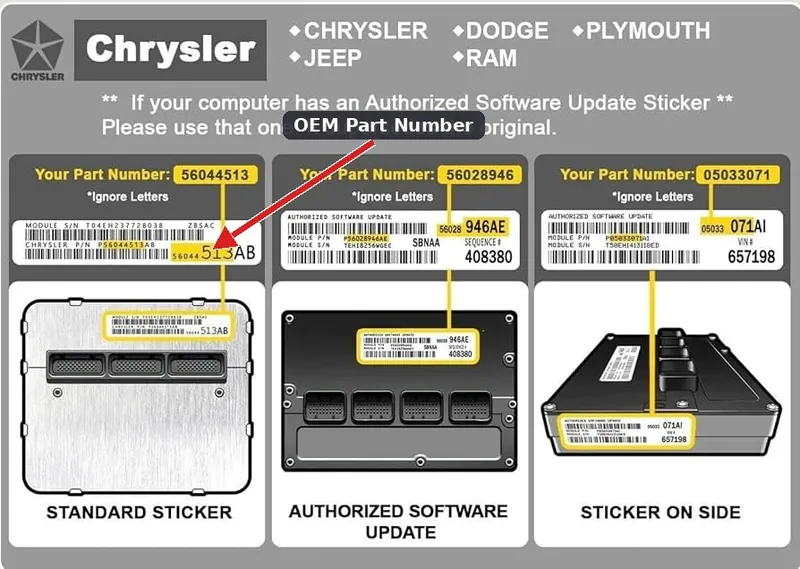

• Match Part Numbers Exactly: The most important step is to match the OEM part number from your original ECM to the used one you are buying. The primary Cummins part number is 4358811. The Mopar part numbers are often 68293842AA or 68293842AB. Do not rely on visual similarity; the numbers must match.
• Programming is Not Optional: A used ECM comes from a different truck and is programmed to that truck's VIN and security settings. When installed in your vehicle, it will not work. You have two main options:
  1. Install the used ECM and have the truck towed to a dealership or a qualified diesel shop to have it programmed to your VIN. This service typically costs several hundred dollars.
  2. Purchase from a seller that offers "Plug & Play" or pre-programming services. For these services, you provide your truck's VIN at the time of purchase, and the seller programs the used ECM before shipping it to you. This is often the best option for DIY mechanics as it allows you to install the module and start the truck without a tow or dealer visit.

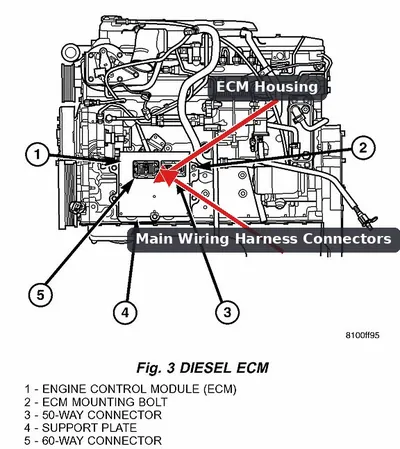

• Physical Inspection: When you receive the used module, inspect it for physical damage. Check for corrosion on the pins of the electrical connectors, cracks in the casing, or signs of water intrusion. The ECM is mounted on the engine block and subject to heat and vibration, but it should be clean and free of obvious damage.
• Why Used OEM is a Good Choice: For a complex electronic part like an ECM, a used original equipment (OEM) module is often more reliable than a new, unbranded aftermarket part. The OEM hardware has been tested for your specific vehicle, and as long as it is programmed correctly, it should function exactly like the original.

Cost Comparison

The cost of replacing an ECM can vary dramatically depending on the source of the part and labor.
