2018 Subaru Forester Engine Control Module (ECM): Programming, Problems, and Replacement
This guide covers the critical details for diagnosing and replacing the Engine Control Module (ECM) in a 2018 Subaru Forester, including the essential programming and immobilizer requirements.
- A replacement ECM (new or used) MUST be programmed to the vehicle's immobilizer system to function.
- Cloning your original ECM's data onto a used replacement is the most reliable and often cheapest method, making the part plug-and-play.
- Always match the OEM part number exactly when buying a used ECM. The main numbers are 22765AL390, 22765AL391, 22765AL392, and 22765AL393.
- Before replacing the ECM, rule out other issues like bad wiring, faulty grounds, or low battery voltage, which can cause similar symptoms.
Symptoms of a Failing 2018 Forester ECM
A failing Engine Control Module can cause a wide range of problems, from annoying to critical. Because the ECM controls so many systems, symptoms can sometimes be mistaken for other issues. Always perform a thorough diagnosis before condemning the ECM.
- Check Engine Light: This is the most common symptom. The light may be on with codes pointing to a specific sensor, but if the sensor and wiring are good, the ECM's internal driver for that circuit could be faulty.
- Engine Performance Issues: You might experience rough idling, engine stuttering or hesitation, misfires, a sudden loss of power, or a noticeable drop in fuel economy. A specific TSB (11-174-17R) for the 2018 Forester addresses a high or 'hanging' engine RPM that can be fixed with an ECM reprogram.
- No-Start or Hard Starting: The car may crank but refuse to start. This can happen if the ECM is not properly energizing the fuel pump or ignition system. This is also a key symptom if a replacement ECM is installed without being programmed to the car's immobilizer.
- Stalling: The engine may stall unexpectedly, either while driving or at an idle. Note that a recall for a faulty low-pressure fuel pump on some 2018 Foresters can also cause stalling.

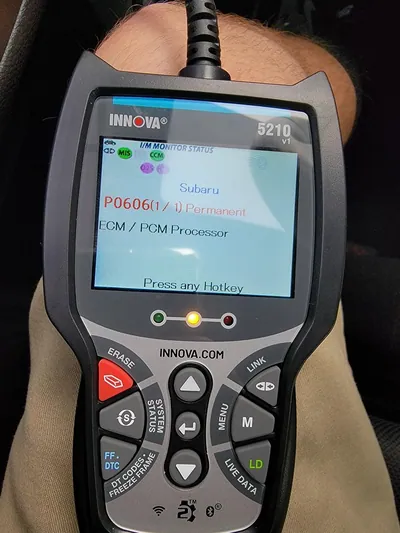

- Specific OBD-II Codes: While many codes can be related, codes in the P06xx range point directly to an internal computer failure. Look for codes like P0600 (Serial Communication Link Malfunction), P0601 (Internal Control Module Memory Check Sum Error), P0605 (Internal Control Module Read Only Memory Error), or P0606 (ECM/PCM Processor Fault).
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
For the 2018 Subaru Forester, several factory communications relate to the ECM and its software.
- Recall 20V285000 (NHTSA ID): Some 2018 Foresters were recalled for a low-pressure fuel pump that could fail, leading to engine stalling. While not an ECM failure, the symptom (stalling) is similar, so it's worth checking if your vehicle is affected.
- TSB 11-174-17R: This bulletin provides a software update to fix issues with a high/hanging engine RPM, a check engine light for code P05A0, and potential battery drain from repeated short-trip driving.
- TSB 09-113-23: For 2017-2022 Foresters, this TSB provides an ECM reprogram to address a P2404 code related to the EVAP system.
- Water Intrusion: The ECM is located in the passenger-side footwell, under the carpet and a metal cover. This location makes it vulnerable to water damage from a windshield leak, a clogged AC drain, or a flood condition. Water can get inside the module and corrode the circuit board, leading to a host of electrical problems and eventual failure. 🎬 Watch: See how water damage destroys a Subaru ECU circuit board.
Warning: Before replacing the ECM, always rule out other possibilities. A bad ground, faulty sensor, wiring issue, or even low battery voltage can mimic ECM failure or trigger communication codes like P0600.
🎬 Watch: How to diagnose and fix a P0600 communication code.Buying a Used Engine Control Module (ECM)
Buying a used OEM ECM is a cost-effective way to get your Forester back on the road, but there are critical steps you must follow. A used ECM cannot be simply swapped into the vehicle.
- Match the Part Number Exactly: The most important step is to match the OEM part number from your original ECM to the used one you are buying. The primary part numbers for the 2018 Forester 2.5L with an automatic transmission are 22765AL390, 22765AL391, 22765AL392, and 22765AL393. Using an ECM with a different part number will likely not work, even if it looks identical.
- Physical Inspection: When you receive the used ECM, inspect the case for any signs of damage. More importantly, check the connectors for any bent, corroded, or pushed-out pins. Any sign of water marks or corrosion is a major red flag.
- The Immobilizer and Programming: The ECM is a core part of the vehicle's anti-theft (immobilizer) system. A used ECM is programmed to the keys and security module of its original vehicle. When you install it in your car, it will not recognize your keys, and the car will not start. You have two main options to solve this:
- Cloning Service: This is the most popular and often easiest solution. You send your original ECM and the used replacement ECM to a specialist service. They will transfer the data (including the VIN and immobilizer key codes) from your old module to the replacement one. The returned module is then plug-and-play, requiring no further programming. This service typically costs between $100 and $250.
- Dealer/Shop Programming: You can install the used ECM and have the vehicle towed to a Subaru dealership or a qualified independent shop with advanced scan tools. They can perform an "Immobilizer Registration" to program the used ECM to your vehicle and keys.
Pro Tip: Cloning is almost always the better option for a used ECM. It avoids a tow bill and the uncertainty of whether a local shop can successfully program a used module, as some dealer tools can be restrictive.
Cost Breakdown
The cost to replace a 2018 Forester ECM can vary dramatically based on the parts and methods you choose.
| Item or Service | Estimated Cost | Notes |
|---|---|---|
| New OEM ECM | $780 - $1,200+ | Purchased from a Subaru dealership. Still requires programming. |
| Used OEM ECM | $100 - $250 | From a salvage yard or online retailer. Part number must match. |
| Remanufactured ECM | $300 - $600 | Availability can be limited. Often comes with a warranty. |
| Shop Labor (Replacement) | $110 - $160 | Physical swap of the module. Does not include programming. |
| Shop Labor (Programming) | $150 - $350 | Cost for a dealer or independent shop to program a new or used ECM to the car. |
| Cloning Service (Mail-in) | $100 - $250 | Makes a used ECM plug-and-play. This is in addition to the cost of the used part. |
Frequently Asked Questions (FAQ)
Can I just swap in a used ECM from another 2018 Forester?
No. The ECM is tied to the vehicle's immobilizer system. A straight swap will result in a no-start condition. The used ECM must be either cloned from your original unit or reprogrammed to your vehicle by a dealer or qualified shop.
Where is the ECM located on my 2018 Forester?
The ECM is located in the passenger-side footwell. You will need to pull back the carpet and remove a metal protective plate to access it. It is held in by a few 10mm bolts.
🎬 See this walkthrough on how to physically swap the module.Can an independent mechanic or locksmith program a new ECM?
Yes, it's possible. Many advanced independent shops and automotive locksmiths have tools like Autel or TopDon that can perform the immobilizer registration for a new or used Subaru ECM. However, not all shops have this capability, so you must confirm with them beforehand. The dealer is a guaranteed, but often more expensive, option.
What's the difference between programming and cloning?
Programming (or 'registration') involves using a scan tool to teach the vehicle to accept a new ECM. This is typically done with the module installed in the car. Cloning is a bench-top process where the data from your original ECM's memory chip is copied directly to the replacement ECM. A cloned module is an exact digital copy of your original, so the car doesn't know it's been replaced, making it plug-and-play.
Helpful Videos
![How to Change ECU [Engine Control Unit Swap // Subaru]](https://img.youtube.com/vi/-EmwuYWWbUE/mqdefault.jpg)
Technical Specifications

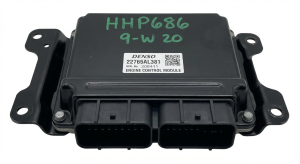

OEM Part Numbers: 22765AL390 22765AL391 22765AL392 22765AL393
Fits 2018 Subaru Forester with 2.5L Engine and Automatic (CVT) Transmission.
