2003 Suzuki Aerio ECM: Why Manual Transmission Models are Plug-and-Play
This guide covers the critical compatibility details, common water damage failures, and why programming is not required for the 2003 Aerio manual transmission ECM.
- This ECM is for the 2003 Suzuki Aerio with a MANUAL transmission only and is NOT interchangeable with automatic models.
- NO PROGRAMMING is required for this specific part. It is plug-and-play because the vehicle does not use a transponder key immobilizer system.
- The most common cause of failure is water damage from a leaking windshield cowl. Inspect for and repair any leaks before installing a replacement.
- Key symptoms of a bad ECM include blinking temperature lights, no check engine light on startup, and inability to communicate with a scan tool.
Key Takeaways for the 2003 Suzuki Aerio ECM
This Engine Control Module (ECM) is for the 2003 Suzuki Aerio with a manual transmission only. It will not work in a vehicle with an automatic transmission. The most important things to know before buying are:
- No Programming Required: Despite being a modern electronic module, this specific part for the 2003 Aerio does not require programming or flashing. The vehicle uses a non-transponder key, meaning there is no security chip to sync. It is a plug-and-play replacement.
- Water Damage is the Primary Killer: The most common cause of failure for these ECMs is water intrusion. The module is located behind the glove compartment, and leaks from the windshield cowl or A-pillar can allow water to drip directly onto it, causing corrosion and short circuits.
- Match Part Numbers: Ensure the part number on your replacement module matches one of the compatible OEM numbers (e.g., 33920-55GN1, 33920-55GN2) to guarantee a perfect fit and function.
Warning: This module is ONLY for 2003 Suzuki Aerio models equipped with a manual transmission. Part numbers for automatic transmission models (like 33920-55GQ3) look similar but are not interchangeable. Installing the wrong module will result in a no-start condition or other significant issues.
Symptoms of a Failing 2003 Aerio ECM
ECM failure on this vehicle can present with some unique and specific symptoms in addition to general performance problems.
- Blinking Temperature Lights: A key indicator of a fried ECM on the Aerio is when both the hot and cold temperature indicator lights on the instrument cluster start blinking upon turning the key.
- No "Check Engine" Light: With a failed ECM, the "Service Engine Soon" or check engine light may not illuminate at all when you turn the ignition key to the 'ON' position. This is because the computer that controls the light is not powering up.
- No Communication with Scan Tool: If you connect an OBD-II scanner to the diagnostic port and it cannot establish communication with the vehicle, it's a strong sign the ECM is dead.
- Engine Will Not Start: The engine may crank but will not start, as the ECM is not managing the fuel and spark delivery needed for combustion. 🎬 Watch: Troubleshooting a crank no start caused by a bad ECM
- Stalling or Misfiring: The engine may stall unexpectedly while driving or run very poorly with random misfires and hesitation.
Known Issues, TSBs, and Recalls
The most significant known issue for the 2003 Aerio ECM is its vulnerability to water damage. Owners and mechanics report that leaks from the windshield cowl area can allow rainwater to drip onto the ECM, which is mounted behind the glove box. This leads to corrosion on the circuit board and connectors, eventually causing the unit to fail. When replacing a water-damaged ECM, it is crucial to find and seal the source of the leak to prevent the new unit from failing as well.
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) issued by the NHTSA for the Engine Control Module on the 2003 Suzuki Aerio. Recalls for this model year pertain to the shift cable retaining clip and windshield mounting adhesive.
Buying a Used 2003 Aerio ECM: What to Check
Buying a used OEM ECM is a cost-effective solution, especially since new units are no longer available and remanufactured options can be pricey. Here’s what to look for:
- Part Number Verification: This is the most important step. Your replacement ECM must be from a 2003 Aerio with a manual transmission. Match the part number exactly. Compatible numbers include 33920-55GN0, 33920-55GN1, 33920-55GN2, and 33920-55GN3.
- Physical Inspection: Carefully inspect the casing for any signs of corrosion, especially around the seams and connector ports. Heavy rust or white, crusty deposits are red flags for water damage.
- Connector Pins: Look inside the electrical connector ports. The pins should be straight, clean, and free of any green or white corrosion. Bent or corroded pins can cause a host of problems.
- No Programming Needed: Reconfirm with the seller, but a used ECM for this specific application should be plug-and-play. If a seller claims it needs programming, they may be misinformed or selling a module for a different vehicle.
Pro Tip: When you receive your used ECM, take a moment to open the case (if possible without breaking seals) and inspect the circuit board for any signs of water stains, burns, or corrosion before installing it. A clean board is a good sign.
Cost to Replace a 2003 Suzuki Aerio ECM
The cost can vary significantly based on the source of the part. Labor for this job is relatively low, as the ECM is accessible behind the glove compartment.
🎬 Watch this walkthrough on how to install a replacement ECM| Item | Estimated Cost |
|---|---|
| New OEM | Discontinued |
| Remanufactured | $450 - $610 |
| Used OEM | $75 - $175 |
| Shop Labor | $100 - $225 (1.0-1.5 hours) |
Frequently Asked Questions (FAQ)
Do I really not need to program a replacement ECM?
That is correct. For the 2003 Suzuki Aerio with a manual transmission, the ECM does not need to be programmed or flashed. The vehicle's security system does not use a transponder chip in the ignition key, so there is no key data to sync to the module. It is a plug-and-play installation.
Can I use an ECM from an automatic transmission Aerio?
No. The ECM for the automatic transmission has different hardware and software to control the transmission's shifting. Using an automatic ECM in a manual car (or vice-versa) will not work and will likely result in a no-start condition. You must use an ECM with a matching part number for a manual transmission vehicle.
Where is the ECM located on the 2003 Suzuki Aerio?
The ECM is located in the passenger cabin, behind the glove compartment. You will need to open or remove the glove box assembly to access the module and its connectors.
What should I do to prevent my new ECM from failing?

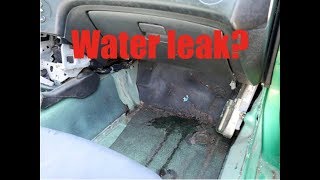

Since water damage is the primary cause of failure, you must identify and fix the water leak before installing a replacement ECM. Check the seals around the windshield, the plastic cowl panel at the base of the windshield, and any grommets on the firewall. Applying a silicone sealant to suspected leak areas can prevent future damage. 🎬 See how to identify and stop water leaks under the dash Some owners also fashion a simple plastic shield to hang over the ECM as an extra layer of protection.
Helpful Videos
Technical Specifications

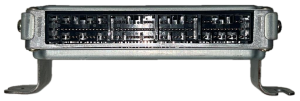

OEM Part Numbers: 33920-55GN0 33920-55GN1 33920-55GN2 33920-55GN3 3392055GN0 3392055GN1 3392055GN2 3392055GN3
Fits 2003 Suzuki Aerio with 2.0L engine and Manual Transmission (MT) only.
