2005-2006 Toyota Camry ECM: Solving Harsh Shifting and Stalling Problems

Known Issues for 2005-2006 Toyota Camry ECMs

The ECM in the 2005-2006 Camry, particularly in 2.4L 4-cylinder models, is known for a few specific issues. The most widely reported problem involves the automatic transmission, causing harsh shifting, jerking, or a noticeable "bump" when coming to a stop. This is often not a failure of the transmission itself, but rather a problem with the control logic inside the ECM. In some cases, a software update or "reflash" from a dealer can resolve this, but often the ECM itself requires replacement. While no specific Technical Service Bulletin (TSB) for the 2.4L engine was found in searches, a TSB (TC003-05) was issued for 2004-2005 V6 models for similar shift quality enhancements, indicating Toyota has addressed such issues with ECM updates in this era.

Symptoms of a Failing ECM

A failing ECM can cause a wide range of problems, from subtle to severe. Being aware of these symptoms can help you diagnose the issue before it leads to a no-start situation.

• Harsh or Erratic Shifting: The most common complaint for this specific vehicle. You may feel abrupt, jerky shifts between gears, or a noticeable jolt as the vehicle downshifts to a stop.
• Check Engine Light: An illuminated Check Engine Light is a primary indicator. Codes may point directly to an internal ECM fault or to multiple, unrelated sensor failures, which can suggest the ECM is the root cause.
• Engine Stalling or Hesitation: The engine may stall unexpectedly, either at idle or while driving. You might also notice a hesitation or stumble during acceleration.
• No-Start Condition: The engine may crank but refuse to start. This can happen if the ECM fails to control the fuel injectors or ignition coils.
• Poor Engine Performance and Fuel Economy: A malfunctioning ECM can lead to a noticeable drop in power, rough idling, and a sudden decrease in gas mileage.

Buying a Used Engine Control Module (ECM)

Purchasing a used OEM ECM is a cost-effective way to get your Camry back on the road. Because these are complex electronic components, it's critical to buy the correct part and verify its condition.

1. Verify the Part Number

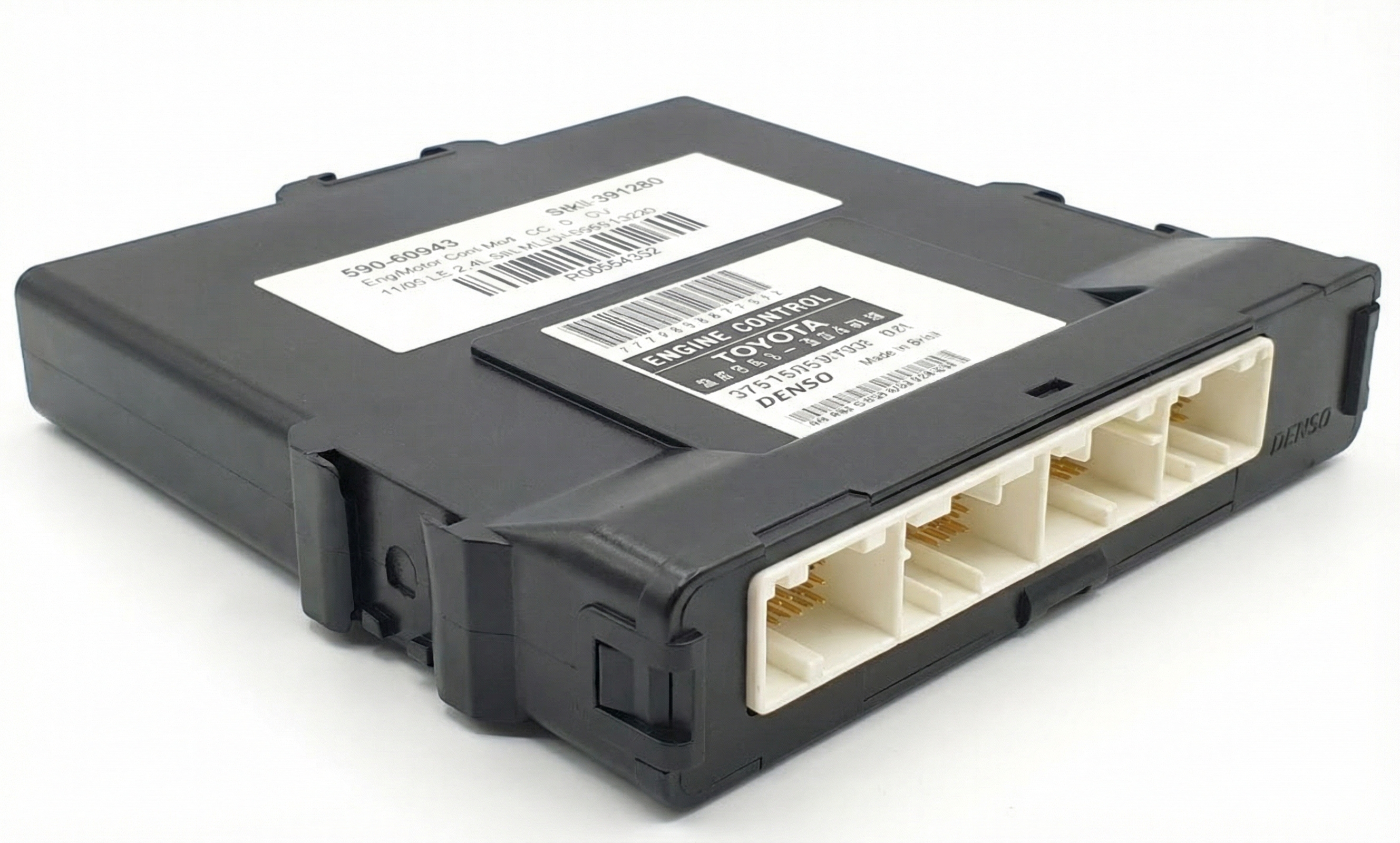

This is the most important step. The part number on your replacement ECM must match the number on your original module. The primary OEM part number for the 2005-2006 Camry with a 2.4L engine and automatic transmission is 89661-06B40. This number is printed on a sticker on the outside of the ECM case. The ECM is located behind the glove compartment.

2. Match the Emissions System

Compatibility can also depend on whether your vehicle was built to Federal or California emissions standards. This information is found on the Vehicle Emission Control Information sticker, usually located on the underside of the hood. Ensure the donor vehicle for the used ECM had the same emissions system.

3. Physical Inspection

When you receive the used ECM, inspect it carefully. Look for any signs of water damage, corrosion on the pins, or evidence that the case has been opened. A clean, well-cared-for part is more likely to function correctly.

4. Programming and Immobilizer Syncing

This ECM is NOT plug-and-play. The ECM is part of your Camry's anti-theft or immobilizer system. When you install a replacement ECM, the car will not start until your existing keys are reprogrammed to the new module. This process is often called an "immobilizer reset" or "key relearn."

• Who can do it? An automotive locksmith or an independent repair shop with advanced diagnostic tools can perform this service. 🎬 Watch: How to program your keys after an ECM swap. A dealer can also do it, but it is often more expensive. Some remanufactured ECM suppliers may provide a reset tool with their unit.
• DIY Options: Some procedures involve jumping specific pins on the OBD-II port for 30 minutes to put the system into a learning mode, but this should only be attempted by advanced DIYers as it carries risk. 🎬 See this walkthrough for the 30-minute OBD-II jumper method. Another advanced method involves physically swapping the small EEPROM chip (which stores key data) from your old ECM to the new one, but this requires precision soldering skills.

Cost to Replace a 2005-2006 Camry ECM

The cost can vary significantly depending on the type of part you choose and who performs the installation and programming.

Frequently Asked Questions (FAQ)
