2023-2024 Toyota Prius Prime ECM: A Guide to Programming, Issues, and Replacement
This in-depth guide covers the mandatory programming, known issues, and replacement costs for the Engine Control Module (ECM) in the 2023-2024 Toyota Prius Prime.
- This ECM MUST be programmed to the vehicle by a dealer or qualified shop using Toyota's Techstream software; it is not a plug-and-play part.
- The vehicle will not start after installation until the ECM is programmed to the car's immobilizer system.
- Always match the OEM part number exactly. The correct number for the 2023-2024 Prius Prime is 89661-47E30.
- This module is ONLY for the Prius Prime (PHEV) and is not interchangeable with the standard Prius hybrid ECM.
Symptoms of a Failing ECM
While widespread ECM failures on a new vehicle like the 2023-2024 Prius Prime are uncommon, it's important to recognize the signs. Many symptoms can be caused by simpler issues like a bad sensor, so proper diagnosis is key. Common signs of a faulty ECM include:
🎬 Watch: 7 common symptoms of a failing engine control module- Check Engine Light: An illuminated Check Engine Light is the most common indicator. Codes specifically pointing to internal module failure (e.g., P0600-P060A) are a strong sign.
- Engine Performance Issues: A bad ECM can cause stalling, rough idling, engine misfires, hesitation, or a sudden loss of power. This happens because the module can no longer correctly manage the air-fuel mixture or ignition timing.
- Car Won't Start: The ECM controls the fuel and spark required to start the engine. A complete failure can result in a no-start or hard-start condition.
- Poor Fuel Economy: If the ECM isn't managing the engine and hybrid system efficiently, you may notice a sudden, significant drop in gas mileage.
- Transmission Problems: The ECM communicates with the transmission controller. A faulty module can lead to erratic or rough shifting.
- Miscellaneous Electrical Issues: Problems like malfunctioning dashboard gauges or other seemingly random electrical glitches can sometimes be traced back to the ECM.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
As of early 2026, there are no specific recalls or widespread TSBs for ECM failure on the 2023-2024 Prius Prime. Most issues on these new vehicles will be covered under the factory warranty.
Pro Tip: A Technical Service Bulletin (TSB) from June 2024 (T-SB-0054-24) addresses an issue where the 12V auxiliary battery can be drained. This is caused by the plug-in charge control ECU not entering sleep mode, not the main engine ECM. The fix is a software reprogram performed by a dealer.
🎬 See why the Prius Prime 12V battery charging is flawedThere have been other recalls for the 2023-2024 Prius Prime, but they are unrelated to the engine ECM. These include issues with rear door latches and backup camera software.
Warning: This engine control module is for the Toyota Prius Prime (Plug-in Hybrid) models ONLY. It will NOT fit the standard Prius hybrid. The part numbers and software are different.
Programming and Immobilizer Requirements
This is the most critical part of replacing a Prius Prime ECM. This is NOT a plug-and-play part.
- Programming is Mandatory: A new or used ECM must be programmed (or 'flashed') to the vehicle after installation. The module contains security information, including the Vehicle Identification Number (VIN), that is tied to the car's immobilizer system.

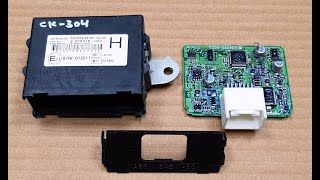

- Immobilizer Link: The ECM is a key component of the anti-theft system. If you install an unprogrammed ECM, the car will not recognize your keys and will not start. A TSB (T-SB-0013-24) details the Immobilizer and Smart Key Reset procedure, highlighting the integrated nature of these systems. 🎬 Watch: How to perform a Toyota immobilizer and Techstream reset
- Who Can Program It?: Programming requires Toyota's proprietary diagnostic software, called Techstream (or GTS+). This means you have two options:
- Toyota Dealership: The most reliable, albeit often most expensive, option.
- Qualified Independent Shop: Many independent mechanics specializing in Toyota or import vehicles invest in Techstream or compatible J2534 pass-thru devices and can perform the programming. A standard OBD-II code reader from an auto parts store cannot do this.
Buying a Used 2023-2024 Prius Prime ECM
Purchasing a used OEM ECM is a great way to save money, but requires careful attention to detail.
- Verify the Part Number: This is the most important step. You must match the OEM part number on your original module to the one you are buying. The primary known OEM part number for the 2023-2024 Prius Prime ECM is 89661-47E30. Do not install a module with a different number, even if it looks identical.
- Physical Inspection: When the part arrives, inspect it carefully. Look for any signs of physical damage, like a cracked case, bent connector pins, or evidence of water intrusion.
- Factor in Programming Costs: Remember that the price of the used part is not the final cost. You must budget for professional programming, which can add a few hundred dollars to the total repair cost.
- Why Used OEM?: A used original equipment (OEM) module that has been properly tested is often a better choice than a new aftermarket part. OEM modules are built to the manufacturer's exact specifications for durability and performance, ensuring perfect compatibility once programmed.
Replacement Cost Comparison
Prices can vary based on location and supplier. The following is an estimate of costs as of early 2026.
| Part / Service | Estimated Cost |
|---|---|
| New OEM (Dealer) | $565 - $865 |
| Used OEM (Recycled) | $250 - $500 |
| Shop Labor (Physical Install & Programming) | $150 - $300 |
Frequently Asked Questions (FAQ)
Can I install the ECM myself and drive to the dealer for programming?
No. Once you install the replacement ECM, the vehicle's immobilizer will activate, and the car will not start. It will need to be towed to the dealer or shop for programming.
Does the part number have to match exactly?
Yes. For a complex electronic module like the ECM, the part number must be an exact match to ensure it has the correct hardware and base software for your vehicle's specific options and systems. The correct number for the 2023-2024 Prius Prime is 89661-47E30.
Can a locksmith program this ECM?
It is unlikely. While some advanced automotive locksmiths may have the necessary tools, most do not. Programming this module typically requires dealer-level diagnostic software (Toyota Techstream). Your best bet is a Toyota dealer or a specialized import repair shop.
Will a bad ECM cause a 'Check Hybrid System' warning?
Yes, it's possible. A failing ECM can disrupt communication between the various hybrid components, which could trigger a general 'Check Hybrid System' warning message. However, this warning can also be caused by many other issues, so a diagnostic scan is necessary to get the specific trouble codes.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89661-47E30 8966147E30
Description: Computer, Engine Control. For Plug-in Hybrid (PHEV) models.
