2015 Toyota RAV4 ECM: Programming, Problems, and Replacement

Symptoms of a Failing 2015 RAV4 ECM

A failing Engine Control Module can cause a wide range of confusing and seemingly unrelated problems. Because the ECM controls so many different systems, its failure can mimic other issues. Be on the lookout for these common signs:

• Check Engine Light: This is often the first and most obvious sign. The light may be steady or flashing.
• Engine Stalling or Misfiring: The engine may stall unexpectedly, run rough, or misfire, especially under load.
• No-Start Condition: The engine may crank but refuse to start because the ECM is not commanding the fuel injectors or ignition coils to fire.
• Poor Engine Performance: You might notice a significant loss of power, hesitation during acceleration, or a sudden drop in fuel economy.
• Transmission Shifting Problems: The ECM works closely with the transmission control module. A faulty ECM can lead to harsh shifting, getting stuck in gear, or other transmission-related issues.
• No Communication with Scan Tool: If a diagnostic scan tool cannot communicate with the vehicle, it often points to a major problem with the ECM itself.

Common Diagnostic Trouble Codes (DTCs)

While many codes can indicate an ECM problem, codes in the P0600-P06FF range specifically relate to internal computer processor and memory errors. Also, a flood of unrelated communication codes (U-codes) can suggest the ECM is failing and not communicating correctly with other modules on the vehicle's network.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While the 2015 RAV4 has been subject to several recalls, none directly target the main Engine Control Module for widespread failure. However, a few related items are worth noting:

• NHTSA Recall 15V144000: This recall was for a potential defect in the Electric Power Steering (EPS) ECU, a separate computer, which could lead to a loss of power steering assist.
• NHTSA Recall for 2013-2018 RAV4s: A recall was issued because certain replacement 12-volt batteries could shift if not properly secured, potentially causing the positive terminal to short against the hold-down bracket and create a fire risk. While not an ECM issue, a voltage surge from a short circuit could potentially damage sensitive electronics like the ECM.

No specific Technical Service Bulletins (TSBs) for widespread ECM failure on the 2015 model year were found during research. However, Toyota has issued general TSBs regarding the proper procedure for flash reprogramming ECUs using their Techstream software.

Buying a Used Engine Control Module for a 2015 RAV4

Purchasing a used OEM ECM is a cost-effective way to get your RAV4 back on the road. Because these are complex electronic components, there are critical factors to consider to ensure you get the right part and that it will function in your vehicle.

Part Number is Everything: Match It Exactly

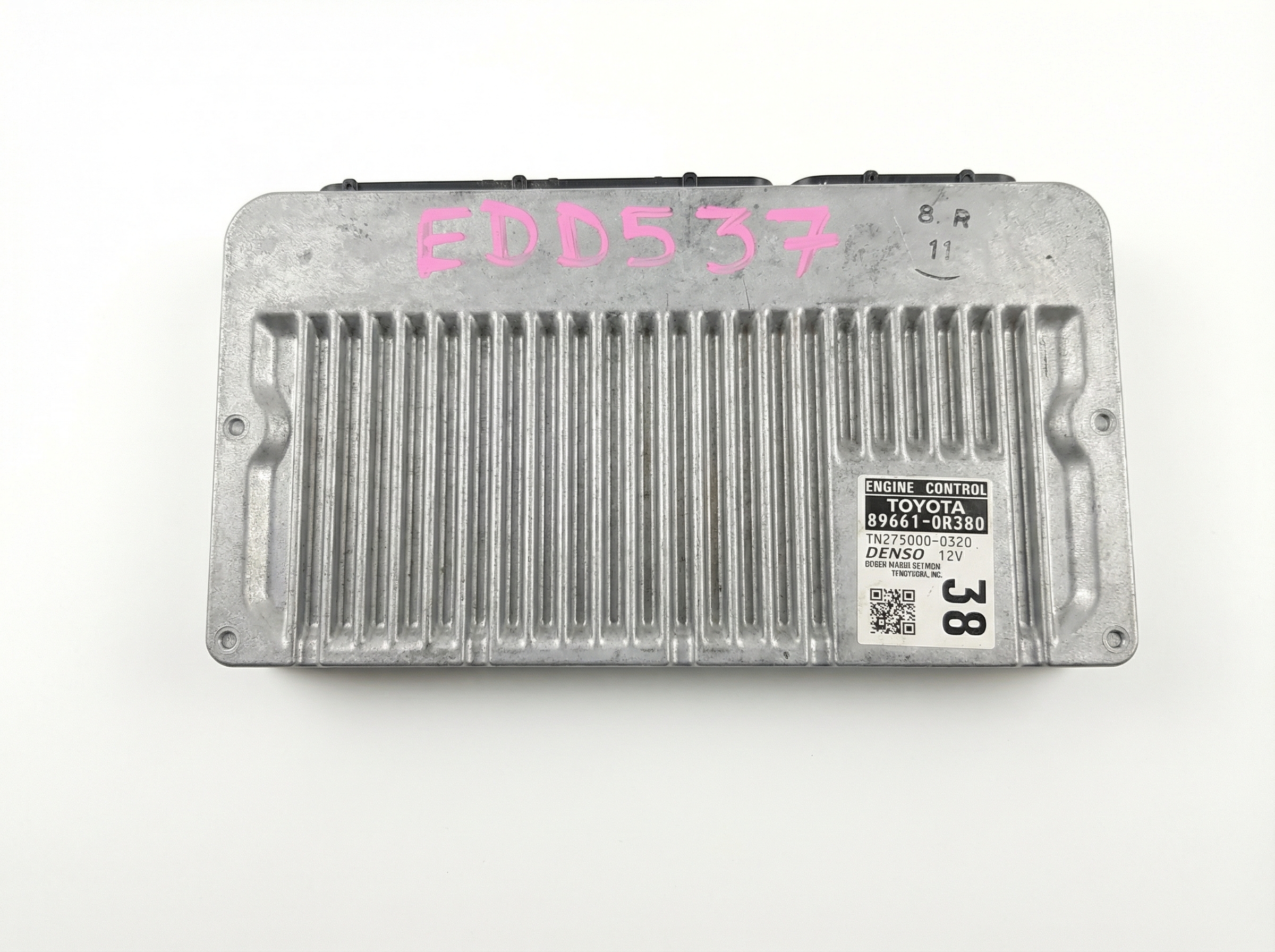

The single most important step is to match the part number on your original ECM with the part number on the used unit. The primary part numbers for this vehicle are 89661-0R470, 89661-0R471, and 89661-0R472. The later numbers (ending in 471 and 472) are newer revisions that supersede the older ones. Any of these three should be compatible if your original module is one of them. Do not install a module with a completely different part number series (e.g., 89661-42Uxx), as these may be for different drivetrains or model years and will not work.

Programming is NOT Optional

Who Can Program a Replacement ECM?

You have a few options for programming, and a dealer visit is not always required:

• Toyota Dealership: A dealer can always program a new or used ECM using their proprietary Techstream software. This is the most reliable but often most expensive option.
• Independent Repair Shop: Many modern repair shops have the necessary tools, like a J2534 pass-thru device and a subscription to Toyota's Techstream software, to perform the programming.
• Automotive Locksmith: Specialized automotive locksmiths are often equipped to handle immobilizer and ECU programming. They may be able to perform an "ECU reset" or use EEPROM programming to make the used module accept your vehicle's keys.
• Mail-In Services: Some companies offer mail-in programming where you send them your original and replacement ECMs, or just the replacement with your VIN, and they program it to be plug-and-play.

Physical Inspection Checklist

When your used ECM arrives, inspect it carefully before installation:

• Check for Corrosion: Look for any white or greenish powder on the case or in the connector pins. This indicates water damage, and the part should be returned.
• Inspect Connectors: Ensure none of the pins are bent, broken, or pushed in.
• Examine the Case: Look for pry marks or signs that the case has been opened, which could indicate a failed repair attempt.

Replacement Cost Comparison

The cost of replacing an ECM can vary significantly based on the type of part you choose.

Labor Costs: Expect to pay for 1-2 hours of labor for the physical replacement and another 1-2 hours for diagnostics and programming. At a typical shop rate of $125-$200 per hour, total labor can range from $250 to $600.

Step-by-Step Replacement Overview

The physical replacement of the ECM is straightforward. 🎬 See this walkthrough on how to physically replace the module The difficult part is the programming that must follow.

1. Disconnect the Battery: Always disconnect the negative battery terminal before working on any electronic components.
2. Locate the ECM: On the 2015 RAV4, the ECM is located in the engine bay, on the driver's side, behind the headlight assembly.
3. Disconnect Wiring Harnesses: Carefully unplug the electrical connectors from the ECM. They have locking tabs that must be depressed.
4. Remove the Old ECM: Unbolt the module from its mounting bracket.
5. Install the New ECM: Bolt the replacement ECM into place and securely reconnect the wiring harnesses.
6. Reconnect the Battery: Reattach the negative battery terminal.
7. Program the ECM: The vehicle is now ready to be towed or have a mobile technician come to program the replacement ECM to the immobilizer system. The engine will not start until this step is complete.
🎬 Watch: What to do if your Toyota won't start after a swap
