2019-2020 Toyota RAV4 ECM: Programming, Part Numbers, and Start-Stop Failures

Symptoms of a Failing ECM

A problem with the ECM can cause a wide range of issues, from a simple warning light to a car that won't start at all. Because the ECM controls so many different systems, symptoms can sometimes be mistaken for other problems. Look for these common signs of failure:

• Check Engine Light: This is often the first and most obvious sign. A scan with an OBD-II tool is necessary to retrieve the specific fault codes.
• Engine Performance Problems: You may experience rough idling, engine misfires, stuttering, or a noticeable loss of power and acceleration.
• Car Will Not Start: The ECM controls the signals for fuel and spark. If it fails completely, the engine may crank but will not start. In some cases, it may stall unexpectedly while driving.
• Poor Fuel Economy: A sudden, unexplained drop in gas mileage can be caused by the ECM failing to manage the air-fuel ratio correctly.
• Transmission Shifting Issues: The ECM communicates with the transmission controller. A faulty ECM can cause harsh shifting, delayed gear changes, or other erratic transmission behavior.
• Associated OBD-II Codes: While many codes can point to an ECM issue, codes specifically for internal processor failure (like P0606), knock control CPU failure (P1605), or general ECM malfunction (P1633) are strong indicators. Other codes related to sensors, fuel trim (P0171, P0174), or misfires (P0300-P0304) may also be present if the ECM is the root cause.

Known Issues, TSBs, and Recalls

The 2019-2020 RAV4 has several documented issues related to the engine and its electronics. It's important to determine if your vehicle's symptoms are from a failed ECM or one of these specific, repairable problems.

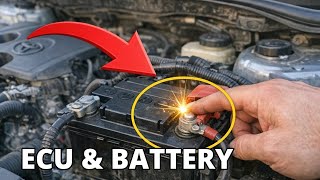

TSB T-SB-0006-21: Engine Fails to Restart After Auto Stop-Start

A widely reported issue on 2019-2021 non-hybrid RAV4s involves the engine shutting off at a stoplight (as part of the normal stop-start system) and then failing to restart. This is caused by a combination of two factors: overly sensitive logic in the ECM software that aborts the restart if fuel pressure isn't perfect, and a weakening 12-volt battery that can't supply the precise voltage needed during the restart sequence. The official fix is for a Toyota dealer to perform a software update (reflash) on the ECM and to load-test the battery, replacing it if it fails.

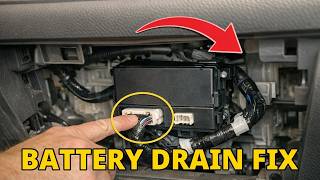

Parasitic Battery Drain Class Action

A class-action lawsuit was filed concerning 2020 RAV4 models, alleging a defect that causes a “parasitic” drain on the battery while the vehicle is turned off. The lawsuit claims that certain electronic control modules fail to prevent this power draw, leading to prematurely dead batteries and potentially stranding drivers. If your RAV4 has a recurring dead battery, this underlying issue could be the cause, rather than a completely failed ECM.

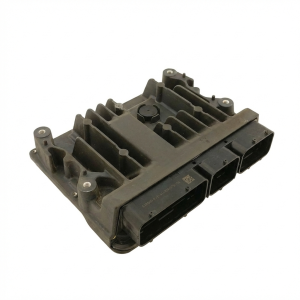

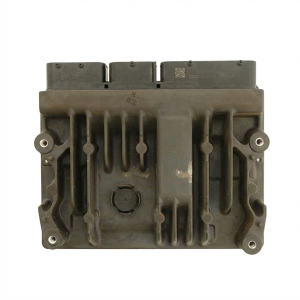

Buying a Used 2019-2020 RAV4 ECM: What You Must Know

Buying a used ECM is a cost-effective option, but it requires careful attention to detail. Unlike a simple mechanical part, you cannot just swap it in. Compatibility is everything.

• Match the Part Number Exactly: The most critical step is to match the OEM part number on your original ECM with the number on the used unit. There are dozens of different ECMs for this RAV4 generation based on build location, drivetrain (AWD/FWD), engine (gas/hybrid), and trim level. The part numbers provided in your vehicle's data (89661-42L90, 89661-42L91) are specific to Japan-built, All-Wheel Drive, non-hybrid models in Adventure, Limited, or TRD Off-Road trims. Do not substitute.
• Verify Build Location (VIN): The first letter of your VIN tells you where the vehicle was built. A 'J' indicates it was built in Japan. The specific ECMs for this guide are for Japan-built models. North American-built models (VIN starting with '2') use different part numbers.
• Inspect for Damage: When you receive the used ECM, check the housing for any cracks or signs of water intrusion. Pay close attention to the connector pins—they should be straight, clean, and free of corrosion. A seller's photo of a chipped plug is a red flag.
• Programming is Required: A used ECM will not work without being programmed to your vehicle's VIN and immobilizer system. Factor the cost of programming into your budget.

Programming and Immobilizer Requirements

This is the most important and often overlooked step of replacing a modern ECM. You cannot simply install a replacement ECM and expect the car to start.

The ECM is linked to the vehicle's immobilizer system, which is an anti-theft feature that prevents the engine from starting without a recognized key. When you install a different ECM, the immobilizer system sees a mismatch and will disable the ignition. The vehicle will crank but will not start.

To resolve this, the replacement ECM must be programmed to your specific vehicle. This process involves:

1. Connecting to Toyota's Software: A technician uses a diagnostic tool (like a J2534 device) and a subscription to Toyota's Technical Information System (TIS) to access the Techstream software.
2. Initializing the Immobilizer: The technician performs a procedure to sync the replacement ECM with your vehicle's existing immobilizer and keys.
3. Updating Software: The technician will flash the ECM with the latest calibration file from Toyota. This ensures the best performance and incorporates any fixes, like the one for the start-stop issue.

This procedure must be done by a Toyota dealership or a well-equipped independent repair shop that specializes in modern vehicle electronics and has the necessary tools and subscriptions. It is not a DIY-friendly task for the average mechanic.
