2006 Toyota Sequoia ECM: A Guide to Replacement, Programming, and 4x2 vs. 4x4 Issues
This guide covers the essential details for diagnosing and replacing the Engine Control Module (ECM) in your 2006 Toyota Sequoia, including critical programming and compatibility information.
- A replacement ECM for a 2006 Sequoia MUST be programmed to the vehicle's immobilizer system to start the engine.
- You must match the ECM to the vehicle's drivetrain; 4x2 and 4x4 models use different ECMs.
- Always match the OEM part number exactly. The primary numbers for 4x2 models are 89661-0C740 and 89661-0C741.
- Programming can be done by a Toyota dealer, a qualified automotive locksmith, or through a mail-in service.
Symptoms of a Failing 2006 Sequoia ECM
A failing Engine Control Module can cause a wide range of problems, from minor annoyances to critical failures that leave you stranded. Recognizing the signs early can save you from a difficult diagnosis.
🎬 Watch: A detailed breakdown of common bad ECM symptoms.- Check Engine Light: This is the most common symptom. An illuminated Check Engine Light with communication-related fault codes (like P0600-P0607) or codes that point to multiple unrelated sensor failures can indicate an ECM issue.
- Engine Performance Problems: A bad ECM can lead to rough idling, engine stuttering or misfiring, a sudden drop in fuel economy, and loss of acceleration. This happens because the ECM can no longer accurately control the air-fuel mixture or ignition timing.
- No-Start or Intermittent Starting: One of the most serious symptoms is the vehicle refusing to start or only starting sporadically. This can happen if the ECM fails to send the proper signals to the fuel pump or ignition system, or if it loses communication with the immobilizer.
- Transmission Shifting Issues: The ECM works with the transmission control module. A faulty ECM can send incorrect data, leading to rough, erratic, or delayed shifting.
- Inability to Communicate with Scan Tool: If a diagnostic scan tool cannot connect to the ECM, it's a strong sign that the module itself has failed.
Warning: Many of these symptoms can also be caused by simpler, less expensive problems like a bad sensor, faulty wiring, or a low battery. It's important to perform a full diagnosis before condemning the ECM.
Known Issues, TSBs, and Recalls
While there are no specific recalls for the ECM on the 2006 Toyota Sequoia, there are some related service bulletins and common issues to be aware of.
- TSB T-TT-0362-15 & T-TT-0086-11: These technical service bulletins note that the vehicle may be difficult to start or have a low/rough idle after the battery has been disconnected or power to the ECM has been interrupted. This is considered a normal characteristic and may require an idle relearn procedure, not necessarily an ECM replacement.
- No Major Recalls: Searches of the National Highway Traffic Safety Administration (NHTSA) database show several recalls for the 2006 Sequoia, primarily for airbags and ball joints, but none directly related to the Engine Control Module.
- Fuse Issues: Some owners report issues with the 10-amp ECU-IG fuse repeatedly blowing, which can indicate a short circuit in one of the many systems powered by that fuse, not necessarily a bad ECM itself.
Buying a Used 2006 Sequoia ECM: Critical Checks
Purchasing a used OEM ECM is a cost-effective alternative to a new unit, but careful verification is essential to avoid compatibility problems. Here’s what you must check:
- Match the Part Number EXACTLY: The most critical step is to match the part number on your original ECM with the used replacement. The primary part numbers for the 2006 Sequoia are 89661-0C740 and its successor, 89661-0C741. Other numbers may exist for different configurations. Do not install an ECM with a different part number without confirming it is a direct replacement.
- Verify Drivetrain Configuration (4x2 vs. 4x4): This is a major compatibility trap. The ECM for a two-wheel drive (4x2) model is different from a four-wheel drive (4x4) model. The provided part numbers 89661-0C740 and 89661-0C741 are specified for 4x2 models. A 4x4 model will use a different part number, such as 89661-0C751. Installing the wrong one will result in system malfunctions.
- Physical Inspection: When you receive the used ECM, inspect it for any signs of physical damage, such as a broken case, bent pins on the connectors, or evidence of water intrusion or corrosion. The ECM is located behind the glove box.
- VIN Programming is Required: A used ECM will not be a simple plug-and-play installation. It must be programmed to your vehicle's Vehicle Identification Number (VIN) and have its immobilizer system synchronized with your keys.
ECM Replacement and Programming Requirements
Replacing the ECM is physically straightforward, but the electronic programming is complex and mandatory for the vehicle to run.
Warning: You cannot simply swap the ECM from another 2006 Sequoia and expect the vehicle to start. The engine will crank but will not run due to the anti-theft immobilizer system.
Programming and Immobilizer Link
The ECM stores the security information for the vehicle's key transponders. When a new or used ECM is installed, it does not have the correct key data and will prevent the engine from starting as an anti-theft measure.
To make a replacement ECM work, it must be programmed or synchronized with the vehicle's immobilizer system. This process typically requires specialized tools and knowledge:
- Toyota Dealership: A Toyota dealer can program the new ECM using their proprietary Techstream software. This is the most reliable, albeit often most expensive, option.
- Automotive Locksmith: Many professional automotive locksmiths have the tools and expertise to perform an "ECU reset" or "reflash." This involves reading the data from the immobilizer chip (EEPROM) inside the module and programming new keys to it. This can be a more affordable option than the dealership. 🎬 Watch: How a locksmith performs an immobilizer reflash and clone.
- Mail-In Services: Several companies offer mail-in programming services. You send them your replacement ECM (and sometimes your original), and they program it with your vehicle's VIN and key information before sending it back. This makes the unit plug-and-play upon return, though key reprogramming may still be needed.
Pro Tip: Before sending your ECM for programming, confirm with the service provider exactly what they need. Some may require your original module to clone the data, while others can work with just the VIN.
Cost to Replace a 2006 Sequoia ECM
The cost can vary significantly based on the part source and labor for programming.
| Item | Estimated Cost | Notes |
|---|---|---|
| New OEM ECM | $880 - $1,200 | Price for the part only, from a Toyota dealership. |
| Used OEM ECM | $75 - $250 | Price from online marketplaces and salvage yards. Requires programming. |
| Remanufactured/Programmed ECM | $200 - $500 | From specialty electronics rebuilders. Often comes pre-programmed to your VIN. |
| Shop Labor (Physical Install) | $80 - $120 | The physical swap is quick, typically less than one hour of labor. |
| Shop Labor (Programming) | $100 - $250 | Cost for a dealer or independent shop to program the ECM to the vehicle. |
Frequently Asked Questions (FAQ)
Do I absolutely need to program a replacement ECM for my 2006 Sequoia?
Yes, programming is mandatory. The replacement ECM, whether new or used, must be synchronized with your vehicle's immobilizer system and keys. Without this step, the engine will not start.
Where is the ECM located on a 2006 Toyota Sequoia?
The Engine Control Module (ECM) is located inside the cabin, behind the glove box compartment. You will need to remove the glove box assembly to access it.
🎬 See this walkthrough on how to locate and remove your ECM.Can a locksmith program a new ECM instead of the dealer?
Yes, many modern automotive locksmiths have the equipment to re-flash or program Toyota ECMs. This can be a viable and sometimes more affordable alternative to a dealership visit. Always confirm with the locksmith that they can service your specific year and model.
What's the difference between a 4x2 and 4x4 ECM?
The ECMs are different because the 4x4 model's computer needs to communicate with and control the four-wheel-drive system components, such as the transfer case actuator. A 4x2 ECM lacks this programming. Using the wrong module will cause system errors and likely a non-functional 4WD system. You must match the ECM to your vehicle's drivetrain.
Helpful Videos
Technical Specifications

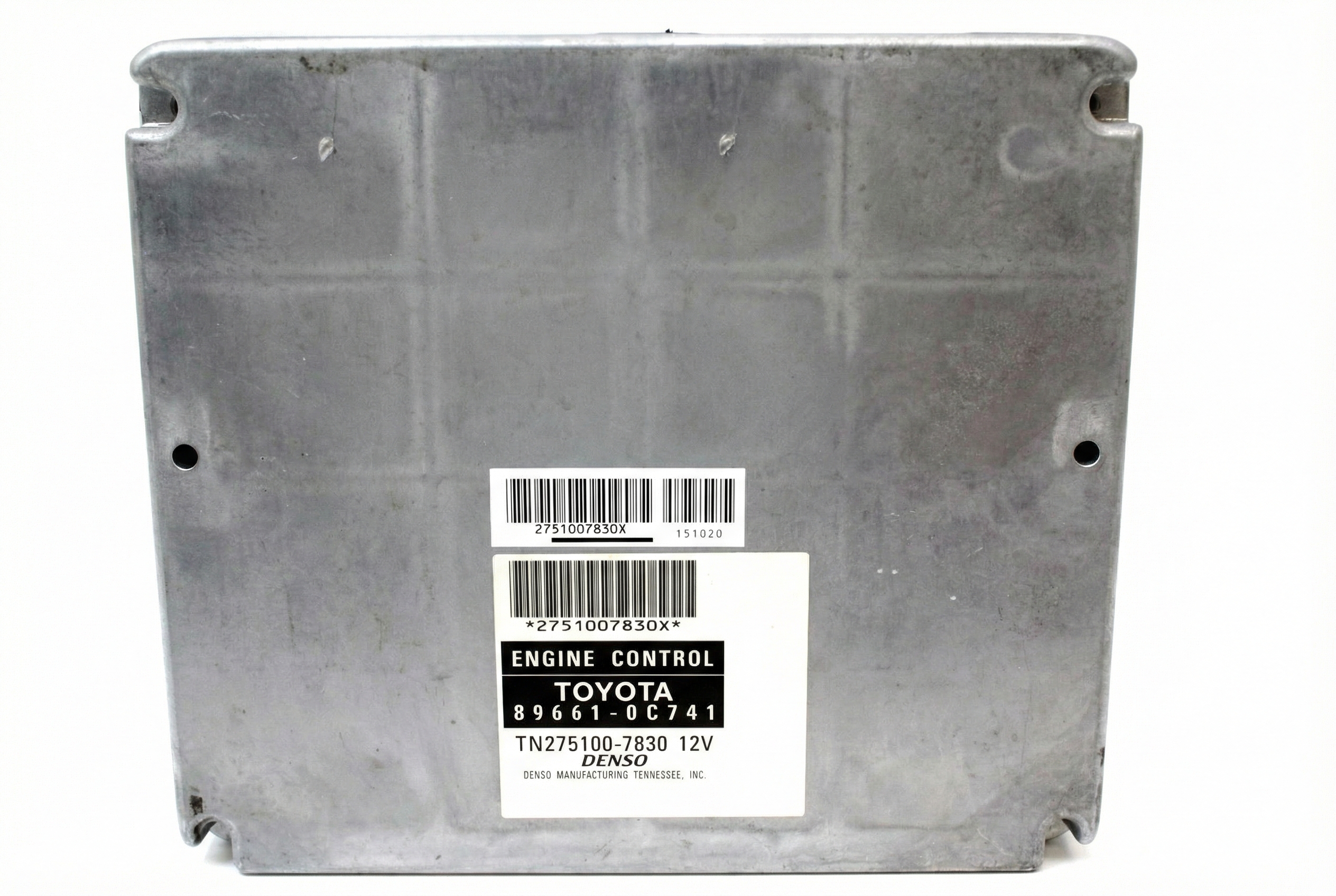

OEM Part Numbers: 89661-0C740 89661-0C741 89661-0C750 89661-0C751 89661-0C490
Location: Inside the cabin, behind the glove box assembly.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
