2005 Toyota Tacoma 2.7L ECM: Your Guide to Programming, Part Numbers, and Failure Symptoms

Symptoms of a Failing 2005 Tacoma ECM

ECM failure on this generation of Tacoma is not common, but it can happen. When it does, symptoms can sometimes be confusing and mimic other problems, like a bad sensor. Always perform a thorough diagnosis before condemning the computer. 🎬 Watch: 7 common symptoms of a failing engine control module. Key warning signs include:

• Check Engine Light: This is often the first sign. Codes may point directly to an internal ECM fault (P0601, P0606, P0607) or show up as persistent errors for sensors that have already been replaced.
• Engine Will Not Start: A classic symptom is that the engine will crank over but will not start. This often happens because a failed ECM is not commanding the fuel injectors or ignition coils to fire.
🎬 See how to troubleshoot a Toyota ECM crank-no-start condition.
• Erratic Engine Behavior: The engine may stall unexpectedly, run rough, idle poorly, or misfire. This can be due to the ECM sending incorrect signals for fuel and spark.
• Poor Performance and Fuel Economy: You might notice a sudden drop in gas mileage or a feeling that the truck has less power and poor acceleration.
• Other Electrical Issues: In some cases, a failing ECM can cause strange behavior in dashboard gauges or other electronic accessories.

Known Issues, Recalls, and TSBs

As of early 2026, there are no active recalls or widespread Technical Service Bulletins (TSBs) issued by Toyota specifically for Engine Control Module failure on the 2005 Tacoma. Other recalls exist for this model year concerning issues like the rear leaf springs and accelerator pedal, but they are unrelated to the ECM. While ECM failure is rare, when it does occur, it is typically due to internal electronic issues rather than a specific design flaw covered by a recall.

Buying a Used 2005 Tacoma ECM: What You Must Know

This is the most critical section for anyone buying this part. A simple mistake here will result in a part that will not work. Follow these steps carefully.

1. Confirm Compatibility: The 'Big Three'

This ECM is highly specific. A used module will only work if it comes from a donor vehicle with the exact same configuration. For this part, you must match:

• Engine: 2.7L 4-Cylinder (2TR-FE)
• Drivetrain: Rear-Wheel Drive (RWD / 4x2)
• Transmission: Manual Transmission

An ECM from a V6, an automatic transmission, or a 4x4 model will not work in your vehicle. There is no way to reprogram it to work; you must start with a hardware-compatible unit.

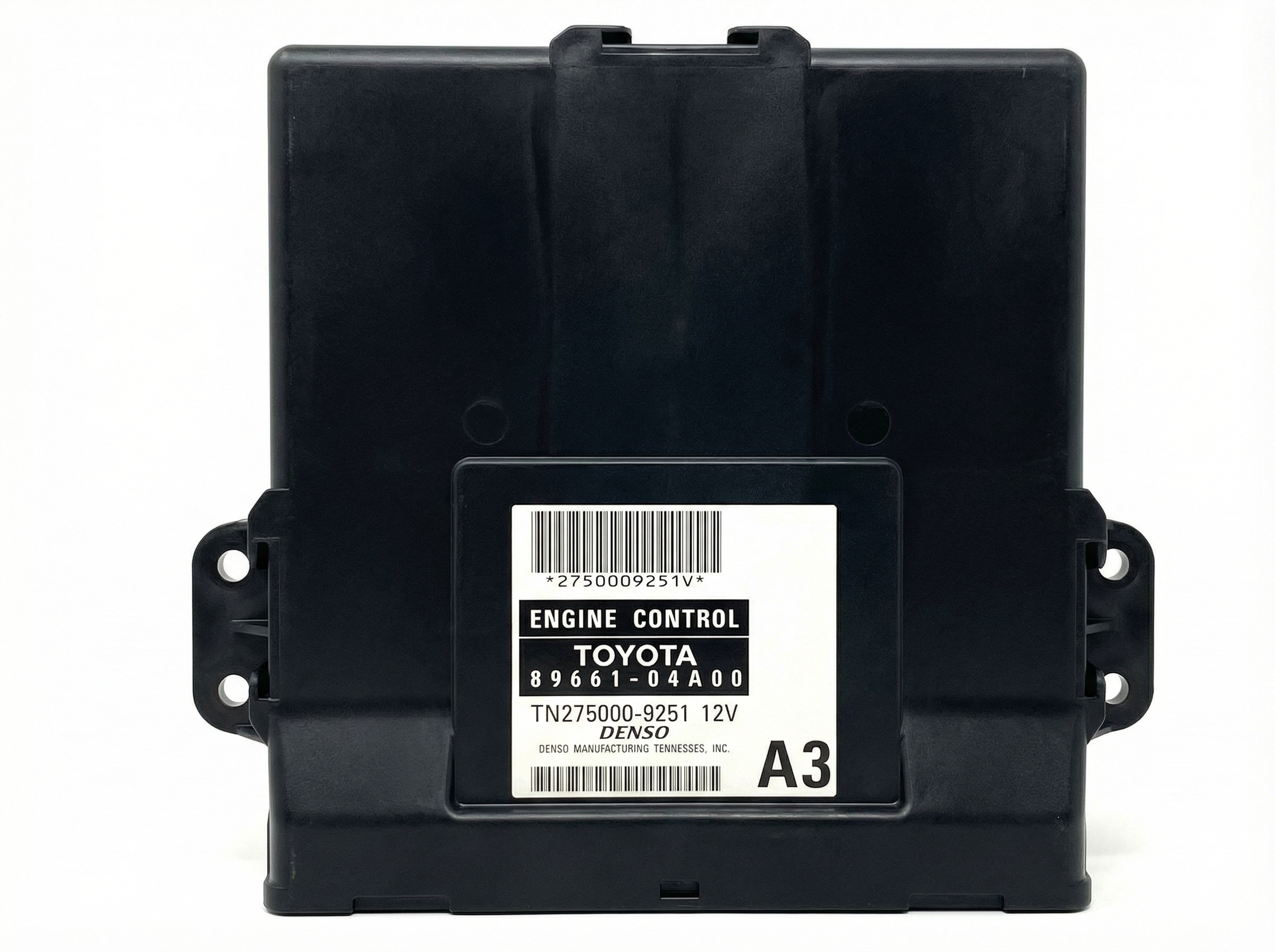

2. Match the Part Number

The surest way to guarantee compatibility is to match the OEM part number. The original ECM has a sticker on its case with the number printed clearly. The primary part numbers for this application are 89661-04A00 and 89661-04A01. Both of these numbers were later superseded by Toyota to part number 89661-04A02. Any of these three numbers should be compatible.

3. Plan for Programming (Immobilizer)

You cannot simply swap this ECM and expect the truck to start. The ECM is a core part of the vehicle's anti-theft system, known as the immobilizer. The replacement ECM must be programmed to your vehicle's unique Vehicle Identification Number (VIN) and synchronized with your existing keys. Without this step, the immobilizer will prevent the engine from starting. When buying a used ECM, you have a few options for programming:

• Dealer Programming: A Toyota dealership can program a used ECM to your truck using their Techstream software. This is reliable but often the most expensive option.
• Locksmith/Independent Shop: Some independent shops and automotive locksmiths have the advanced scan tools and software required to perform this programming.
• Pre-Programmed 'Plug-and-Play' Modules: Many online sellers of used and remanufactured ECMs offer a service where you provide your VIN at the time of purchase. They will program the module before shipping it to you, making the installation truly plug-and-play. This is often the best option for DIY repair.

Cost Breakdown for a 2005 Tacoma ECM

Prices can vary based on condition and supplier. Here is a general estimate of what to expect:

Step-by-Step Replacement Guide

The physical replacement of the ECM is straightforward. The difficulty lies in the required programming.

1. Disconnect the Battery: Before working on any electronic component, disconnect the negative terminal of the vehicle's battery.
2. Access the ECM: The ECM is located on the passenger side of the cabin, behind the glove box. Open the glove box, press in on the sides to release the stops, and let it hang down completely.
3. Remove the ECM: You will see the metal case of the ECM. Unplug the electrical connectors. They have locking tabs that must be depressed to be removed. Then, unbolt the mounting screws or nuts holding the ECM bracket in place and carefully remove the module from the vehicle.
🎬 Watch this quick walkthrough of the physical ECU replacement process.
4. Install the New ECM: Place the replacement ECM into the mounting bracket and secure it with the bolts. Reconnect the electrical harnesses, ensuring each plug is fully seated and clicks into place.
5. Final Steps: Re-install the glove box and reconnect the battery terminal. At this point, if the module was not pre-programmed, the vehicle will not start and will need to be towed to a dealer or shop for programming. If you used a plug-and-play module, the truck should now start and run correctly.
