2021-2022 Volkswagen ID.4 Gateway Module: The Truth About Programming and Failures

Understanding the Central Gateway Module in an EV Context

In a gasoline-powered car, the Engine Control Module (ECM) is the brain of the engine. However, in an electric vehicle like the 2021-2022 VW ID.4, there is no engine. The component that serves a similar 'central computer' role is the Central Gateway Module, sometimes referred to by its part number, such as 1EA937012. This module is the hub of the vehicle's Controller Area Network (CAN bus), managing communication between all other electronic modules. Think of it as the main server and router for the entire car; if it fails, different parts of the vehicle can no longer talk to each other, leading to widespread and confusing symptoms.

Symptoms of a Failing Gateway Module

A failing gateway module often causes a cascade of seemingly unrelated electronic issues. Because it controls communication, its failure can mimic the failure of many other components. Owners may experience:

• Multiple, Random Warning Lights: The dashboard may light up with errors for ABS, airbags, driver-assist systems, and more, even if those systems are mechanically sound.
• Loss of Key Features: Functions like headlights, driver-assist systems, or the display of odometer and charging information may stop working.
• Communication Failure with Diagnostic Tools: A mechanic using a standard OBD-II scanner may find they cannot communicate with most or all of the vehicle's modules. This is a classic sign that the gateway, the central point of communication, is offline.
• Infotainment System Malfunctions: The central screen may fail to boot, reset randomly, or display errors like "Component Protection is active."
• No-Start or Power-Down Scenarios: In severe cases, a complete gateway failure can prevent the vehicle from powering on or cause it to shut down unexpectedly.
🎬 Watch: Real-world example of the ID.4 electrical system failure warning.

These symptoms are often triggered or worsened by temperature changes or moisture. On other VW models, water intrusion into the gateway module area is a known cause of failure, leading to corrosion on the circuit board.

Known Issues, Recalls, and Software Updates for 2021-2022 VW ID.4

Early model year ID.4s have been subject to numerous software updates and recalls, many of which relate to the vehicle's complex electronic systems. While not always a direct failure of the gateway module hardware, these issues highlight the critical role of software in the vehicle's operation.

• Software-Related Recalls: Volkswagen has issued recalls for 2021-2023 ID.4 models due to software issues causing the instrument panel and center displays to not boot up or to reset sporadically. This can lead to a loss of the speedometer and rearview camera image.
• Software Update Campaigns: VW has performed extensive dealer-installed software updates (such as the update to version 3.1) to fix bugs, improve performance, and add features like Auto Hold. These updates can be complex, sometimes requiring replacement of certain modules if they fail during the flashing process. Many owners of early ID.4s have reported numerous bugs and glitches that were later addressed by these software campaigns.
• Door Handle Recall: A significant recall involves water entering the door handle electronics, which can cause the doors to open unexpectedly. While not directly the gateway module, it demonstrates the vehicle's sensitivity to electronic component failures caused by moisture.

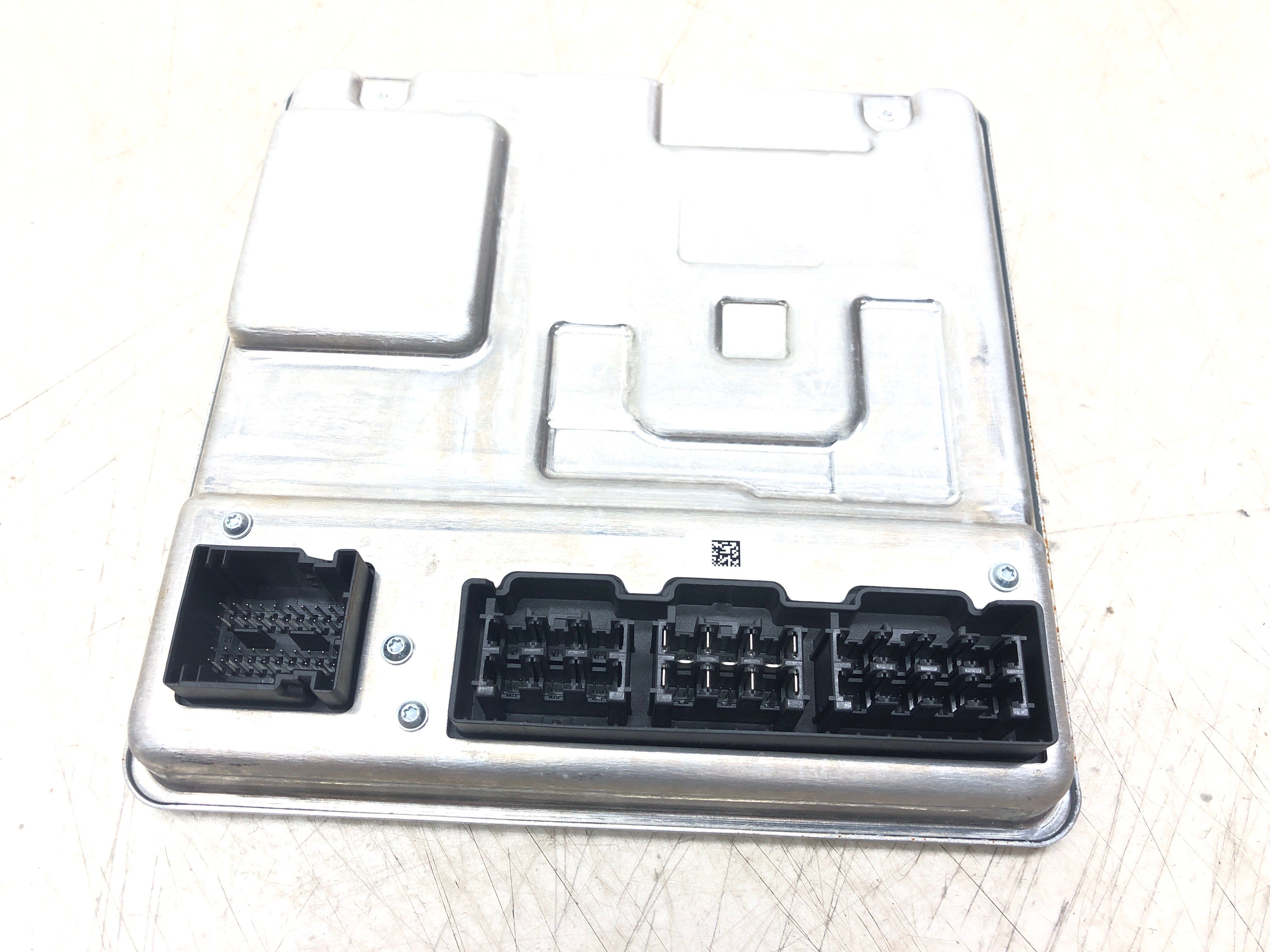

Buying a Used Gateway Module

Purchasing a used gateway module for a 2021-2022 ID.4 is feasible but requires careful consideration and planning. The primary challenge is not the part itself, but the mandatory programming.

1. Verify the Part Number: Match the part number on your original module exactly. Common part numbers include 1EA937012, 1EA937012J, and 1EA937012L. While newer revisions may be compatible, an exact match is the safest bet.
2. Physical Inspection: When the used part arrives, inspect it for any signs of physical damage, especially water damage or corrosion on the connectors. Do not install a module that shows signs of moisture intrusion.
3. Budget for Programming: The cost of the used module is only part of the total expense. You MUST factor in the cost of programming. This service can only be performed by a VW dealer or a highly specialized independent shop with official ODIS software and a GeKo online account for security access. This is not a DIY task.
4. Why Used OEM is a Good Choice: For a complex electronic part like this, a used OEM module is often a more reliable choice than a new, unproven aftermarket version (if one were even available). Used OEM parts have a known history of functioning within a vehicle's ecosystem.

What is Component Protection?

Component Protection is an anti-theft system used by Volkswagen and other VAG brands. It electronically links major control modules (like the gateway, infotainment system, etc.) to the original vehicle's VIN. When you install a module from another car, the system detects a mismatch and puts the component into a limited-functionality mode until the protection is removed. This removal process, often called 'adapting' the module, requires an online connection to VW's servers and can only be done with authorized dealer tools (ODIS). An independent mechanic with a standard scanner cannot perform this task.

Cost Breakdown

The cost to replace the gateway module involves the part itself and the critical programming labor. Prices are estimates and can vary by location and supplier.
